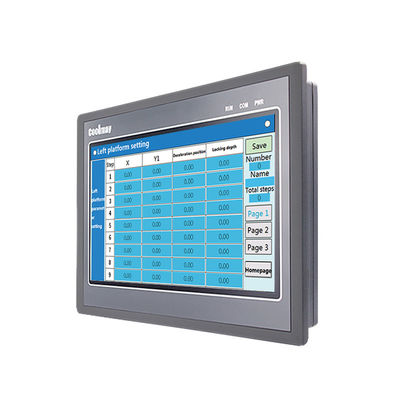

QM3G Series 10In HMI PLC Controller Portrait Display Temperature

Place of Origin CHINA, GONGDONG
Brand Name Coolmay
Certification CE
Model Number QM3G-100FH
Minimum Order Quantity 1 peice
Price Negotiable
Packaging Details carton
Delivery Time 3-8 works days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 15000 Units Per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Input 24VDC COM Port 1x Mini USB, 1x RS232, 1x RS485
Dimension 275*194*36mm RAM 64MB
High Light

10In HMI PLC Controller


Portrait Display HMI PLC Controller


Portrait Display HMI PLC Combo

Leave a Message
Product Description

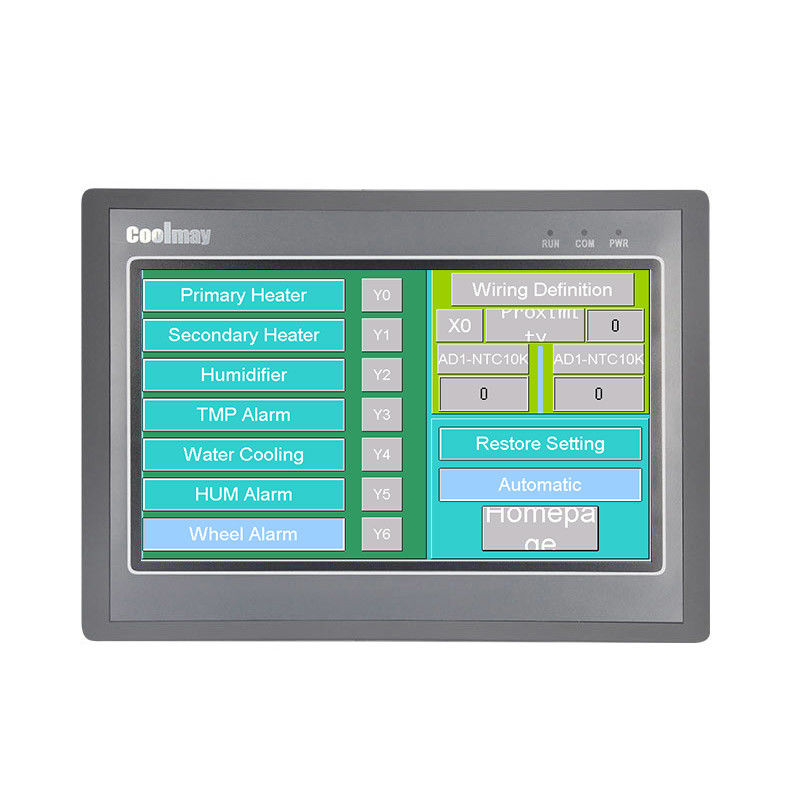

QM3G Series 10 Inch HMI Portrait Display Temperature PLC Controller 6-8W DC24V RS232 RS485


The all-in-one solution is to integrate the controller, operation interface, input/output, analog input/output, high-speed counting/pulse and communication port into a compact unit to meet the needs of customer equipment automation control.





1. Super functions.PLC compatible with FX3G/FX3U/FX3S PLC.It operate fast.
2. Highly integration.The digital points are 30 inputs and 30 outputs at most.The digital output can be transistor,relay or mixed output.Analog can reach up to 16 input and 8output.It has 2PLCCOM port(Rs232and USB Port).1 downloading port on HMI
3. Support several high-speed counting and high-speed pulse.Acceleration and deceleration are independent.The total high-speed counting and pulse can not exceed 480KHz
4.32K steps program capacity.32K power-off retentive registers.support interrupt.linear and circular interpolation.PID self-adjusting

Model QM3G-100FH
Dimension 275*194*36mm
Cutout size 262*180mm
Input 24VDC
Power Consumption 6-8W
Feature 60K colors resistive touch screen, supports portrait display
Type 10.1"TFT
Display size 222*125mm
Resolution(pixels) 1024*600
RAM 64MB (Please inquire if requires storing historical data)
ROM NOR Flash 16MB
CPU 32bit CPU 408MHz
COM ports Type-B HMI download port (can download PLC program through the USB penetrating function), RS232
Software Coolmay TPWorks HMI Programming Software
I/O level

- Input: Passive NPN, public terminal isolated

- Transistor output: Low level NPN, COM connect to negative

- Relay output: Normally open dry contact

DO type and load

- MT: 2A/point, 4A/4 points COM; MT: 0.5A/point, 0.8A/4 points COM, 1.6A/8 points COM

- MR: 2A/point, 4A/4 points COM, 5A/12 points COM.

High-speed counting Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10KHz

High-speed pulse

(Only for MT models)

8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

High-speed counting + high-speed pulse < 480KHz

COM port 1x mini USB, 1x RS232, 1x RS485
Software Compatible with GX Developer8.86 and GX WORKS 2
Detailed info. refer to: “Coolmay QM3G-FH All-in-One User Manual”, “Coolmay CX3G/FX3GC PLC Programming Manual”, “Coolmay TP HMI User Manual
Packaging & Shipping
  • Packaging

The products will be under testing for 1-3 days and packed with carton box .

QM3G Series 10In HMI PLC Controller Portrait Display Temperature 0

1. Q: How about the warranty ?

A: We provide 12 months warranty for all the goods from us , and you can refund the goods with any quality problem in 15 days.

2. Q: How soon can I get my goods after I pay for the order?

A: We have the professional production line. It is about 1-2 weeks after you make the order. Certainly we could also arrange it first if you have urgent order.

3. Q: Are you a manufacturer or trade company?
A: We are both factory and trae company, we have engineers for study & design and workers for producing and operating etc. We could support you one-stop products and service.

4. Q: What about delivery ?

A: We have DHL/FEDEX/EMS/UPS forwarder with competitive price if you dont't have freight forwarder.
5. Q: Do you have a CE certificate?
A: Yes, for the products we exported, we could offer the CE for your customs.
