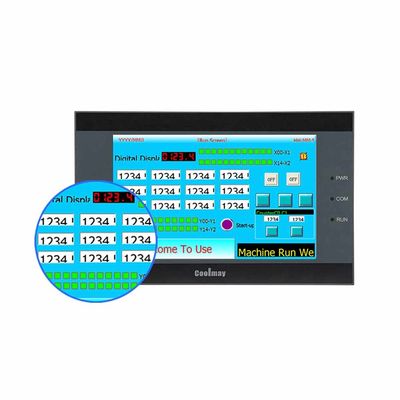

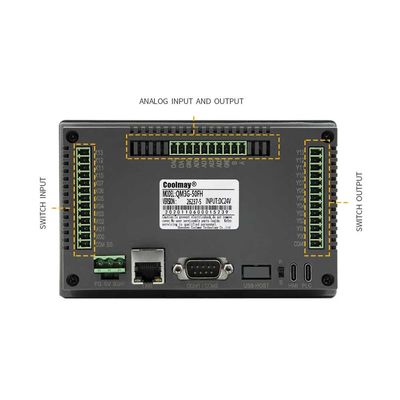

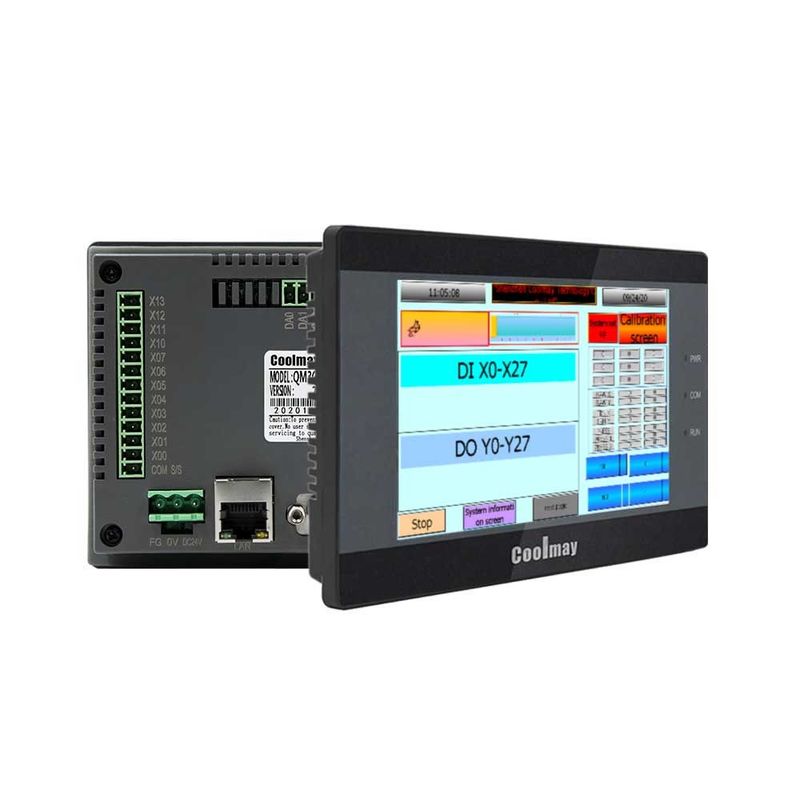

TFT 5Inch PLC Touch Panel 2AO Integrated Servo Motor Stepp Motor

  • TFT 5Inch PLC Touch Panel 2AO Integrated Servo Motor Stepp Motor
  • TFT 5Inch PLC Touch Panel 2AO Integrated Servo Motor Stepp Motor
  • TFT 5Inch PLC Touch Panel 2AO Integrated Servo Motor Stepp Motor
Place of Origin China
Brand Name Coolmay
Certification CE
Model Number QM3G-50FH
Minimum Order Quantity 1 unit
Price Details Need To Be Negotiated
Packaging Details Carton
Delivery Time within 3 working days after payment confirmed
Payment Terms T/T,Paypal, Western Union, Credit Card
Supply Ability 1500 pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 5" Digital Points Max 12DI/12DO
Analog Points （Optional） Max 4AI/2AO Digital Outputs Transistor Or Relay Or Mixed
High Speed Pulse Support High Speed Counting Support
High Light

TFT PLC Touch Panel

,

5Inch PLC Touch Panel

,

TFT plc hmi panel
Leave a Message
Product Description

TFT 5Inch PLC Touch Panel 2AO Integrated Servo Motor Stepp Motor

TFT 5 Inch Touch Screen PLC Controller Integrated HMI PLC All In One Servo Motor Stepp Motor Control Manufacturer Price





Quick Detail:
  1. supports Ladder diagram and SFC language, does not support structured programming/ labels
  2. Powerful,compatible with FX3G/FX3U/FX3SPLC,high processing speed.
  3. Military level 32bit CPU adopted, which is faster and more adapted to industrial environment of high electromagnetic interference.
  4. Special encryption, prevent illegal reading thoroughly.8-bit encryption,12345678 as pass word can thoroughly prevent reading of ladder logic program.
  5. Clock supported, rechargeable battery adopted.

HMI part



size of HMI: 5 inch

cutout size: 143*86mm

Resoution:800*480

RAM:NOR Flash 8MB

ROM:64MB

CPU:32bit CPU 408MHz

com ports:1*type C download port, 1*RS232

Software: mView Software





PLC part



Digital I/O: Max 12DI/12DO

I/O level: default NPN input and output, MR can be customized PNP input PNP output, MT can be customized PNP input and NPN output

DO type: transistor(MT) or relay(MR) or mixed(MRT)

Analog I/O(optional): max 4AI/2AO

AI(Optional):

Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed

AO(Optional):

0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/-5~5V/ -10~10V (2AO for 1 minus voltage)

com port:1*mini USB,1*RS485,1*RS232

software: WORKS 2



We are committed to providing you with a variety of solutions (Communication Port, Analog, Temperature,Weighing, etc.)





Model
QM3G-50FH
Dimension
150*96*36mm
Cutout size
143*86mm
Power
Consumption
5-7W
HMI
Feature
60K-color resistive touch screen, supports portrait display
Type
5.0"TFT
Display size
108*65mm
Resolution
(pixels)
800*480
RAM
NOR Flash 8MB
ROM
 64MB
CPU
32bit CPU 408MHz
Default
Type-C HMI download port (can download PLC program through the USB penetrating function),RS232port
software
                             mView Software
PLC
I/O
Max 12DI/12DO
I/O level
Input: Passive NPN, public terminal isolated
Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact
DO type
Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT)
(Relay output: max load 5A/ transistor output: max load 500mA)
High-speed
counting
Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,
or 2 ABZ 60KHz + 1 AB phase 10 KHz
High-speed pulse
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.
High-speed counting + high-speed pulse < 480KHz
Default
programming port
1*Type C port, 1 RS232
Optional  COM port 1 RS485 or 2 RS485 COM ports (one is changed from the default RS232 port)
Analog I/O
(optional)


Max 4AI/2AO
AI type (optional)
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed
AO type (optional)
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/
Software
Compatible with Mitsubishi GX Developer 8.86 and WORKS 2





TFT 5Inch PLC Touch Panel 2AO Integrated Servo Motor Stepp Motor 0



Real application:

TFT 5Inch PLC Touch Panel 2AO Integrated Servo Motor Stepp Motor 1



Coolmay company files:



Coolmay Technology was founded in 2006. Coolmay is a high-tech enterprise in Shenzhen, China. Coolmay focuses on plc development and design for 12 years. The world's first plc/hmi all-in-one was created by Coolmay. Coolmay products are widely used in electric power, metallurgy, water treatment, refrigeration industry, textile and other industries. It is favored by many foreign customers.





TFT 5Inch PLC Touch Panel 2AO Integrated Servo Motor Stepp Motor 2



RFQ:



1) Are you a manufacturer or trade company?

We are both factory and trae company, we have engineers for study & design and workers for produce and operate etc, we could
support you one-stop products and service.

2) Do you have a CE certificate?

Yes, for the products we exported, we could offer the CE for your Customs.

3) How long about the delivery?

It depends on the order details, and usually, we could support the delivery within 2-7 working days.

4) About Coolmay?

Coolmay was established in 2005, and have got great success with its professional working team, we has been specialized in digital
products for over 10 years, and mainly about HMI, PLC and HMI/PLC all-in-one and other industrial control products.
