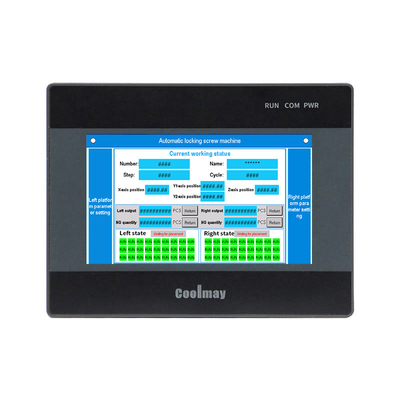

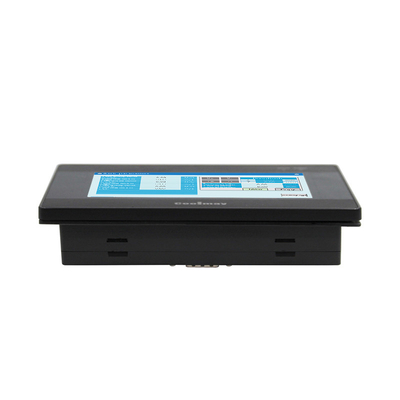

PLC Automation Control Panel Single Phase 6 Channel 60K Colors Screen PLC HMI All In One

  • PLC Automation Control Panel Single Phase 6 Channel 60K Colors Screen PLC HMI All In One
  • PLC Automation Control Panel Single Phase 6 Channel 60K Colors Screen PLC HMI All In One
Place of Origin CHINA, GONGDONG
Brand Name Coolmay
Certification CE
Model Number QM3G-43FH
Minimum Order Quantity 1 peice
Price Negotiable
Packaging Details carton
Delivery Time 3-8 works days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 15000 Units Per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
COM Port 1x TYPE-C, 1x RS232, 1x RS485 AO Type -0~10V /0~5V -0~20mA/ 4~20mA Mixed
AI/AO 2/1 Or 4/2( Maximum 3AI If Thermocouple Inputs) Power Consumption 4-6W
High Light

HMI PLC Automation Control Panel

,

60K Colors PLC HMI All In One

,

Colors Screen PLC HMI All In One
Leave a Message
Product Description

Plc Automation Control Panel Single Phase 6 Channel 24VDC Input 60K Colors Resistive Touch Screen 32bit CPU 408MHz



The all-in-one solution is to integrate the controller, operation interface, input/output, analog input/output, high-speed counting/pulse and communication port into a compact unit to meet the needs of customer equipment automation control.



PRODUCT DESCRIPTION of HMI PLC ALL IN ONE



Feature:



  1. 4.3inch hmi plc integrated control device



    Built in :



    1. 4.3 inch 480x272 resolution,65536 true color, ip65 front panel, RS232 RS485 Com port , Human machine interface



    2. 8 digital input , 8 digital output (relay), 32k programming steps programmable logic controller, compatible to FX3G/FX3U PLC.



    3. Cables for first order free



    4. Software for programming, free to be downloaded on our official website.

  2.

    Model QM3G-43FH
    Dimension 134*102*34mm
    Cutout size 120*94mm
    Input 24VDC
    Power Consumption 4-6W
    HMI
    Feature 60K colors resistive touch screen, supports portrait display
    Type 4.3"TFT
    Display size 97*56mm
    Resolution(pixels) 480*272
    RAM 64MB (Please inquire if requires storing historical data)
    ROM NOR Flash 8MB
    CPU 32bit CPU 408MHz
    COM ports Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port
    Software Coolmay TPWorks HMI Programming Software
    PLC
    I/O level

    - Input: Passive NPN, public terminal isolated

    - Transistor output: Low level NPN, COM connect to negative

    - Relay output: Normally open dry contact
    DO type and load



    - MT: 2A/point, 4A/4 point COM, 5A/12 point COM

    MR: 2A/point, 5A/12 point COM
    High-speed counting Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10KHz

    High-speed pulse

    (Only for MT models)

    8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

    High-speed counting + high-speed pulse < 480KHz
    COM port 1x TYPE-C, 1x RS232, 1x RS485
    Software Compatible with GX Developer8.86 and GX WORKS 2
    Detailed info. refer to: “Coolmay QM3G-FH All-in-One User Manual”, “Coolmay CX3G/FX3GC PLC Programming Manual”, “Coolmay TP HMI User Manual”

◆ Upper computer programming software compatible with Works 2/GX
Developer8.86 (supports Ladder diagram and SFC language, does not support
structured programming/labels).
◆ Powerful, compatible with FX3G/FX3U/FX3S PLC, high processing
speed.
◆ Military level 32 bit CPU adopted, which is faster and more adapted to
industrial environment of high electromagnetic interference.
◆ Special encryption, prevent illegal reading thoroughly. 8-bit encryption,
12345678 as password can thoroughly prevent reading of ladder logic
program.
◆ Clock supported, rechargeable battery adopted.
◆ Default with 1 HMI download port, 2 PLC programming ports
(RS232/MiniB USB port or Type-C), and one USB port

Detail Com Ports:



PLC Automation Control Panel Single Phase 6 Channel 60K Colors Screen PLC HMI All In One 0

Maintenance and service

  • Your products will be 18-month warranty excluding artificial damage.
  • You would receive unlimited support via video, phone or email.
  • OEM/ODM is supported, MOQ is 200 sets. More modules or functions can be customized as per your requirements.
