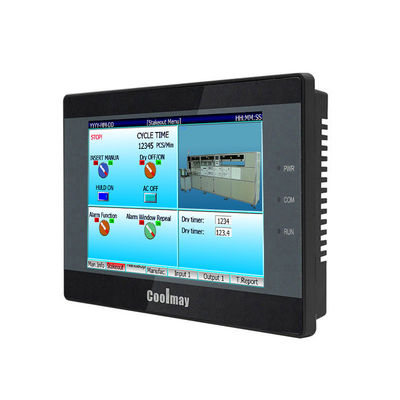

Coolmay 5 inch TK8050FH HMI Touch Screen Panel Scada Software 5inch TFT LCD Display
| Brand Name: | Coolmay |
| Model Number: | TK8050FH |
| MOQ: | 1 peice |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 15000 Units Per Week |
5inch TFT HMI Touch Screen Panel
,Coolmay TK6050FH
,Scada Software HMI Touch Screen Panel
COOLMAY scada software 5inch TFT LCD display touch screen TK8050FH hmi
PRODUCT DESCRIPTION
Feature:
- Resistive touch panel with high precision and reliability
- 60,000 TFT true color display, all series support vertical display
- Supports any-format static images and GIF animation
- Supports all fonts in Windows
- Provide a large number of vector libraries and component libraries
- Button sound and alarm sound can be set by yourself
- Multi-language, support to display multiple languages in the same screen, and have the function of translator
-
Advantages
1) Over 10 years brand, Specialized in PLC and HMI automation products studying since 2005.
2) Powerful team, with experienced professional developing team, have already got many patent certificate
3) Various products, and support customized service, you can always find your prefer one.
4) Perfect after-service, support 18 months warranty under right operation, and support lifelong technical introduction.
5) Free training , Case and software for plc controller and hmi touch panel etc will be kept updated in our official website.
6) Exported directly, we are not only the developer, but also the manufacurer, you could get high quality products in very good price.
| Model | TK8050FH | |
|
Resolution (pixels) |
800*480 | |
| Brightness | 300cd/m² | |
| Contrast ratio | 400:1 | |
| Backlight | LED | |
| Backlight time | 60,000 hours | |
| Display color | 65536 colors | |
| Touch type | 4-wire resistive panel | |
| Storage | ROM | NOR Flash 16MB |
| RAM | 64MB (HMI when stores historical data, optional ferroelectric is required) | |
| CPU | 32bit CPU 408MHz | |
| Interface | Interface |
- Download port: Type-C, RS232, RS485 - COM port: RS232, RS485 |
| Protocol | RS232/RS485 supports MODBUS, free port and common PLC communication protocol | |
| Calendar | Yes | |
| Input Voltage | 12-24VDC±10%<150mA @ 24VDC | |
| Consumption | 85mA/24V | |
| Protection Class | IP65 (front panel) | |
| Temperature | Ambient environment: 0～50℃ | Storage environment: -20～70℃ | |
| Humidity | 20%～90% RH | |
| Certification | CE | |
| Software |
CoolMay TPWorks HMI programming software Detailed info. refer to Coolmay TK Series HMI Programming Manual CoolMay TK HMI User Manual |
|
Programming software
The coolmay-HMI programming software is completely free for users.
Download link: http://www.coolmay.net/Download-159-36-41.html
Coolmay Technology will quickly and accurately provide you with high quality industrial control products at competitive prices. Without a small order, the products will be tested from our workshops to ensure the highest quality.
Company Information
Shenzhen Coolmay Technology Co., Ltd,the developer and manufacturer of Coolmay brand serial products,including HMI,PLC and HMI/PLC ALL-IN-ONE and other industrial control products. Since its establishment in 2005,the company has been focusing in providing various products with high Quality and low price for industrial control,based on the belief of “Cooperation,Honesty,
Down-to-earth,Innovation”.
