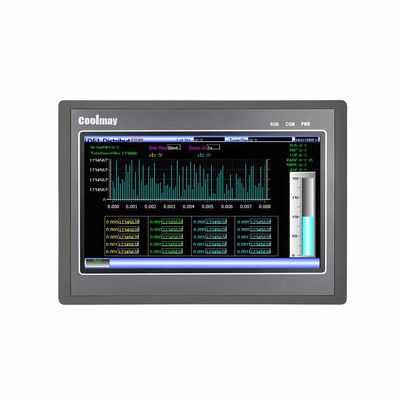

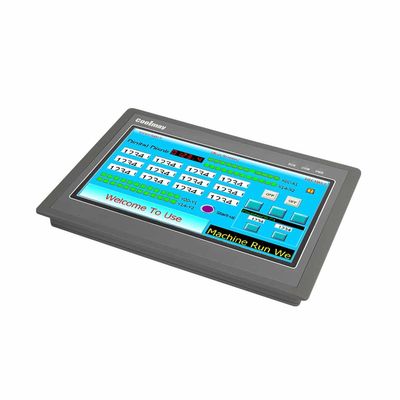

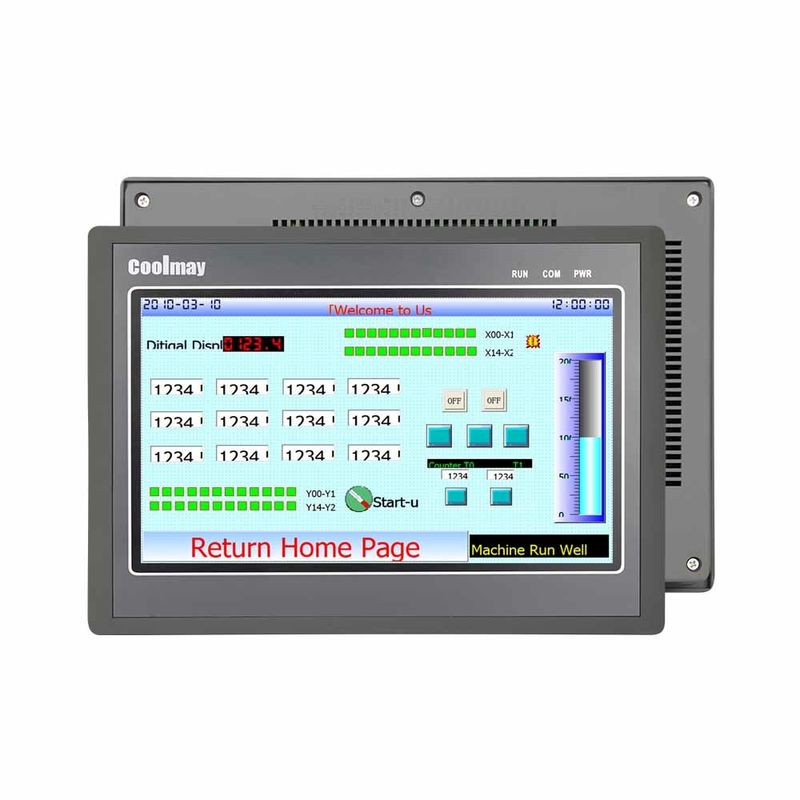

1024*600 Pixels TFT Display Human Machine Interface MT6100HA

Place of Origin China
Brand Name Coolmay
Certification CE Certificate
Model Number MT6100HA
Minimum Order Quantity 1 Unit
Price Details Need To Be Negotiated
Packaging Details Carton
Delivery Time 3-5 Days After Payment Confirmed
Payment Terms TT,Paypal, Western Union, Credit Card
Supply Ability 15000 Units Per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 10" Resolution 1024*600
ROM 128 RAM 128MB
COM Ports 1*RS232, 1*RS485 Optional WIFI
Ethernet Optional Software CoolmayHMI
Protocal Modbus, Free, Common PLC Communication Protocal Support Various Brand Of HMI Siemens,Mitsubishi, Delta, Omron,LG And So On
High Light

TFT Human Machine Interface

,

TFT Display Human Machine Interface

,

TFT hmi machine interface

Leave a Message
Product Description

1024*600 Pixels TFT Display Human Machine Interface CE Certificate

High Resolution TFT Display Touch Screen HMI Control Panel True Color LCD Free Software Support Ethernet and WIFI





Quick detail:

  • Resistive touch panel with high precision and reliability.
  • 60,000 TFT true color display, all series support vertical display.
  • Support any-format static images and GIF animation
  • Supports all fonts in Windows
  • Provide a large number of vector libraries and component libraries
  • Button sound and alarm sound can be set by yourself
  • Convenient drawing components and full-featured editing components allow users to quickly design screens at will
  • Multi-language, support to display multiple language in the same screen, and have the function of translator
  • Multiple commnuication protocols, support each communication port to connect with multiple controllers.

Package:

  • 1 set of device (grey color) and cables
  • Software and manuals are free of charge. They are available on our website or please contact our sales team for download links.



Detail parameters



Dimension 275*194*36mm
Cut-out Size 261*180mm
Display Size 222*125mm
Weight(kg) Appox.t 0.7 kg
Display 10.1” TFT
Resolution 1024*600
Brightness 300cd/mm
Contrast 400:1
Backlight LED
Backlight time 60,000 h
Color 65535
Interface RS232/RS485
Installation Panel mounting
Protection level IP65(Front Panel)
Touch type 4-wire resistive panel
CPU CORTEX A8 720MHz-1GHz
ROM 128MB
RAM 128MB
Protocol Support MODBUS, free port and common PLC communication Protocol
Audio Optional
Calendar Yes





Instructions of HMI connecting with all-brand PLCS



1. Mitsubishi FX series



  1) MT software settings



Parameter item
Recommended settings
PLC type
Mitsubishi FX Series
COM type
RS232
Data Bits
7
Stop Bits
1
Checking Bits
Even
Baud rate
9600
Controller ID
0



2) MT(COM1) FX Series PLC COM cable connection Mitsubishi programming cable is used.

And other brands like Mitsubishi, Delta, Siemens PLC our HMI can also supported, details please refers to our manual.



1024*600 Pixels TFT Display Human Machine Interface MT6100HA 0

MT6037H/MT9037H/MT6050H cables:

  1. If communicates with Coolmay FX3GC/FX2NC/DX2N/Mitsubishi PLC, use the same cables as the ones of DX2N(FX2NC) PLC.
  2. If communicates with Coolmay CX3G/CX2N/DCX2N PLC, use the same cables as the ones of CX2N PLC.



2. Omron C series



1) MT software settings



Parameter Settings
PLC type Omron C/CPM/CP/CS/CJ Series
COM type RS232
Data bits 7
Stop bits 2
Checking bits Even
Baud rate 9600
Controller ID 0



2) MT( COM1 )-Omron PLC connections



1024*600 Pixels TFT Display Human Machine Interface MT6100HA 1

3. Simens S7-200



1) MT software settings(change COM1 to RS485)



Parameter Settings
PLC type Siemens S7-200 Series
COM type RS485
Data bits 8
Stop bits 1
Checking bits Even
Baud rate 9600
Controller ID 2



2) MT( COM1 )S7-200 PLC connections



1024*600 Pixels TFT Display Human Machine Interface MT6100HA 2

FAQ



1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design
and workers for produce and operate etc, we could support you one-stop products and service.
2) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western Union ect.
