4.3 Inch HMI PLC All In One Integrated Digital I/O Analog support Modbus RTU protocal Ethernet optional function For Egg Incubator

Name: 4.3 Inch HMI PLC All In One Integrated Digital I/O Analog support Modbus RTU protocal Ethernet optional function For Egg Incubator
Brand: Shenzhen Coolmay Technology Co., Ltd.
SKU: EX3G-8043H
Price: 345.00 USD
Availability: InStock

Brand Name:	Coolmay
Model Number:	EX3G-8043H
MOQ:	1 unit
Price:	Details Need To Be Negotiated
Payment Terms:	T/T,Paypal,Western Union,Credit Card
Supply Ability:	1500 pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Size:

4.3"

Digital Points:

Max 12DI/12DO

Analog Points （Optional）:

Max 4AI/2AO

Digital Outputs:

Transistor Or Relay Or Mixed

High Speed Pulse:

Support

High Speed Counting:

Support

PLC Software:

WORKS 2

Material:

IP65 Front Panel

Packaging Details:

Carton

Supply Ability:

1500 pcs per week

Highlight:

Ethernet HMI PLC

4.3 Inch HMI PLC

RTU protocal HMI PLC

Product Description

Description:Coolmay 4.3ch HMI/PLC All In ONE EX3G-8043H-24MT

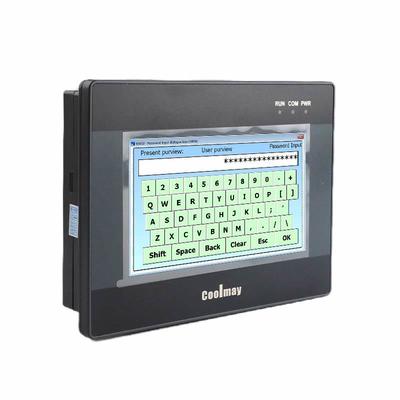

4.3 Inch HMI PLC All In One Integrated Digital I/O Analog support Modbus RTU protocal Ethernet optional function For Egg Incubator 0

➤Technical Specifications

Specification	Descriptions
Parameter	EX3G-8043H-24MT
Maximum I/O Points	12DI/12DO
PLC Communication Interface	Comes with 1 TYPE-C programming port; default 1 RS232+1 RS485,Optional 1 RS485
Analog Points	Max 4AI/2AO
HMI COM Port	Type-C (HMI download port); 1 USB 2.0 port,Comes with 1 RS232
Programming software	Compatible with PLC programming software GX Developer8.86Q and GX Works2

➤Product Features

●Integrated Cost - Efficiency

Integrates logic control, analog I/O (compatible with multiple signals), and HMI (high - definition touch screen). Replaces split - type devices, reducing costs and boosting efficiency.

●Space - Saving Design

Compact structure (supports vertical/horizontal installation) with embedded snaps for complex cabinets. Saves over 60% space compared to split systems.

●Easy Installation

Fixed by screws with integrated terminal blocks, simplifying wiring. Cuts 50% of wiring labor and material costs.

●Full Expandability

Offers 12 - 30 digital I/O channels (input/output optional), 8 analog signal types, and full communication interfaces (485, Ethernet, etc.) for flexible production - line integration.

●Deep Customization

Covers hardware (interfaces/channels), appearance (panels/structures), functions (temperature control/weighing), and software (interfaces/boot screens) for diverse needs.

●Efficient After - sales

Plug - in terminals (over 5,000 insertion cycles) enable 5 - minute wire replacement. No travel needed, increasing maintenance efficiency by over 80%.

➤ Application Scenarios

4.3 Inch HMI PLC All In One Integrated Digital I/O Analog support Modbus RTU protocal Ethernet optional function For Egg Incubator 1

➤About Us

4.3 Inch HMI PLC All In One Integrated Digital I/O Analog support Modbus RTU protocal Ethernet optional function For Egg Incubator 2

Founded in March 2006, Coolmay stands as a premier brand in industrial automation, serving over 10,000 customers across 200+ countries. Our team of 200+ global professionals, including 40+ R&D specialists, has completed 55,000+ projects and secured 60+ intellectual property rights. We deliver advanced, reliable solutions—PLC,HMI+PLC all-in-one machines, HMI, power supply, servodrives, stepperdrives, VFDs, and loT modules—engineered for precision and efficiency in smart manufacturing.

➤Partners

4.3 Inch HMI PLC All In One Integrated Digital I/O Analog support Modbus RTU protocal Ethernet optional function For Egg Incubator 3

➤Exhibitions

4.3 Inch HMI PLC All In One Integrated Digital I/O Analog support Modbus RTU protocal Ethernet optional function For Egg Incubator 4

➤ Certifications

Coolmay products are fully compliant with CEand RoHS regulations, and are manufactured under ISO 9001-certified quality management systems.

4.3 Inch HMI PLC All In One Integrated Digital I/O Analog support Modbus RTU protocal Ethernet optional function For Egg Incubator 5

➤Payment Methods

We accept a variety of secure payment methods on AliExpress, including Western Union, WeChat,AliPay, and PayPal (where available), as well as international bank transfers (T/T). All transactions are protected under AliExpress Buyer Protection for your peace of mind.

➤Warranty & After-Sales Service

1. 18-Month Manufacturer Warranty

Covers hardware defects and system malfunctions under normal use.

2. Lifetime Technical Support

Remote assistance available for configuration, firmware, and integration.

3. Returns & Exchanges

For damaged shipments, please contact us within 3 days with photo evidence.

➤Contact Us Anytime

Feel free to reach out for support, documentation, or firmware files. We will respond within 24 hours.

WhatsApp: +86 199-2529-1353,WeChat: +86 199-2529-1353
