QM3G-100FH-24MR-485P 10 Inch HMI PLC All In One 30DI 30DO Modbus RTU Protocol Programmable Logic Controller
| Brand Name: | Coolmay |
| Model Number: | QM3G-100FH-24MR-485P |
| MOQ: | 1 unit |
| Price: | Negotiable |
| Payment Terms: | T/T,Paypal,Western Union,Credit Card |
| Supply Ability: | 1500 pcs per week |
30DI 30DO HMI PLC
,Modbus RTU Protocol Programmable Logic Controller
,10 Inch HMI PLC All In One
10 Inch HMI PLC All In One 30DI 30DO Modbus RTU Protocol Programmable Logic Controller
Each PLC has optional COM port: 1 RS485 or 2 RS485 COM ports(one is changed from the default RS232 port), and a CAN port is optional to meet the needs of users to connect several types of equipment.

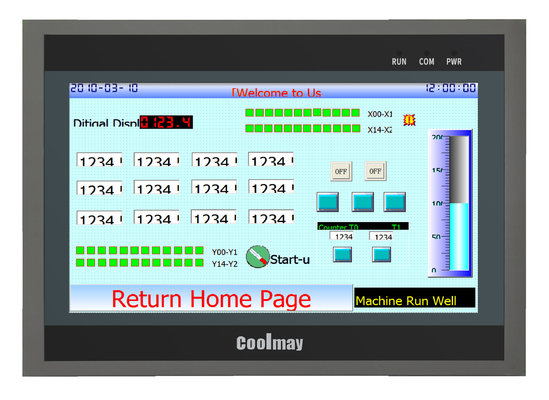

Paramaters of HMI Part:
size of HMI: 10.1"TFT
RAM:64MB(HMI when stores historical data, optional ferroelectric is required)
ROM:NOR Flash 16MB
CPU:32bit CPU 408MHz
Software: Coolmay mView HMI Programming Software
Paramters of PLC Part:
Digital I/O: Max 30DI/30DO
I/O level: Input: Passive NPN, public terminal isolated
Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact
DO type and load: Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM.
Analog I/O(optional): max 16AI/8AO
AI type(Optional): Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed (QM3G-70FH/70HD/70KFH/100FH optional -5V~5V and -10V~10V)
software: Compatible with GX Developer8.86 and GX WORKS2
AI type(Optional): Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed (QM3G-70FH/70HD/70KFH/100FH optional -5V~5V and -10V~10V)
software: Compatible with GX Developer8.86 and GX WORKS2
We are committed to providing you with a variety of solutions, such as ROM, Resolution, CPU, ect.
| Model | QM3G-100FH-24MT-485P |
| Analog I/O | Max 16AI/8AO |
| ROM | NOR Flash 16MB |
| CPU | 32bit CPU 408MHz |

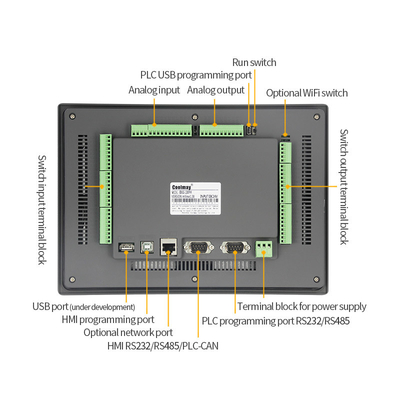

| Default | Type-b HMI download port (can download PLC program through the USB penetrating function), RS232. |
| I/O level |
Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact |
| High-speed counting |
Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
| High-speed pulse |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
| AI type (optional) |
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed (QM3G-70FH/70HD/70KFH/100FH optional -5V~5V and -10V~10V) |
| AO type (optional) |
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/ -5~5V/-10~10V(2AO for 1 minus voltage) |
-
Dgood product！
