QM3G-43FH-24MT-3AD1DA-485P 4.3 Inch HMI PLC Controller All In One Pt100 Pt1000 12DI 12DO For Fully Automated Machine

  • QM3G-43FH-24MT-3AD1DA-485P 4.3 Inch HMI PLC Controller All In One Pt100 Pt1000 12DI 12DO For Fully Automated Machine
  • QM3G-43FH-24MT-3AD1DA-485P 4.3 Inch HMI PLC Controller All In One Pt100 Pt1000 12DI 12DO For Fully Automated Machine
  • QM3G-43FH-24MT-3AD1DA-485P 4.3 Inch HMI PLC Controller All In One Pt100 Pt1000 12DI 12DO For Fully Automated Machine
  • QM3G-43FH-24MT-3AD1DA-485P 4.3 Inch HMI PLC Controller All In One Pt100 Pt1000 12DI 12DO For Fully Automated Machine
Place of Origin China
Brand Name Coolmay
Certification CE,Rohs
Model Number QM3G-43FH
Minimum Order Quantity 1
Price usd100-usd138 per piece
Packaging Details box 26*19*10cm
Delivery Time 1-3 working days
Payment Terms T/T,Western Union
Supply Ability 5000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product 4.3 Inch Hmi Plc Controller Cutout Size 120*94 Mm
Resolution 480x272 Pixels Digital IO 24
Analog IO PT100 Temperature Com Port RS232,RS485
Highlight

12DI 12DO HMI PLC Controller

,

4.3 Inch HMI PLC Controller

,

All In One HMI PLC Controller
Leave a Message
Product Description

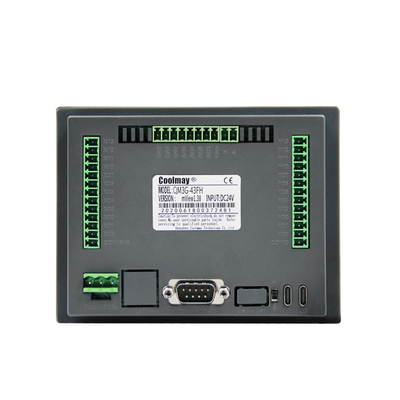

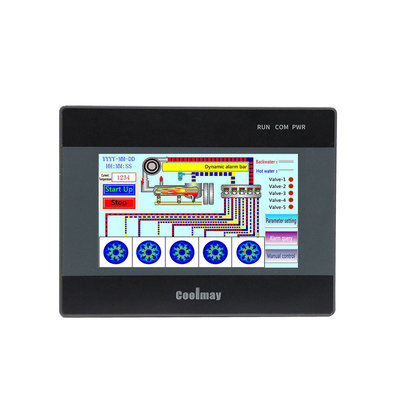

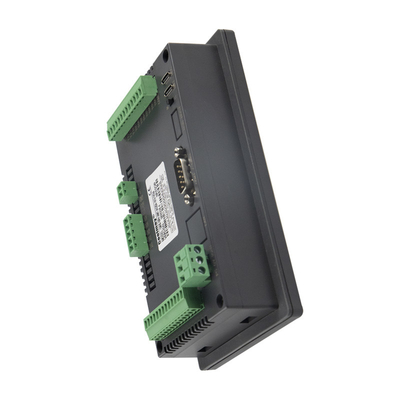

 4.3 Inch HMI PLC Controller All In One Pt100 Pt1000 12DI 12DO For Fully Automated Machine


QM3G series is coolmay new developed hmi plc controller.   The hmi we updated to be TK style.


QM3G hmi+plc all in one = TK hmi + CX3G plc .


HMI Programming software:  mView


PLC Programming software : GX Works2.


Model QM3G-43FH-24MR-2AD-PT-485P
HMI Size 4.3 inch
Digital Input /output  12 / 12 relay
Analog Input /output  2 pt100 temperature input / 0 output
Communication Protocol

Modbus rtu protocol

Mitsubishi programming port protocol

Free port protocol


QM3G-43FH-24MT-3AD1DA-485P 4.3 Inch HMI PLC Controller All In One Pt100 Pt1000 12DI 12DO For Fully Automated Machine 0


Specification:

- Integrated PLC,HMl,digital I/O(DW/DO), analog I/O(AD/DA), high speed functions,etc..


- Compatible with FX3G/FX3U/FX3S PLC,fast operation.


- Up to 12DI/12DO,4AD/2DA.


- Default 2 PLC programming ports, 1 HMl download port.


- Supports optional one or two Rs485, CAN, WIFl, network port on PLC, and supports optional Rs232,Rs485,network port (under development)on HMI.


- Supports multi-channel high speed count and pulse functions.


- 32K-step program capacity and 32Kpower retentive registers.Supports interruption, linear arc interpolation and PID self-tuning.


QM3G-43FH-24MT-3AD1DA-485P 4.3 Inch HMI PLC Controller All In One Pt100 Pt1000 12DI 12DO For Fully Automated Machine 1
