Coolmay 10 Inch Temperature Humidity HMI PLC All In One Programmable Logic 8 Axis Controller
| Brand Name: | Coolmay |
| Model Number: | EX3U-8100H-44MT-2AD2DA-485P |
| MOQ: | 1 peice |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 15000 Units Per Week |
Detail Information
Place of Origin:
CHINA, SHENZHEN
Certification:
CE ISO9001 ROHS
Input:
24V DC
COM Port:
1x Mini USB, 1x RS232, 1x RS485
Dimension:
275*194*36 Mm
RAM:
256MB FLASH
Packaging Details:
carton
Supply Ability:
15000 Units Per Week
Highlight:
HMI PLC 8 Axis Controller
,Temperature Humidity Plc HMI Integrated Combo
,10 Inch PLC HMI Integrated Combo
Product Description

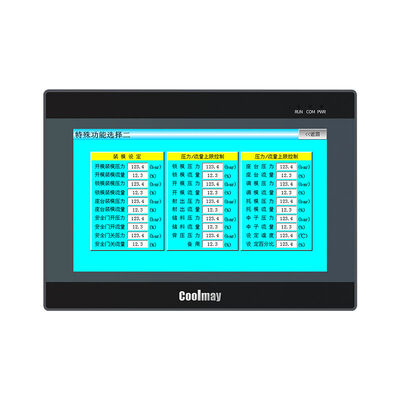

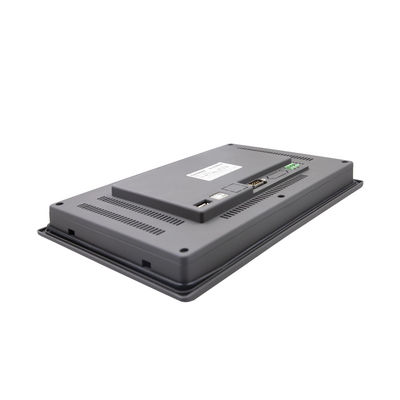

Coolmay 10-Inch Temperature Humidity PLC HMI Integrated Controller
All-in-one programmable logic controller with 8-axis control and G-code support, designed for labeling machines and industrial automation applications.
Product Overview

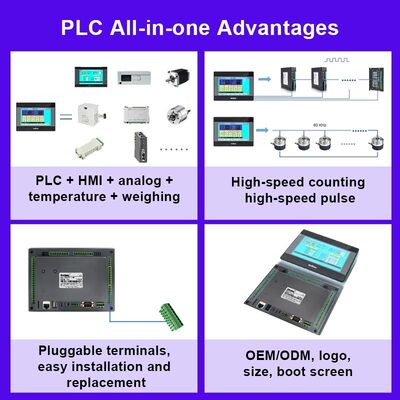

This integrated solution combines controller, operation interface, input/output, analog I/O, high-speed counting/pulse, and communication ports in a compact unit for comprehensive equipment automation control.
Key Features
- High-speed PLC operation with superior performance
- Integrated design with up to 24 digital inputs and 20 digital outputs
- Flexible output options: transistor, relay, or mixed output configurations
- Analog capability: up to 4 inputs and 2 outputs
- Advanced high-speed counting and pulse functions up to 480KHz
- 32K steps program capacity with power-off retention
- Supports interrupt functions, linear/circular interpolation, and PID self-adjustment
Technical Specifications
| Model | EX3U-8100H |
|---|---|
| Dimensions | 275 × 194 × 36mm |
| Cutout Size | 262 × 180mm |
| Input Power | 24VDC |
| Power Consumption | 6-8W |
HMI Specifications
| Display Type | 10.1" TFT resistive touch screen |
|---|---|
| Display Size | 222 × 125mm |
| Resolution | 1024 × 600 pixels |
| RAM/ROM | 256MB each |
| CPU | Dual-core 1GHz |
| Software | Coolmay VCOOL |
PLC Specifications
| I/O Level | Input: Passive NPN, isolated common terminal |
|---|---|
| Digital Output Types | Transistor (NPN) or Relay configurations |
| High-speed Counting | 6 channels at 60KHz with multiple configuration options |
| High-speed Pulse | 8 channels (Y0-Y3: 100KHz, Y4-Y7: 10KHz) |

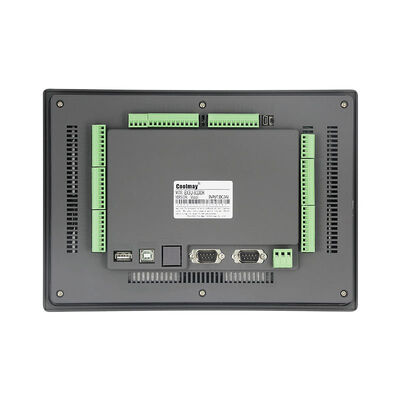

| Communication Ports | Mini USB, RS232, RS485 |
| Software | Compatible with Vtool PRO |
Packaging & Quality Assurance
All products undergo 1-3 days of comprehensive testing and are securely packaged in carton boxes to ensure safe delivery.
Frequently Asked Questions
Warranty Information
We provide 12 months warranty for all products, with 15-day refund policy for any quality issues.
Order Processing Time
Production typically takes 1-2 weeks after order confirmation, with expedited processing available for urgent requirements.
Company Background
We are both manufacturer and trading company, offering complete engineering, design, and production services with comprehensive technical support.
Shipping Options
We work with major carriers including DHL, FEDEX, EMS, and UPS, providing competitive shipping rates worldwide.
Certification Compliance
All exported products include CE certification for customs clearance and regulatory compliance.
Application Scenarios
About Coolmay
Founded in 2006, Coolmay is a leading brand in industrial automation, serving over 10,000 customers across 200+ countries. Our team of 200+ professionals, including 40+ R&D specialists, has completed 55,000+ projects and secured 60+ intellectual property rights. We deliver advanced, reliable solutions including PLCs, HMI+PLC all-in-one machines, HMIs, power supplies, servo drives, stepper drives, VFDs, and IoT modules engineered for precision and efficiency in smart manufacturing.
Global Partners
Industry Exhibitions
Quality Certifications
Coolmay products are fully compliant with CE and RoHS regulations, manufactured under ISO 9001-certified quality management systems.
Payment & Warranty
We accept multiple secure payment methods including Western Union, WeChat, AliPay, PayPal, and international bank transfers (T/T). All transactions are protected under AliExpress Buyer Protection.
Warranty & Support
- 18-month manufacturer warranty covering hardware defects
- Lifetime technical support for configuration and integration
- Returns and exchanges processed within 3 days with photo evidence
Contact Information
For technical support, documentation, or firmware files:
WhatsApp/WeChat: +86 199-2529-1353
We respond to all inquiries within 24 hours.
Overall Rating
5 star
100%
4 star
0
3 star
0
2 star
0
1 star
0

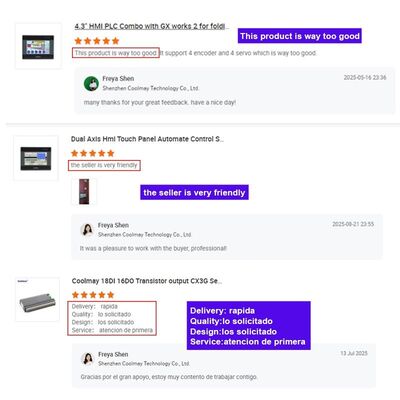

All Reviews
-
Dgood product！
