Coolmay 4.3 Inch EX3U-8043H-24MT-2AD1DA-485P HMI PLC All-in-one Controller
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | 4.3 Inch Hmi Plc Controller | Cutout Size | 120*94 Mm |
|---|---|---|---|
| Resolution | 480x272 Pixels | Digital IO | 24M |
| Analog IO | 2AD1DA | Com Port | RS232,RS485 |
Product Description

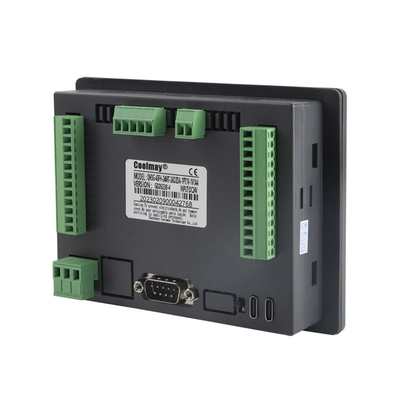

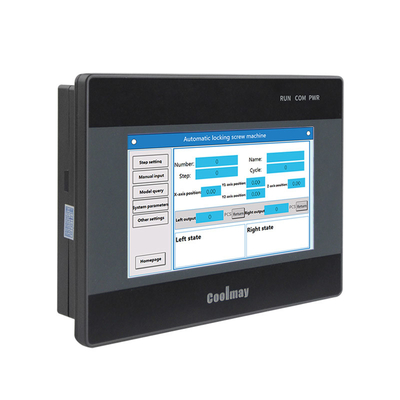

4.3 Inch EX3U-8043H-24MT-2AD1DA-485P HMI PLC All-in-one Controller
EX3U-80H series is coolmay new developed hmi plc controller. The hmi we updated to be TK style.
EX3U-80H hmi+plc all in one = HMI + PLC .
HMI Programming software: VCool
PLC Programming software : Vtool PRO
| Model | EX3U-8043H-24MT-2AD1DA-485P |
| HMI Size | 4.3 inch |
| Digital Input /output | 12 / 12 |
| Analog Input /output | 2AD1DA |
| Communication Protocol |
Modbus rtu protocol Mitsubishi programming port protocol Free port protocol |
Specification:
- Integrated PLC,HMl,digital I/O(DW/DO), analog I/O(AD/DA), high speed functions,etc..
- Up to 12DI/12DO,2AD/1DA.
- Default 2 PLC programming ports, 1 HMl download port.
- Supports optional one or two Rs485, CAN, WIFl, network port on PLC, and supports optional Rs232,Rs485,network port (under development)on HMI.
- Supports multi-channel high speed count and pulse functions.
- 32K-step program capacity and 32Kpower retentive registers.Supports interruption, linear arc interpolation and PID self-tuning.
