5 Inch Integrated Hmi Plc All In One Panel 12DI 4AI/2AO 10v Temperature Analog
| Brand Name: | Coolmay |
| Model Number: | QM3G-50FH-24MT |
| MOQ: | 1 unit |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 100,000 set per month |
10v Hmi Plc All In One
,12DI Hmi Plc All In One
,Integrated Hmi Plc All In One Panel
5 Inch Integrated Hmi Plc All In One Panel 12DI 4AI/2AO 10v Temperature Analog
Naming rules
1. Series QM3G: QM3G-FH series
2. HMI 43FH: 4.3inch 50FH: 5inch 70FH/70HD/70KFH: 7inch 100FH: 10inch
3. Digital input and output (DI/DO) 16: 8DI 8DO 24: 12DI 12DO 38: 20DI 18DO 44: 24DI 20 DO 60: 30DI 30DO
4. Module type M: Main module of universal controller
5. Digital output (DO) type R: relay； T: trnasistor(MOS tube)； RT: both relay and transistor
6. Analog input (AD) 4 channels for 43FH/50FH,12 for 70FH/HD ,16 for 70KFH/100FH
7. Analog output (DA) 2 channels for 43FH/50FH,8 for 70FH/70HD/70KFH/100FH
8. AI type E: Thermocouple E(can be customized as type K T, S or J supports negative temperature)
PT:PT100 PT1000:PT1000 NTC thermistor 10K, 50K, 100K A0: 0-20mA A4: 4-20mA V5: 0-5V
V: 0-10V V5_:-5V~5V V_:-10~10V (only 7 and 10 inch support V5_ and V_)
9. AO type A0: 0-20mA A4: 4-20mA V5: 0-5V V: 0-10V V5_:-5V~5V
V_:-10~10V(only 7 inch and 10 inch support negative voltage covers 2 channels)
10. C1 singe phase high-speed counting,C2 AB phase counting,C3 ABZ phase counting;
Normally support 6 single phase 60KHz , or 2 AB ( Z ) 60KHz + 1 AB 10KHz
11. P0:10KHz high speed pulse;P:100KHz high speed pulse;Normally 8 channels,Y0-Y3 is 100KHz,Y4-Y7 is 10KHz;That high speed counting plus high speed pulse must be withi 480KHz
12. com port optional refers to Chart 1'basic parameter
Parameter

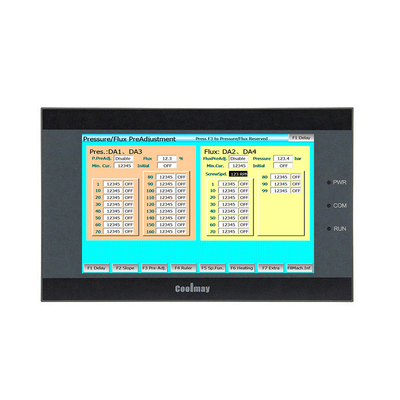

| Display | Dimension | 151*96*36mm |
| Cutout size | 143*86mm | |
| Type | 5" TFT | |
| Feature | 60K-color resistive touch screen, supports portrait display | |
| Memory | RAM | 64MB |
| ROM | NOR Flash 8MB | |
| CPU | 32bit CPU 408MHz | |
| I/O | DI/DO | Max 12DI/12DO |
| DI/DO level | Input: Passive NPN, public terminal isolated | |
| DO type and load | MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM | |
|
Analog I/O (optional) |
Max 4AI/2AO | |
| AI type (optional) |
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed |
|
| AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed | |
| High-speed function | High-speed counting |
Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
| High-speed pulse |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
|

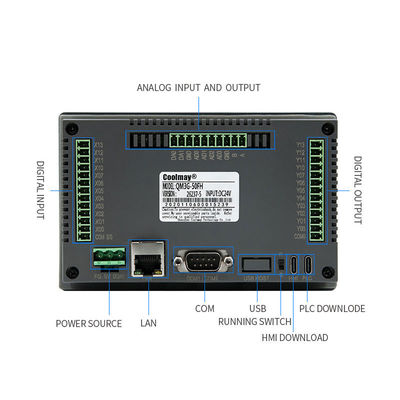

| Connection | HMI | Type-C HMI download port |
| PLC | 1 TYPE-C, 1 RS232 (program port) | |
|
1 RS485 or 2 RS485 COM ports (one of which is changed from the default RS232 port); 1 WIFI (occupy default RS232 port) |
||
| Software | HMI | Coolmay TPworks HMI Programming Software |
| PLC | Compatible with Mitsubishi GX Developer 8.86 and WORKS 2 |
1. Super functions.PLC compatible with FX3G/FX3U/FX3S PLC. It operate fast.
2. Highly integration.The digital points are 30 inputs and 30 outputs at most.The digital output can be transistor,relay or mixed output.Analog can reach up to 16 input and 8 output. It has 2 PLC COM port (Rs232 and USB Port), 1 downloading port on HMI.
3. Support several high-speed counting and high-speed pulse. Acceleration and deceleration are independent.The total
high-speed counting and pulse can not exceed 480KHz.
4. 32K steps program capacity,32K power-off retentive registers,support interrupt,linear and circular interpolation,PID self-adjusting.
5. Special encryption.Set password as 12345678 to thoroughly prevent reading data.(PLC only supports 8-bit password encryption)
6. PLC is compatible with programming software GX Developer8.86Q and GX Works2, and HMI is mView software.
7. The network module can be selected according to customer requirements to realize remote control.
More models are supported to customize if bulk order.
-
