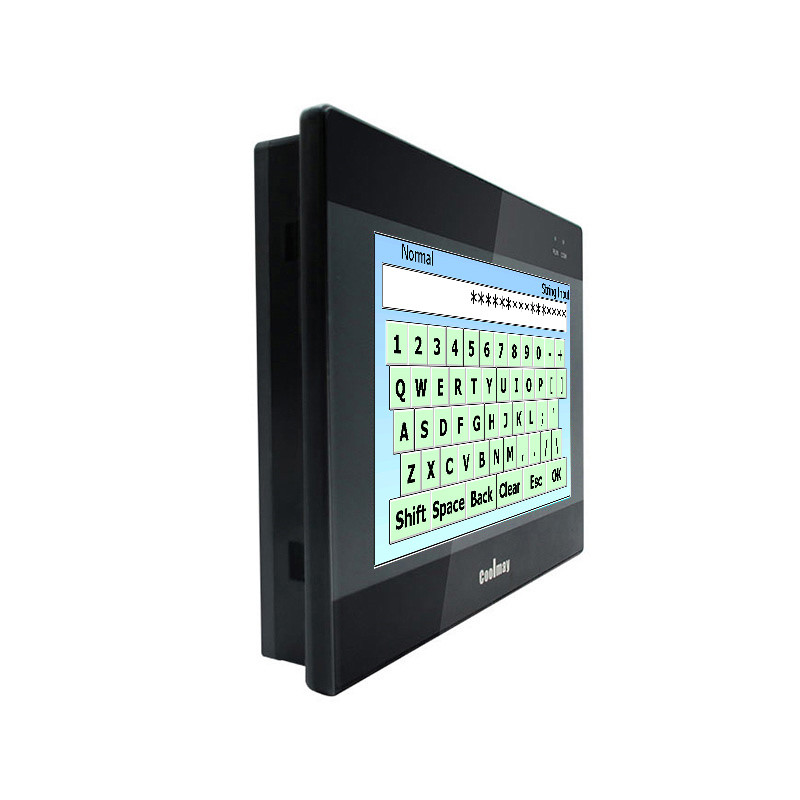

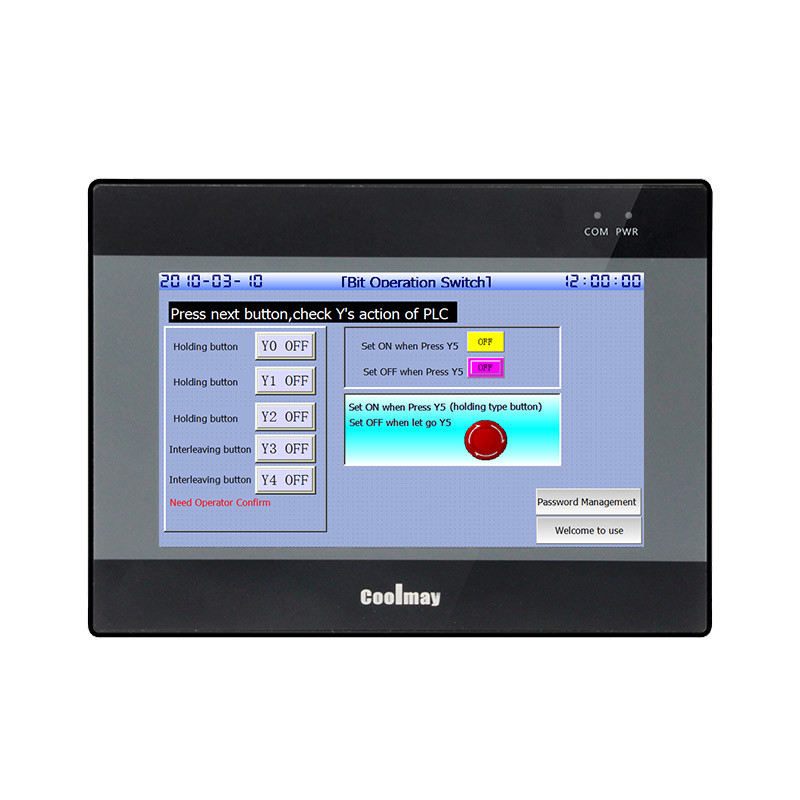

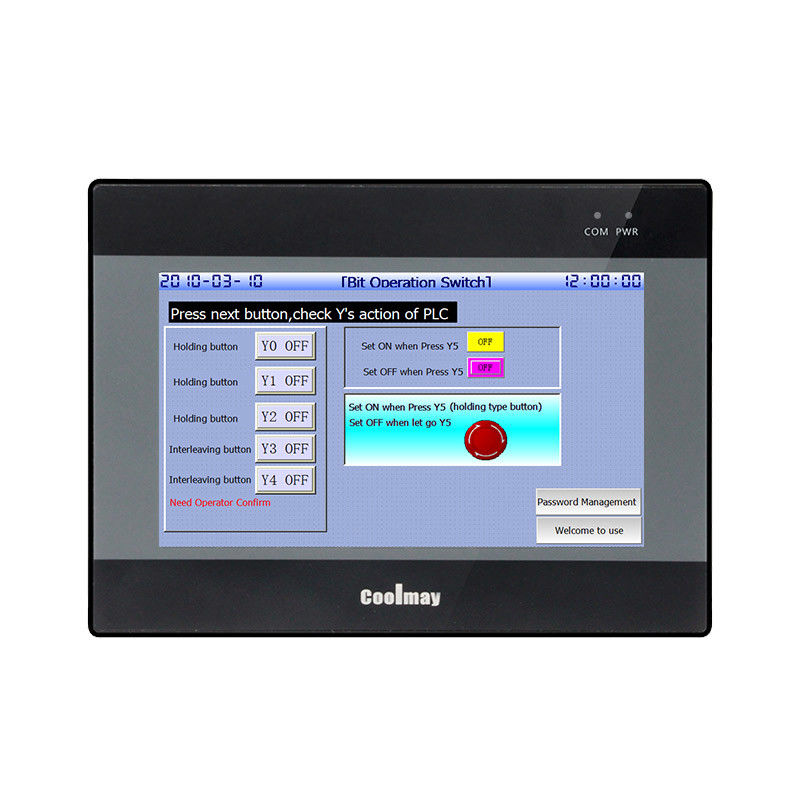

Coolmay 7 Inch HMI TK8070H Human Interface Machine HMI Touch Screen Panel Display
| Brand Name: | COOLMAY |
| Model Number: | TK8070H |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100,000 units per month |
HMI Touch Screen Panel Display
,7 Inch Human Interface Machine
,7 Inch HMI Touch Screen Panel
7 Inch HMI TK8070H Human Interface Machine HMI Touch Screen Panel Display
The TK series man-machine interface supports many communication protocols and can communicate with more than 200 PLCs and controllers on the market. Its application software "mView" is a set of stable and reliable man-machine interface programming software for industrial occasions. With its independent original system design, the running speed has been increased by 200%, and the memory usage has been reduced by 50%.
Parameter:
|
SPECS |
Dimension |
200*146*36mm |
|
Cutout size |
192*138mm |
|
|
Display size |
154*87mm |
|
|
Weight |
Appox. 0.54 kg |
|
|
DISPLAY |
Display |
7.0" TFT |
|
Resolution |
800*480 pixels |
|
|
Brightness |
300cd/m² |
|
|
Contrast ratio |
400:01:00 |
|
|
Backlight |
LED |
|
|
Backlight time |
60,000 hours |
|
|
Display color |
65536 colors |
|
|
Touch type |
4-wire resistive panel |
|
|
STORAGE |
ROM |
NOR Flash 128MB |
|
RAM |
128MB |
|
|
CPU |
1GHz |
|
|

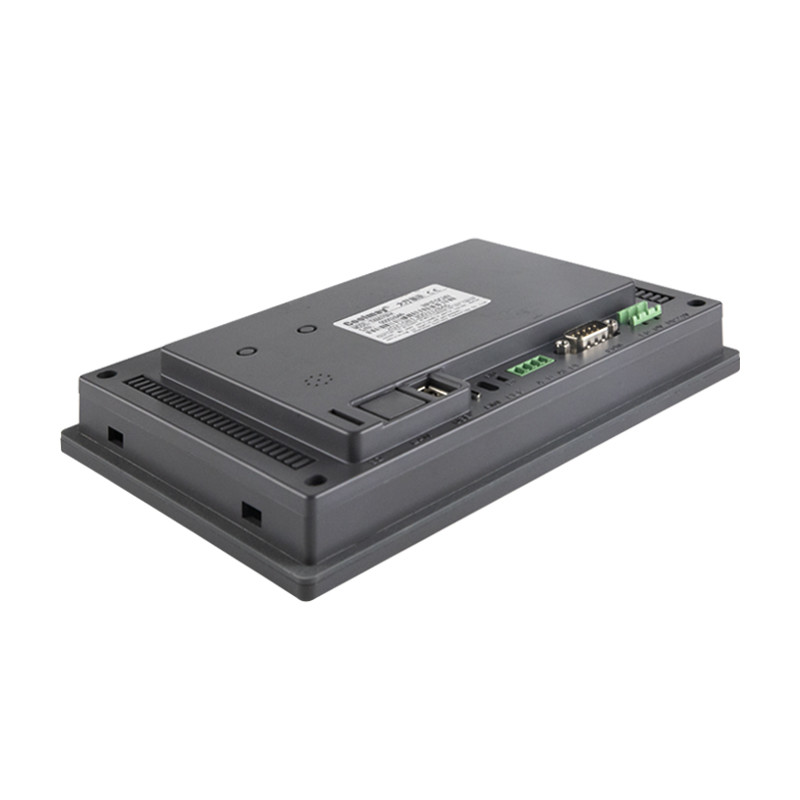

INTERFACE |
Download port |
Type-C, RS232, RS485 |
|
COM port |
1 RS232, 1 RS485 |
|
|
Optional |
1 WIFI (occupy default RS485 port) |
|
|
Protocol |
Support MODBUS, free port and common PLC communication Protocol |
|
|
OTHER |
Calendar |
Yes |
|
Input Voltage |
12-24VDC±10%<150mA @ 24VDC |
|
|
Consumption |
107mA/24V |
|
|
Protection Class |
IP65 (front panel) |
|
|
Temperature |
Ambient environment: 0～50℃ Storage environment: -20～70℃ |
|
|
Humidity |
20%～90% RH |
|
|
Certification |
CE |
|
|
Software |
CoolMay vCool HMI programming software |
|
|
|
Features:
1. IP65 panel protection grade, 65K TFT. It has a brand-new high-brightness and high-contrast LCD display, which can provide a rich and colorful operation interface.
2. Optional WIFI supports 802.11b/g/n wireless communication standard protocol; you can easily upload/download configuration software functions through the network cable.
3. Lightweight and embedded, it can be easily installed in various complex industrial application environments.
4. Conformal coating protection of the motherboard; in various harsh industrial environments, it can also effectively resist impact, humidity, high and low temperatures, and chemical corrosion.
5. Integrate rich industrial interfaces, such as RS232, RS485, USB2.0, WIFI, Ethernet, etc.
6. Onboard 408MHz high-performance 32-bit industrial-grade CPU. It runs fast, has efficient data processing capabilities, and has strong anti-interference capabilities.
7. Data security upgrade, this HMI supports password management function. Users can set passwords for specific registers, buttons and screens, and add permissions to ensure data security.
FAQ:
Q1: Do you provide a cargo warranty?
A: Yes, we provide warranty on all goods.
Q2: Can Coolmay provide technical support?
A: We have been in this field for more than 12 years. If you have any questions, please contact us and we will provide advice from our engineers to help you solve the problem.
Q3: Does Coolmay keep inventory or trade only?
A: We have a large number of warehouses. Keep a large amount of goods in the warehouse to ensure fast delivery.
-
