Coolmay TK8070H HMI Human Machine Interface HMI Touch Screen Panel CPU Dual-core 1GHz
| Brand Name: | Coolmay |
| Model Number: | TK8070H |
| MOQ: | 1unit |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000 pcs per month |
HMI Human Machine Interface
,HMI Touch Screen Panel
,Dual-core 1GHz HMI Touch Screen

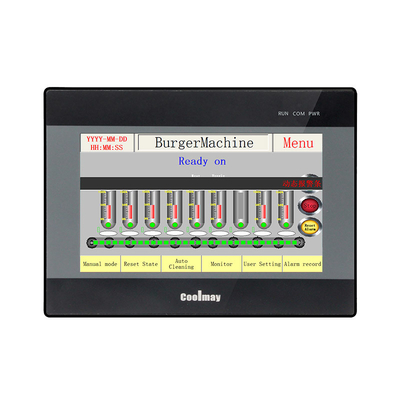

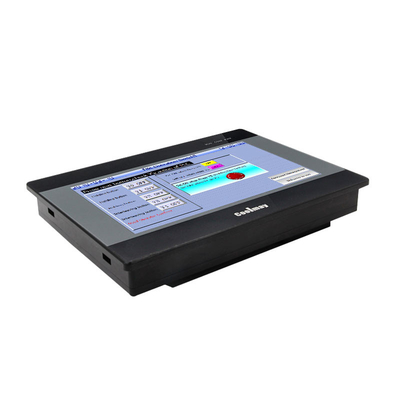

Coolmay TK8070H HMI Human Machine Interface Touchscreen Panel
The human-machine interface is an intelligent terminal with a microprocessor, which is generally used in industrial situations to realize information interaction between humans and machines, including text or graphic display and input. It has rich graphics functions, which can realize various required graphics display, data storage, network communication and other functions, and has high reliability.
Parameter:
| Dimension | 200*146*36mm |
| Cutout size | 192*138mm |
| Display size | 154*87mm |
| Weight | Appox. 0.54 kg |
| Display | 7.0" TFT |
| Resolution |
800*480 pixels |
| Brightness | 300cd/m² |
| Contrast ratio | 400:01:00 |
| Backlight | LED |
| Backlight time | 60,000 hours |
| Display color | 65536 colors |
| Touch type | 4-wire resistive panel |
| ROM | NOR Flash 128MB |
| RAM | 128MB |
| CPU | 32bit CPU Dual-core 1GHz |
| Download port | Type-C, RS232, RS485 |
| COM port | 1 RS232, 1 RS485 |
| Optional | 1 WIFI (occupy default RS485 port) |
| Protocol | Support MODBUS, free port and common PLC communication Protocol |
| Calendar | Yes |
| Input Voltage | 12-24VDC±10%<150mA @ 24VDC |
| Consumption | 107mA/24V |
| Protection Class | IP65 (front panel) |
| Temperature |
Ambient environment: 0～50℃ Storage environment: -20～70℃ |
| Humidity | 20%～90% RH |
| Certification | CE |
|
Software |
CoolMay Vcool |
Festures:
It supports many communication protocols and can communicate with more than 200 PLC and controllers on the market.
IP65 Panel protection grade, 65K TFT
Brand new high-brightness,high-contrast display LCD, providing colorful operation interface.
Optional WIFI
802.11b/g/n wireless communication standard protocol; convenient upload/download function of configuration software via network cable.
Thin and light embedded
Can be easily installed in various complex industrial application environments.
Conformal coating protection for motherboard
In various harsh industrial environments, it is more effective against shock, moisture,high and low temperature, and chemical corrosion.
Integrated rich industrial interfaces
RS232, RS485, USB2.0, WIFI, Ethernet
Onboard Dual-core 1GHz high performance 32Bit industrial grade CPU
has fast running speed,high data processing efficiency and strong anti-interference ability.
Data security upgrade
This series of HMl supports password man-agement functions. Users can set passwords for specific registers, buttons,and screens, and add permissions to ensure data security.
Mounting Size:
TK software "Vcool" editing interface:
- Title bar: Displays the currently opened project path and file name, window number, and window name.
- Menu bar: A menu that displays various commands of CoolMayView. These menus are pull-down menus.
- Standard toolbar: Shortcut buttons for placing some commands. Corresponding buttons and editing tools for displaying files, editing, printing and other functions.
- Design components: Command buttons for component objects.
- Screen management: The management window of the screen used by the project.
- Communication management: engineering designers to manage, set up a window to communicate with PLC or other serial devices.
- Label management: Set labels for system variables and external variables to facilitate users to quickly find the corresponding variables.
- Status bar: Displays the current operation status, human-machine interface parameters, and communication equipment.
-
