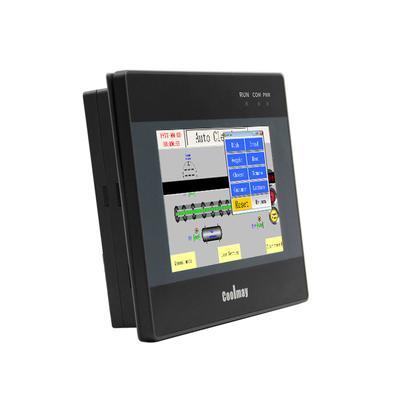

OEM PLC Programming HMI Controller PLC HMI Programming Panel 1 AB Phase 10 KHz 2 ABZ 60KHz
| Brand Name: | Coolmay |
| Model Number: | QM3G-43FH-16MR |
| MOQ: | 1 unit |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000 pcs per month |
PLC Programming HMI Controller
,10 KHz HMI Programming Panel
,PLC HMI Programming Panel
Reasonable Price Plc Programming Controller Oem Reasonable Price Hmi Controller Plc HMI Programming Panel
Parameter:
|
Display |
Dimension |
134*102*34mm |
|
Cutout size |
120*94mm |
|
|
Type |
4.3"TFT |
|
|
Feature |
60K-color resistive touch screen, supports portrait display |
|
|
Memory |
RAM |
64MB |
|
ROM |
NOR Flash 8MB |
|
|
CPU |
32bit CPU 408MHz |
|
|
I/O |
DI/DO |
8DI/8DO |
|
DI/DO level |
Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact |
|
|
DO type and load |
Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM. |
|
|
Analog I/O (optional) |
Max 4AI/2AO |
|
|
AI type (optional) |
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed |
|
|
AO type (optional) |
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed |
|
|
High-speed function |
High-speed counting |
Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
|
High-speed pulse |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
|
|
Connection |
HMI |
Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port |
|
/ |
||
|
PLC |
1 TYPE-C, 1 RS232 (program port) |
|
|
1 RS485 or 2 RS485 COM ports (one of which is changed from the default RS232 port); 1 WIFI (occupy default RS232 port) |
||
|
Software |
HMI |
Coolmay mView HMI Programming Software |
|
PLC |
Compatible with GX Developer 8.86 and WORKS 2 |
Advantage:
◆ Upper computer programming software compatible with Works 2/GX Developer8.86 (supports Ladder diagram and SFC language, does not support structured programming/labels).
◆ Powerful, compatible with FX3G/FX3U/FX3S PLC, high processing speed.
◆ Military level 32 bit CPU adopted, which is faster and more adapted to industrial environment of high electromagnetic interference.
◆ Special encryption, prevent illegal reading thoroughly. 8-bit encryption, 12345678 as password can thoroughly prevent reading of ladder logic program.
◆ Clock supported, rechargeable battery adopted.

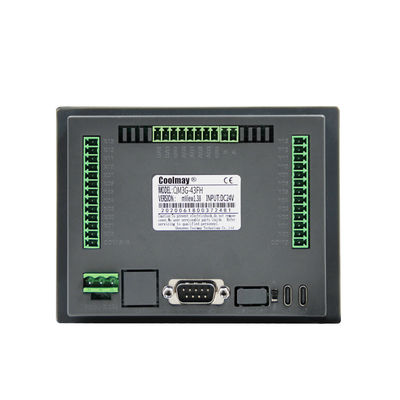

◆ Default with 1 HMI download port, 2 PLC programming ports (RS232 / Type-C), and one USB port.
◆ Convenient wiring. All wiring terminals adopt 3.81 pitch pluggable terminals, which is convenient for customers to use.
◆ Flexible use. More specifications and batches can be customized according to customer requirements.
◆ 32K program capacity, 32K retentive register, support interrupt, linear arc interpolation ,PID auto-tuning, high powerful.
◆ The PLC is compatible with Mitsubishi programming software, and the HMI uses TK series human-machine interface programming software mView.
The analog input precision of Coolmay QM3G series HMI/PLC all-in-one machine is 12 digits. When using it, you can directly read the register value corresponding to each analog quantity. Ambient temperature, only for thermocouple type.
Sampling of analog input:
Number of filter cycles=(R23600~R23615)*PLC scan time, if R23600=1, one PLC scan cycle will sample once, and the value in the first channel analog input will be changed once. The larger the value of R23600~R23615 is set, the more stable the result is.
R23600~R23615 are the number of filtering cycles, the default is 100 (range 2~20000), the data cannot be less than or equal to 0;
D8073 is the smoothing filter coefficient of all analog inputs, the setting range is 0~999.
-
