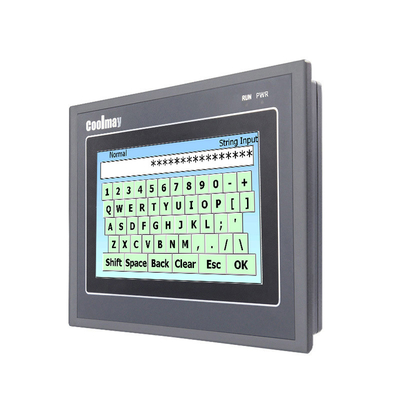

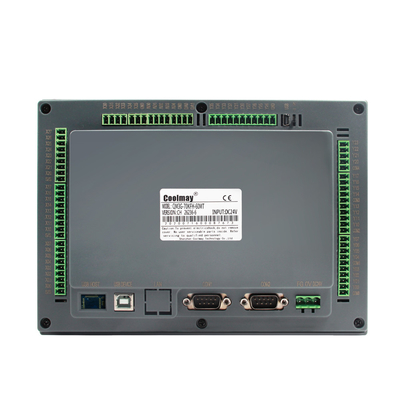

Wifi PLC Controller Digital Programmable Logic Controllers PLC HMI And PLC All In One
| Brand Name: | Coolmay |
| Model Number: | QM3G-70KFH |
| MOQ: | 1 unit |
| Price: | Details Need To Be Negotiated |
| Payment Terms: | T/T,Paypal, Western Union, Credit Card |
| Supply Ability: | 1500 pcs per week |
Digital Programmable Logic Controllers
,Wifi PLC Controller
,Wifi HMI And PLC All In One
China Wholesale New Original Box Wifi Plc Controller Digital Programmable Logic Controllers Plc HMI And PLC all In One
Packing List
- 1*HMI PLC All-in-One
- 1*Free HMI Downloading cable
- 1*Free PLC Progamming cable
Paramaters of HMI Part:
size of HMI: 7 inch
cutout size: 217*154mm
Resoution:800*480
RAM:NOR Flash 16MB
ROM:64MB
CPU:32bit CPU 408MHz
com ports:1*type B download port, 1*RS232
Software: mView
Paramters of PLC Part:
Digital I/O: Max 30DI/30DO(Max 28R)
I/O level: default NPN input and output, MR can be customized PNP input PNP output, MT can be customized PNP input and NPN output
DO type: transistor(MT) or relay(MR) or mixed(MRT)
Analog I/O(optional): max 16AI/8AO
AI(Optional):
AO(Optional):
com port:1*mini USB,1*RS485,1*RS232
software: WORKS 2/ GX developer 8.86
We are committed to providing you with a variety of solutions (Communication Port, Analog, Temperature,Weighing, etc.)
|
Model
|
QM3G-70KFH
|
|
Dimension
|
226*163*35.6mm
|
|
Cutout size
|
217*154mm
|
|
Power
Consumption
|
6-7W
|
| HMI | |
|
Feature
|
60K-color resistive touch screen, supports portrait display
|
|
Type
|
7.0"TFT
|
|
Display size
|
154*87mm
|
|
Resolution
(pixels)
|
800*480
|
|
RAM
|
NOR Flash 16MB
|
|
ROM
|
64MB |
| CPU |
32bit CPU 408MHz
|
|
Default
|
Type-B HMI download port (can download PLC program
through the USB penetrating function), RS232
|
| Optional com port |
1 RS485 (changed from default RS232)
|
| software |
Coolmay mView HMI Programming Software
|
| PLC | |
|
I/O
|
Max 30DI/30DO (max 28MR)
|
|
I/O level
|
Input: Passive NPN, public terminal isolated
Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact
|
|
DO type
|
Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT)
(Relay output: max load 5A/ transistor output: max load 500mA)
|
|
High-speed
counting
|
Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,
or 2 ABZ 60KHz + 1 AB phase 10 KHz
|
|
High-speed pulse
|
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.
High-speed counting + high-speed pulse < 480KHz
|
|
Default
programming port
|
1 Mini USB, 1 RS232
|
|
Optional COM port
|
1 Rs485 or 2 Rs485 COM ports (one is changed from the
default Rs232 port)
|
|
CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232 port)
|
|
|
Analog I/O
(optional)
|
Max 16AI/8AO
|
|
AI type (optional)
|
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed
|
|
AO type (optional)
|
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/
-5~5V/ -10~10V (2AO for 1 minus voltage)
|
|
Software
|
Compatible with Mitsubishi GX Developer 8.86 and WORKS 2
|
Real Application
-
