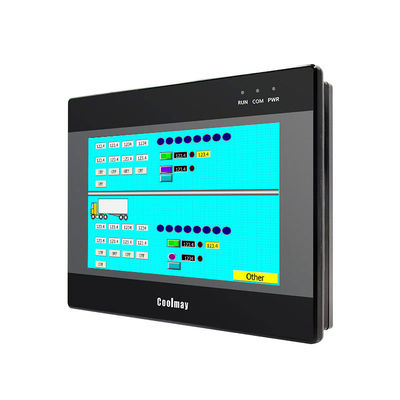

Coolmay 7-Inch HMI PLC All-in-One QM3G-70FH
This programmable logic controller with touch screen integrates HMI and PLC functionality for power station industry applications, providing high-performance industrial control solutions that save time and costs while improving operational efficiency.

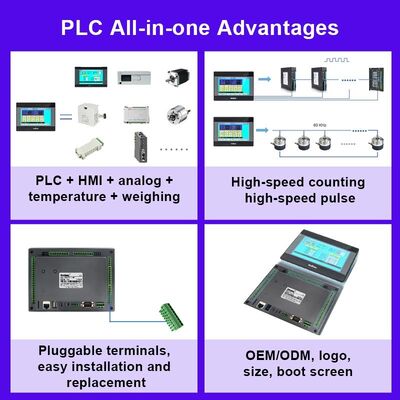

Key Features
- Supports high-speed counting and high-speed pulse operations with independent acceleration/deceleration (total ≤ 480KHz)
- 32K steps program capacity with 32K power-off retentive registers
- Interrupt support, linear/circular interpolation, and PID self-adjusting
- 8-bit password encryption for data protection
- Compatible with GX Developer 8.86Q and GX Works2 programming software
- Optional network modules for remote control capabilities
- Custom models available for bulk orders
Technical Specifications
| Model | QM3G-70FH |
| Dimensions | 200 × 146 × 36 mm |
| Cutout Size | 192 × 138 mm |
| Input Power | 24VDC |
| Power Consumption | 6-7W |
HMI Specifications
| Display Type | 7.0" TFT resistive touch screen |
| Display Size | 154 × 87 mm |
| Resolution | 800 × 480 pixels |
| Colors | 60K colors with portrait display support |
| RAM | 64MB (inquire for historical data storage) |
| ROM | NOR Flash 16MB |
| CPU | 32-bit CPU 408MHz |

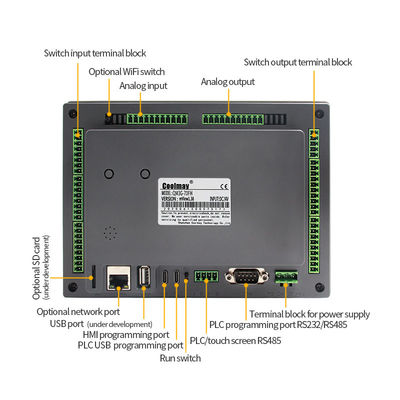

| COM Ports | Type-C HMI download port, RS232 port |
| Software | Coolmay TPWorks HMI Programming Software |
PLC Specifications
| I/O Level | Input: Passive NPN, public terminal isolated |
| Output Types | Transistor output: Low level NPN, COM connect to negative Relay output: Normally open dry contact |
| DO Type & Load | MT: 2A/point, 4A/4 points COM; 0.5A/point, 0.8A/4 points COM, 1.6A/8 points COM MR: 2A/point, 4A/4 points COM, 5A/12 points COM |
| High-Speed Counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10KHz |
| High-Speed Pulse (MT models) | 8 channels, Y0-Y3: 100KHz, Y4-Y7: 10KHz High-speed counting + high-speed pulse < 480KHz |
| COM Ports | 1× TYPE-C, 1× RS232, 1× RS485 |
| Software | Compatible with GX Developer 8.86 and GX WORKS 2 |
Detailed information available in: "Coolmay QM3G-FH All-in-One User Manual", "Coolmay CX3G/FX3GC PLC Programming Manual", "Coolmay TP HMI User Manual"
Packaging & Shipping
Products undergo 1-3 days of testing and are packaged in carton boxes.
Frequently Asked Questions
PLC Transistor and Relay Usage Precautions
- PLC output is common cathode with theoretical 1A rating (actual use < 500mA)
- COM wiring is negative - use 24V voltage with no voltage output when used as switch
- External relays require separate power supply
- Relay contact life: theoretical 300,000 cycles
- External load should not exceed 5A theoretical value
- Frequent full load current may reduce service life
Output Type Selection Guidelines
- MT: Transistor output
- MR: Relay output
- MRT: Relay-transistor mixed output
Transistor vs. Relay Output Comparison:
- Current Load: Transistor: 500mA max; Relay: 5A max (3A for EX2N(S)/DX2N(S) series)
- Output Power: Transistor: DC24V only; Relay: DC24V or AC220V
- Applications: Use transistor output for pulse-driven applications (stepper motors) or active output switches
- Recommendation: When both options are available, transistor output is preferred due to no contact life limitations and longer service life when current limits are observed
