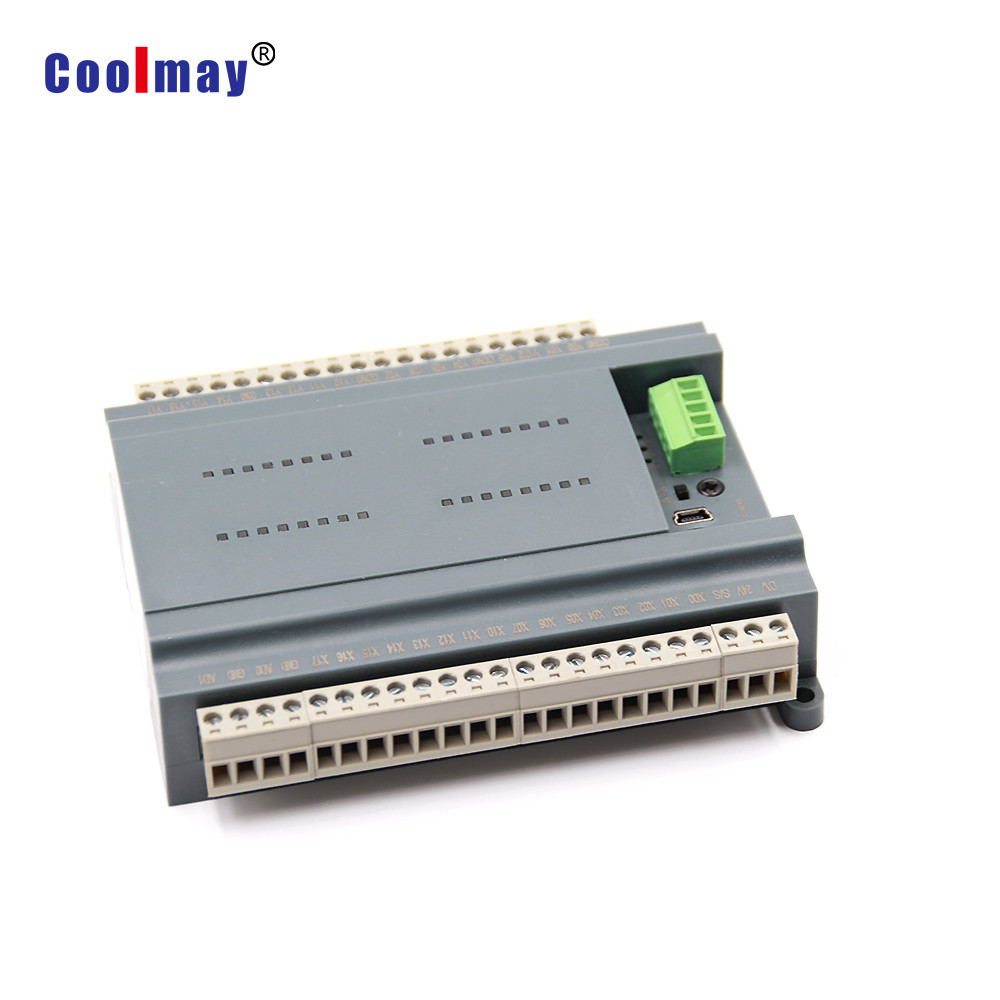

PLC Programmable Logic Controller 24DI Input 24DO Output
| Brand Name: | Coolmay |
| Model Number: | CX3G-24MT |
| MOQ: | 1 Unit |
| Price: | Details Need To Be Negotiated |
| Payment Terms: | TT,Paypal, Western Union, Credit Card |
| Supply Ability: | 15000 Units Per Week |
Detail Information
Place of Origin:
China
Certification:
CE Certificate
Cutout Size:
192*99mm
Digital I/O:
24DI 24DO
Analog(Optional):
Max 8AI/4AO
Com Ports:
2*RS485, 1*232,1*mini Type B Port
Packaging Details:
Carton
Supply Ability:
15000 Units Per Week
Highlight:
PLC Programmable Logic Controller
,24DI Programmable Logic Controller
,24DO Programmable Logic Controller
Product Description
PLC Programmable Logic Controller 24DI Input 24DO Output
- PLC controller*1
- PLC programming cable*1
Features
-
Highly integration. At most 24DI/24DO (transistor output,or relay output or mixed output), 8AI/4AO (Optional)
-
Comes with 2 PLC programming ports: Mini typeB usb port (speed of reading and downloading is more faster)
-
and RS 232 (8-hole mouse head female seat), normally have 2 RS 485 ports.
-
Support multi-channels high-speed counting and high-speed pulse.
-
Support special encryption ((Attention:Only supports 8-bit password encryption)
-
32K steps of program capacity, 32K power-failed holding registers which support interrupting, linear arc interpolation and PID auto-tuning.
-
The network module can be selected according to customer requirements to realize remote control.
Specification
| Model | CX3G-48M |
|
Dimension
|
200*90*36mm
|
|
Cutout size
|
192*99mm
|
|
Installation
|
Fixed hole installation and DIN-Rail (35mm )
|
|
I/O level
|
Input: Passive NPN, public terminal isolated
Transistor output: NPN
Relay output: Normally open dry contact
|
|
Digital I/O
|
24DI/24DO
|
|
DO type
|
Relay(MR) or transistor(MT) or mixed(MRT)
(Relay output: max load 5A/ transistor output: max load 500mA)
|
|
High speed
counting
|
Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz
|
|
High speed
pulse
|
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz
High-speed counting + high-speed pulse < 480KHz
|
|
Analog I/O
(optional)
|
12AI/8AO
|
|
AI type
(optional)
|
Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
0~10V/ 0~5V/ 0-20mA/ 4-20mA/ -5V~5V/ -10V~10V
|
|
AO type
(optional)
|
0~10V/ 0-~5V/ 0~20mA/ 4~20mA
-5~5V/ -10~10V (2DA for 1 minus voltage)
|
|
Default
|
1 Mini type B USB programming port, 1 RS232 programming port (Interface terminal is mouse female port with 8 holes), 2 RS485 COM ports
|
|
Optional
|
Default 2 RS485 COM ports can be customized as
1 RS485, 1 RS232 COM ports,
or 1 RS485 COM port, 1 CAN (2.0A/B),
or 1 RS232 COM port, 1 CAN (2.0A/B)
CX3G-48M can add Ethernet port.
|
|
Software
|
Compatible with WORKS 2
|
Purchase Note
- It is Suggested to use WORKS 2 For CX3G PLC, which it is better compatible.
- ODM and OEM are support if order can be reach request quantity.
- More details you can offer as DI/DO,AI/AO, high speed requirements, com ports...... ,it will be more fast to decide final model.
- If you need special cable, please advise.
