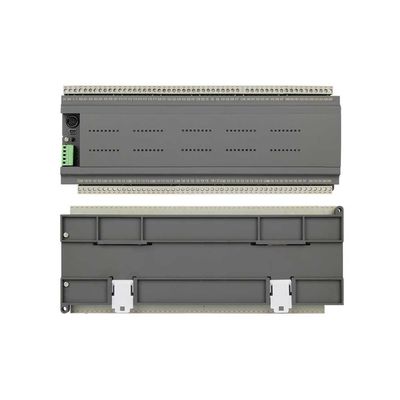

Stepper Servo Motor PLC Logic Controller 32DI 32DO For Industrial Machine

Place of Origin China
Brand Name Coolmay
Certification CE, ISO
Model Number CX3G-64MT-4P-485/485
Minimum Order Quantity 2 units
Price US$99~299 per unit
Packaging Details Packed with standard carton box
Delivery Time 3-5 working days
Payment Terms T/T, Western Union
Supply Ability 100,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product PLC Logic Controller I/O 32DI/32DO
Input 24VDC Output Transistor Outputs
Analog Optional Max 16AD/8DA HS Output Y0~Y3 100KHz, Y4~Y7 10KHz
COM Ports RS232, RS485 Software GX Works2
High Light

32DI PLC Logic Controller

,

32DO PLC Logic Controller

,

32DO logic controller

Leave a Message
Product Description

Stepper Servo Motor PLC Logic Controller 32DI 32DO For Industrial Machine

PLC Logic Controller Stepper Servo Motor High Speed Pulse Programmable Controllers Industrial Machine Control





A PLC program is written on a computer with PLC software and then is downloaded to the controller. Coolmay PLC programming software offers programming in Ladder Logic. Ladder Logic is the traditional programming language. It mimics circuit diagrams with “rungs” of logic read left to right. Each rung represents a specific action controlled by the PLC, starting with an input or series of inputs (contacts) that result in an output (coil). Because of its visual nature, Ladder Logic can be easier to implement than many other programming languages.



Specifications



Model CX3G-64MT-4P-485/485
Dimension 290*90*36mm
Cutout size 282*99mm
Installation Fixed hole installation and DIN-Rail (35mm )
Digital I/O 32DI/32DO
DO type Transistor outputs
High speed counting Single phase 6 channel 60KHz
High speed pulse 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz
Default

1 Mini type B USB programming port, 1 RS232 programming port

(Interface terminal is mouse female port with 8 holes), 2 RS485 COM ports

Software Compatible with WORKS 2



Features

  • Highly integration. Coolmay PLC integrated DI/DO, AI/AO, Ethernet function, communication into one small device.
  • Comes with 2 PLC programming ports: Mini typeB usb port (speed of reading and downloading is more faster)and RS 232(8-hole mouse head female seat), normally have 2 RS 485 ports, both RS 232 and CAN are optional.
  • Support special encryption.Setting 12345678 as password can thoroughly prevent the data from being read.(Attention:Only supports 8-bit password encryption)
  • 32K steps of program capacity, 32K power-failed holding registers
  • Support high speed inputs and outputs
  • Support interrupting, linear arcinterpolation and PID auto-tuning.
  • Use 5.0mm pitch pluggable terminals for easy wiring, and use DlN rail (35mm wide) and mounting holes forinstalling.
  • Compatible with FX3G/FX2UFX3S series PLC, operation speed more fast.



Packing and Shipping

  • Lead time: 3 days for samples, 30~60 days for bulk order.
  • Packing: standard export carton 5 layers
  • Shipping: DHL/ UPS/ FedEx/ EMS, etc..



OEM & ODM

MOQ is 200 units. More details, please contact us personally.



Wiring

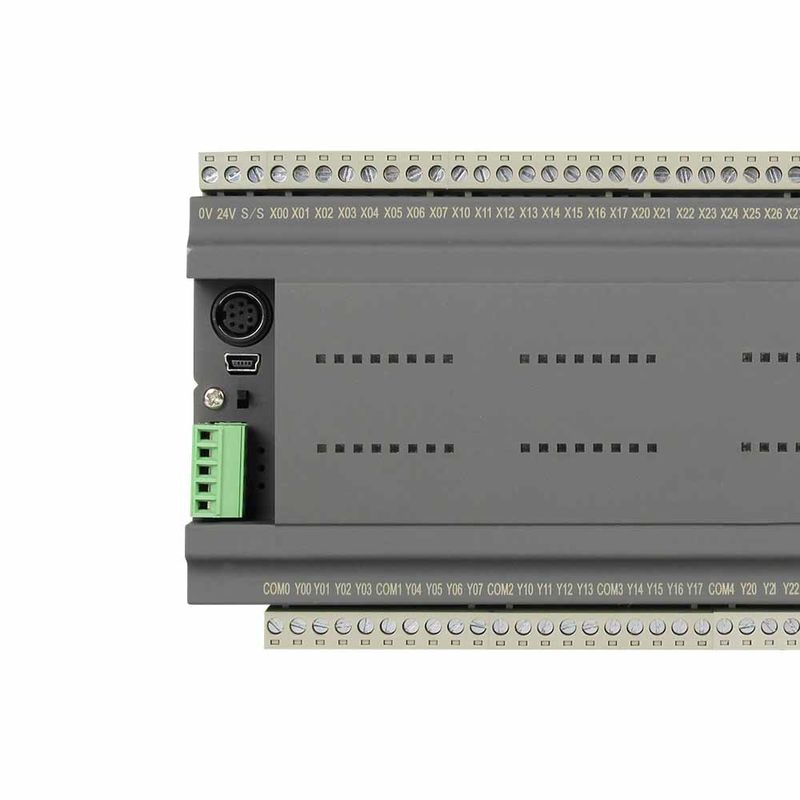

  • 3G PLC Pin Definition

Stepper Servo Motor PLC Logic Controller 32DI 32DO For Industrial Machine 0Stepper Servo Motor PLC Logic Controller 32DI 32DO For Industrial Machine 1

  • COM port optional

Stepper Servo Motor PLC Logic Controller 32DI 32DO For Industrial Machine 2

  • Terminals wiring standard: 22-14AWG wire. This series terminals are all pluggable terminals.
  • Wiring with Coolmay MT HMI

Stepper Servo Motor PLC Logic Controller 32DI 32DO For Industrial Machine 3
