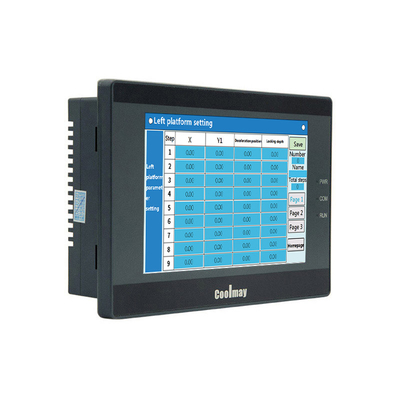

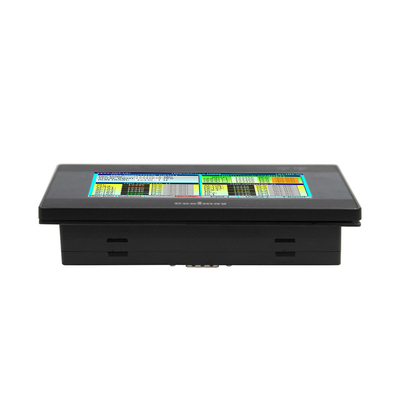

Human Machine Interface Hmi PLC All-In-One 4AI PID Self Tunning Temperature Controller With WIFI

  • Human Machine Interface Hmi PLC All-In-One 4AI PID Self Tunning Temperature Controller With WIFI
  • Human Machine Interface Hmi PLC All-In-One 4AI PID Self Tunning Temperature Controller With WIFI
  • Human Machine Interface Hmi PLC All-In-One 4AI PID Self Tunning Temperature Controller With WIFI
Place of Origin China
Brand Name Coolmay
Certification CE
Model Number QM3G-50FH
Minimum Order Quantity 1 unit
Price $93~$189 unit
Packaging Details Carton
Delivery Time within 3 working days after payment confirmed
Payment Terms T/T,Paypal, Western Union, Credit Card
Supply Ability 1500 pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Digital Points Max 12DI/12DO Analog Points （Optional） Max 4AI/2AO
High Speed Pulse 4*100Khz+4*10Khz Ethernet(Optional)) On PLC
WIFI(Optional) On PLC Com Ports RS232,RS485,mini USB
High Light

4AI Hmi PLC All-In-One

,

PID Hmi PLC All-In-One

,

WIFI Hmi PLC All-In-One
Leave a Message
Product Description

Human Machine Interface Hmi PLC All-In-One 4AI PID Self Tunning Temperature Controller With WIFI​



Packing List

  • 1*HMI PLC All-in-One
  • 1*Free HMI Downloading cable
  • 1*Free PLC Progamming cable


Paramaters of HMI Part:



size of HMI: 5 inch

cutout size: 143*86mm

Resoution:800*480

RAM:NOR Flash 8MB

ROM:64MB

CPU:32bit CPU 408MHz

com ports:1*type C download port, 1*RS232

Software: mView





Paramters of PLC Part:



Digital I/O: Max 12DI/12DO

I/O level: default NPN input and output, MR can be customized PNP input PNP output, MT can be customized PNP input and NPN output

DO type: transistor(MT) or relay(MR) or mixed(MRT)

Analog I/O(optional): max 16AI/8AO

AI(Optional):

Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed

AO(Optional):

0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/-5~5V/ -10~10V (2AO for 1 minus voltage)

com port:1*mini USB,1*RS485,1*RS232

software: WORKS 2/ GX developer 8.86



We are committed to providing you with a variety of solutions (Communication Port, Analog, Temperature,Weighing, etc.)









Model
QM3G-70KFH
Dimension

226*163*35.6mm
Cutout size
217*154mm
Power
Consumption
6-7W
HMI
Feature
60K-color resistive touch screen, supports portrait display
Type
7.0"TFT
Display size
154*87mm
Resolution
(pixels)
800*480
RAM
NOR Flash 16MB
ROM
 64MB
CPU
32bit CPU 408MHz
Default
Type-B HMI download port (can download PLC program
through the USB penetrating function), RS232
Optional com port
1 RS485 (changed from default RS232)
software
                              Coolmay mView HMI Programming Software
PLC
I/O
Max 30DI/30DO (max 28MR)
I/O level
Input: Passive NPN, public terminal isolated
Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact
DO type
Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT)
(Relay output: max load 5A/ transistor output: max load 500mA)
High-speed
counting
Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,
or 2 ABZ 60KHz + 1 AB phase 10 KHz
High-speed pulse
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.
High-speed counting + high-speed pulse < 480KHz
Default
programming port
1 Mini USB, 1 RS232
Optional COM port
1 Rs485 or 2 Rs485 COM ports (one is changed from the
default Rs232 port)
CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232 port)
Analog I/O
(optional)


Max 16AI/8AO
AI type (optional)
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed
AO type (optional)
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/
-5~5V/ -10~10V (2AO for 1 minus voltage)
Software
Compatible with Mitsubishi GX Developer 8.86 and WORKS 2



Human Machine Interface Hmi PLC All-In-One 4AI PID Self Tunning Temperature Controller With WIFI 0

Human Machine Interface Hmi PLC All-In-One 4AI PID Self Tunning Temperature Controller With WIFI 1



Real Application



Human Machine Interface Hmi PLC All-In-One 4AI PID Self Tunning Temperature Controller With WIFI 2Human Machine Interface Hmi PLC All-In-One 4AI PID Self Tunning Temperature Controller With WIFI 3



FAQ:



1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design
and workers for produce and operate etc, we could support you one-stop products and service.
2) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western Union ect.
