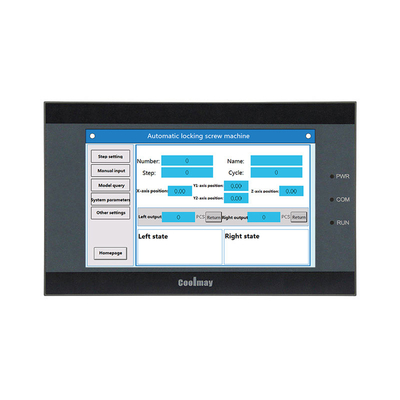

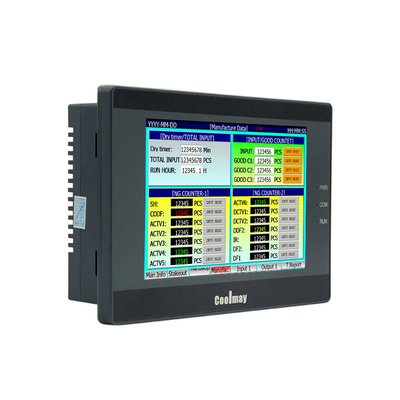

5inch HMI PLC Programming Control Panel PLC HMI Combo With Type C
| Brand Name: | Coolmay |
| Model Number: | QM3G-50FH-24MT-485P |
| MOQ: | 1 unit |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000 pcs per month |
PLC HMI Combo With Type C
,5inch PLC HMI Combo
,HMI PLC Programming Control Panel
5inch HMI PLC Programming Control Panel PLC HMI Combo With Type C
Advantage:
◆ Military level 32 bit CPU adopted, which is faster and more adapted to industrial environment of high electromagnetic interference.
◆ Special encryption, prevent illegal reading thoroughly. 8-bit encryption, 12345678 as password can thoroughly prevent reading of ladder logic program.
◆ Clock supported, rechargeable battery adopted.
◆ Convenient wiring. All wiring terminals adopt 3.81 pitch pluggable terminals, which is convenient for customers to use.
◆ Flexible use. More specifications and batches can be customized according to customer requirements.
◆ 32K program capacity, 32K retentive register, support interrupt, linear arc interpolation ,PID auto-tuning, high powerful.
◆ The PLC is compatible with Mitsubishi programming software, and the HMI uses TK series human-machine interface programming software mView.
Parameter:
Display | Dimension | 151*96*36mm |
Cutout size | 143*86mm | |
Type | 5"TFT | |
Feature | 60K-color resistive touch screen, supports portrait display | |
Memory | RAM | 64MB |
ROM | NOR Flash 8MB | |
CPU | 32bit CPU 408MHz | |
I/O | DI/DO | Max 12DI/12DO |
DI/DO level | Input: Passive NPN, public terminal isolated | |
DO type and load | Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM. | |
Analog I/O | Max 4AI/2AO | |
AI type (optional) | Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ | |
AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed | |
High-speed function | High-speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, |
High-speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. | |
Connection | HMI | Type-C HMI download port |
/ | ||
PLC | 1 TYPE-C, 1 RS232 (program port) | |
1 RS485 or 2 RS485 COM ports (one of which is changed from the default RS232 port); | ||
Software | HMI | Coolmay mView HMI Programming Software |
PLC | Compatible with Mitsubishi GX Developer 8.86 and WORKS 2 |
The use of this part involves the query of the firmware version. The PLC main and minor version numbers are stored in the special registers D8001 and D8101 respectively. If necessary, please query the values of D8001 and D8101.
The analog input precision of Coolmay QM3G series HMI/PLC all-in-one machine is 12 digits. When using it, you can directly read the register value corresponding to each analog quantity. Ambient temperature, only for thermocouple type.
-
