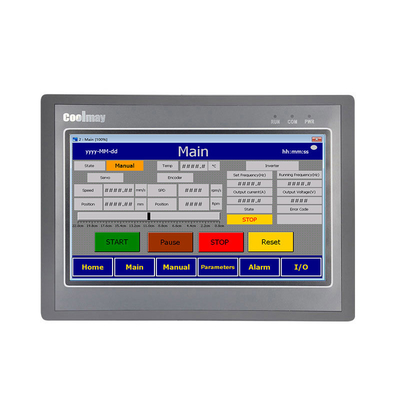

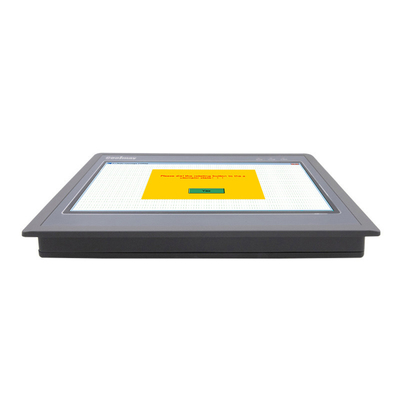

Coolmay 10.1 Inch TFT PLC HMI All In One HMI Touch Screen PLC Controller

Place of Origin CHINA, GONGDONG
Brand Name Coolmay
Certification CE
Model Number EX3G-100H
Minimum Order Quantity 1 peice
Price Negotiable
Packaging Details carton
Delivery Time 3-8 works days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 15000 Units Per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Display Size 222*133mm Type 10.1” TFT
COM Port 1 Type-B (HMI Download Port); 1 USB 2.0 Por Analog I/O (optional) Max 16AI/8AO
High Light

10.1'' TFT PLC HMI All In One


HMI Touch Screen PLC Controller


16AI/8AO HMI Touch Screen PLC

Leave a Message
Product Description

Coolmay 10.1 Inch PLC HMI All In One PLC HMI Touch Screen Plc Controller New And Original


Coolmay HMI/PLC all-in-one machine has innovatively realized the high integration of HMI and PLC switch, analog and temperature in hardware. It can be used in various occasions requiring PLC control without external PLC and other expansion modules. The highly integrated industrial automation control solution uses pluggable terminals, which greatly facilitates the disassembly, installation and maintenance of terminal customers. It can be replaced directly when it fails, achieving "zero travel expenses" and free on-site maintenance.





1. Structure

Highly integrated, compact structure, cost saving and space saving.

2. Programming Software

HMI: Adopts CoolMayHMI touch screen programming software.

PLC: Compatible with Mitsubishi Works 2/ GX Developer 8.86.

3. Input

Digital input: Max 30 channels digital input.

Analog input: Up to 5 AD inputs can be installed.

Optional: E/K/S/T/J thermocouple/PT100/PT1000/NTC10K/NTC50K/NTC100K/ 0~10V/0~5V/0~20mA/4-20mA/ 5V~5V/-10V~10V or mixed type and other special specifications (thermocouple supports negative temperature).

4. High-speed counting input

Single phase 6 channels 60KHz high-speed counting or 2 channels AB (Z) phase 60KHz plus 1 channel AB phase 10KHz.

5. Output

Digital output: Max 30 outputs (Y0~Y3 are MOS tubes).

Option: Relay(MR) or transistor(MT) or mixed(MRT); Relay output: max load 5A, transistor output: max load 500mA.

Analog quantity: 2 DA outputs can be installed at most.

Option :0~10V/0~5V/0~20mA/4~20mA/mixed/-5~5V/-10~10V(2DA for 1 minus voltage).


  2. Memory RAM 128MB
    ROM 128MB
    CPU CORTEX A8 720MHz-1GHz
    I/O DI/DO 12DI/12DO or 20DI/18DO or 24DI/20DO or 30DI/30DO

    Input: Passive NPN, public terminal isolated

    Transistor output: Low level NPN, COM connect to negative;

    Relay output: Normally open dry contact

    DO type

    Relay(MR) or transistor(MT) or mixed(MRT)

    (Relay output: max load 5A/ transistor output: max load 500mA)

    Analog I/O (optional) Max 16AI/8AO
    AI type (optional) Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ -5V~5V/ -10V~10V/ 0~20mA/ 4~20mA/ mixed
    AO type (optional)

    0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/

    -5~5V/ -10~10V (2DA for 1 minus voltage)

    High-speed function High-speed counting

    Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,

    or 2 ABZ 60KHz + 1 AB phase 10 KHz

    High-speed pulse

    8 channels,Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

    High-speed counting + high-speed pulse < 480KHz

    Connection HMI 1 HMI download port,1 USB 2.0 port

    1 RS485 or 1RS232 port

    Ethernet port (can not coexist with PLC Ethernet port)

    PLC 1 Mini type B USB port, 1 Rs232 port (Program port,also can be used as COM port)
    1 Rs485 or 2 Rs485 COM ports (one is changed from the default Rs232 port), CAN (2.0A/B), Ethernet port (can not coexist with HMI Ethernet port), WIFI (will occupy the default Rs232)
    Software HMI CoolMayHMI HMI programming software
    PLC Compatible with Mitsubishi GX Developer8.86 and WORKS 2


Maintenance and service

  • Your products will be 18-month warranty excluding artificial damage.
  • You would receive unlimited support via video, phone or email.
  • OEM/ODM is supported, MOQ is 200 sets. More modules or functions can be customized as per your requirements.
