Digital HMI PLC All In One Industrial Machine 4AD 2DA Integrated HMI PLC

Place of Origin CHINA, GUANGDONG
Brand Name Coolmay
Certification CE
Model Number QM3G-50FH
Minimum Order Quantity 1 peice
Price Negotiable
Packaging Details carton
Delivery Time 3-8 works days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 15000 Units Per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
High-speed Counting Single Phase 6 Channel 60KHz, Or 2 AB 60KHz + 1 AB 10KHz, Or 2 ABZ 60KHz + 1 AB Phase 10 KHz Default Programming Port 1 TYPE-C, 1 RS232
Analog I/O (optional) Max 4AI/2AO Power Consumption 7W
CPU 32bit CPU 408MHz I/O Max 12DI/12DO
High Light

HMI PLC All In One Industrial Machine


Digital HMI PLC All In One


Industrial Integrated HMI PLC

Leave a Message
Product Description

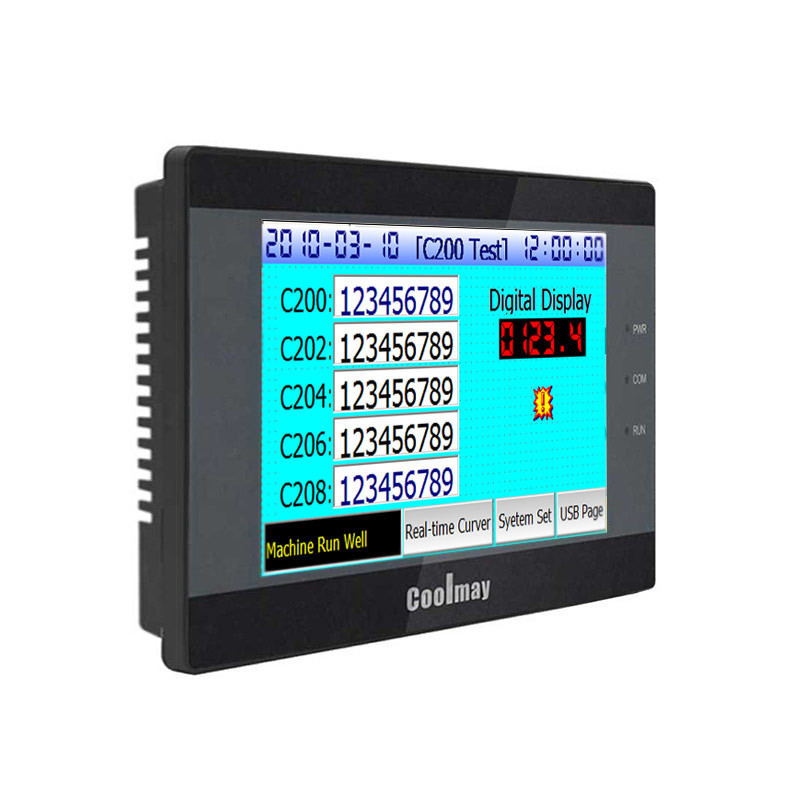

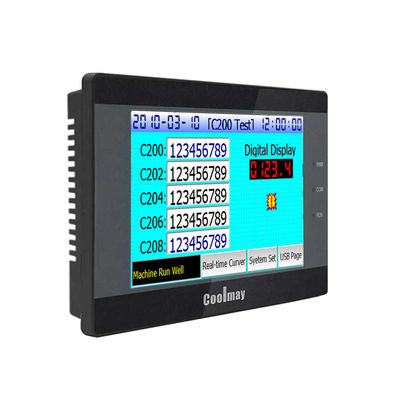

HMI PLC All In One Industrial Machine 4AD 2DA Integrated HMI PLC Digital Programmable Logic Plc Controllers



QM3G-50FH Compatible with FX3G/FX3U/FX3S PLC,fast operation.
Up to 12DI/12DO, 4AD/2DA.
Default 2 PLC programming ports, 1 HMl download port.
Supports multi-channel high speed count and pulse functions.
Supports OEM and ODM.
Combined with Coolmay network modules can realize remotely control.

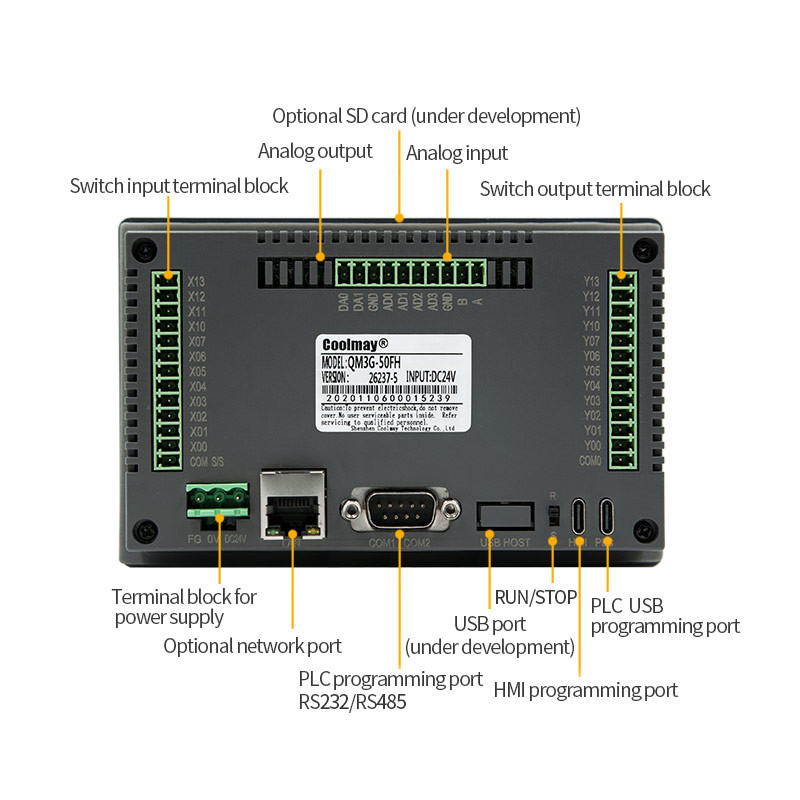

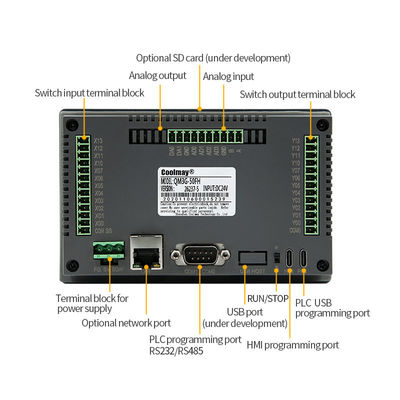

  1. Digital HMI PLC All In One Industrial Machine 4AD 2DA Integrated HMI PLC 0
  2. QM3G-50FH:
  3. Dimension:150*96*36mm
  4. Cutout size:143*86mm
  5. Power Consumption:5-7W
  6. Feature: 60K-color resistive touch screen, supports portrait display
    RAM: NOR Flash 8MB
    ROM: 64MB
    CPU : 32bit CPU 408MHz
    Default:Type-C HMI download port (can download PLC program through the USB penetrating function),RS232port
    HMI software : mView Software
    I/O: Max 12DI/12DO
    I/O level: Input: Passive NPN, public terminal isolated
                   Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact
    DO type: Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT)
                  (Relay output: max load 5A/ transistor output: max load 500mA)
    High-speed counting: Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz
    High-speed pulse: 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.
                                 High-speed counting + high-speed pulse < 480KHz
    Default programming port: 1*Type C port, 1 RS232
                                                 Optional COM port 1 RS485 or 2 RS485 COM ports (one is changed from the default RS232 port)
    Analog I/O(optional) : Max 4AI/2AO
    AI type (optional): Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
                                     0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed
    AO type (optional): 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/
    PLC Software:Compatible with Mitsubishi GX Developer 8.86 and WORKS 2
Digital HMI PLC All In One Industrial Machine 4AD 2DA Integrated HMI PLC 1



By courier, door to door

For samples, the package will be delivered by DHL/UPS/FedEx/EMS express. Usually it will take 3-7 days to your location.


Post service

If you are not hurry but need economical delivery, we can go with packet channel. The delivery time depends on your location.


Air shipping or by sea

If bulk order, the packages will be delivered by air shipping or by ship.




Q: Do you provide a cargo warranty?
Yes, we provide warranty on all goods.

Q: Can Coolmay provide technical support?
A: We have been in this field for more than 12 years. If you have any questions, please contact us and we will provide advice from our engineers to help you solve the problem.

Q: Does Coolmay keep inventory or trade only?
A:We have a large number of warehouses. Keep a large amount of goods in the warehouse to ensure fast delivery.
Q: What is your MOQ?
A: We provide you with a small order quantity for each item, depending on your specific order!
