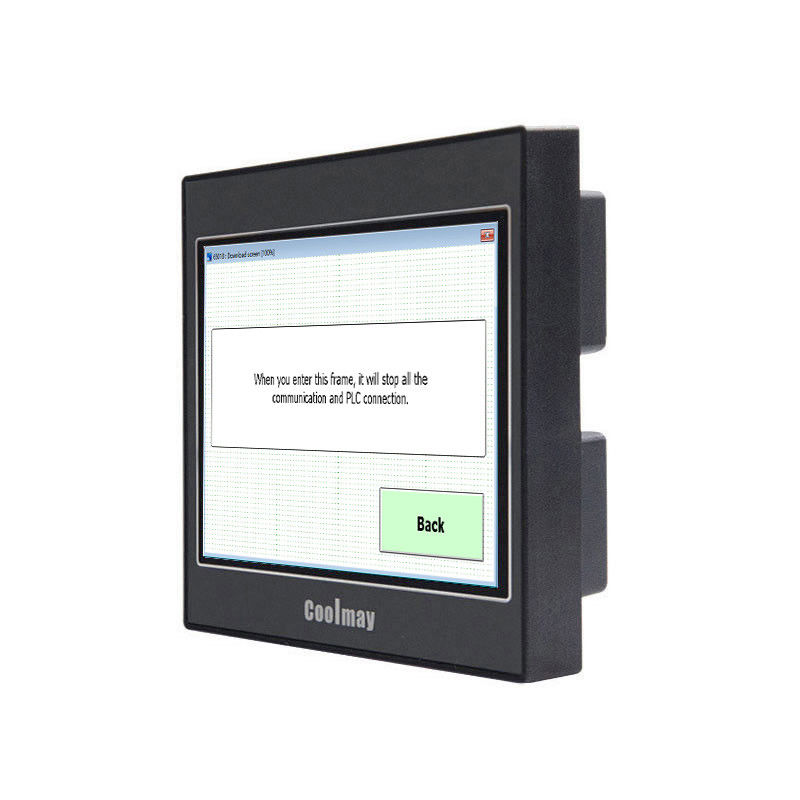

12-24VDC HMI Touch Screen Panel Supporting Common PLC Communication Protocol

Place of Origin China
Brand Name Coolmay
Certification CE、ISO9001
Model Number TK6037FH
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 1-3 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 15000 Units Per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Backlight Time 60,000 Hours Dimensions 88*88*25mm
Display Resolution 320*240 Touch Type 4-wire Resistive Panel
Warranty 18 Month Weight 0.3kg
IP Rating IP65 Temperature Ambient Environment: 0~50℃ | Storage Environment: -20~70℃
High Light

24VDC HMI Touch Screen Panel


HMI Touch Screen Panel Supporting PLC


Resistive Industrial HMI Touch Panel

Leave a Message
Product Description

Product Description:

HMI Control Panel is a touch screen operator machine interface developed for industrial applications. It features a 72*72mm cutout size, a dimension of 88*88*25mm, 4-wire resistive panel, and 12-24VDC±10%<150mA @ 24VDC input voltage. It is also equipped with RS232/RS485 communication protocol which supports MODBUS, free port and common PLC communication protocol. This HMI Control Panel is designed for easy operation and reliable performance to ensure efficient communication between machine and operator.



  • Product Name: HMI Control Panel
  • Cutout size: 72*72mm
  • Brightness: 300cd/m²
  • Warranty: 18 Month
  • IP Rating: IP65
  • Input Voltage: 12-24VDC±10%<150mA @ 24VDC
  • HMI display touch screen

Technical Parameters:

Parameter Detail
Display Resolution 320*240
Interface USB, RS232, RS485,Type C
RAM 64MB (HMI When Stores Historical Data, Optional Ferroelectric Is Required)
Dimensions 88*88*25mm
Weight 0.3kg
IP Rating IP65
Touch type 4-wire Resistive Panel
Warranty 18 Month
Cutout size 72*72mm
Temperature Ambient Environment: 0~50℃ | Storage Environment: -20~70℃


Garment making equipment, such as screw machines, tapping machines, ultrasonic cleaning machines and masterbatch machines, can be shipped with program.

Testing machines, laminating machines, hot pressing machines, various types of battery equipment/spot welding machines, and UV lamp-curing are also available. The list of equipment continues with ultrasonic cleaning equipment, loading and unloading equipment, SMT peripheral equipment, terminal machines, and injection molding machines (vertical injection molding machines).

The category of environmental protection equipment includes LED lamps, defoaming machines, labeling machines, laser marking machines, test fixtures, reflow soldering/shoe machines, SKD stepping/testing equipment/laminating, power distribution cabinets, and testing tests.



Coolmay TK6037FH HMI Control Panel

Coolmay TK6037FH HMI Control Panel is an operator machine interface with industrial hmi touch panel. It is certified by CE,ISO9001 and minimum order quantity is 1. The price is negotiable and packaging details is carton. Delivery time is 1-3 days and payment terms include T/T, Western Union, MoneyGram. The supply ability is 15000 units per week and the display resolution is 320*240. The touch type is 4-wire resistive panel and the warranty is 18 month. The temperature range is ambient environment: 0~50℃ | storage environment: -20~70℃ and the dimensions are 88*88*25mm.


Packing and Shipping:

Packaging and Shipping for HMI Control Panel

Our HMI Control Panel is securely packaged and shipped to ensure that it arrives safely and undamaged.


The HMI Control Panel is packaged in a corrugated box with layers of foam packaging, bubble wrap, and other cushioning materials to protect the product during shipping.


The HMI Control Panel is shipped via a reputable courier service for fast and reliable delivery.
