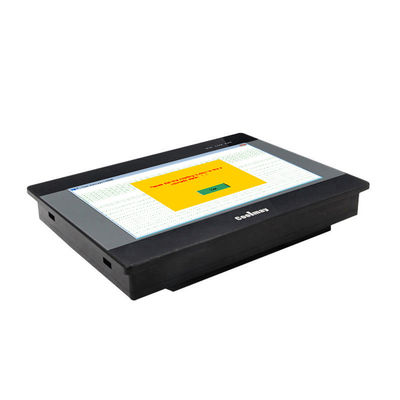

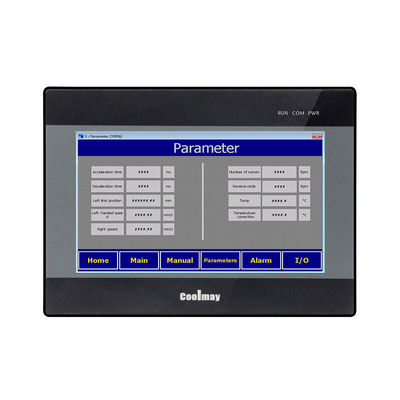

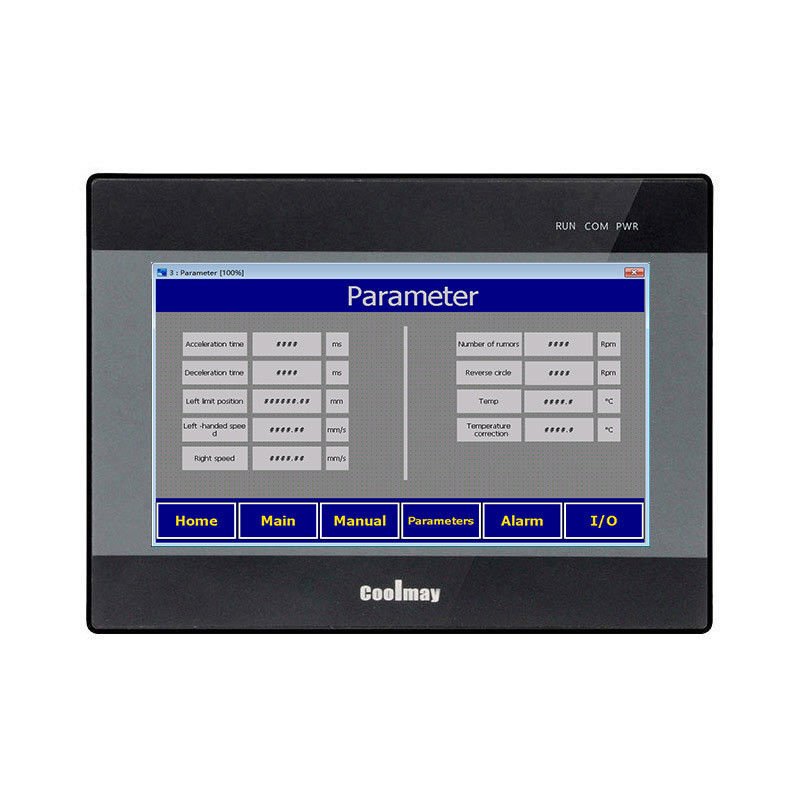

IP65 Industrial HMI Control Panel 7 Inch Screen 300-1000cd/M2

Place of Origin China
Brand Name Coolmay
Certification CE
Model Number TK6070FH
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 1-3 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 15000 Units Per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Brightness 300-1000cd/m2 Consumption 107mA/24V
CPU 32bit CPU 408MHz Protection Class IP65 (front Panel)
ROM NOR Flash 16MB Resolution 800*480
Screen Size 7 Inch Input Voltage 12-24VDC±10%<150mA @ 24VDC
High Light

IP65 Industrial HMI Control Panel


7 Inch Industrial HMI Control Panel


Industrial HMI Control Panel 300cd/m2

Leave a Message
Product Description

Product Description:

HMI Control Panel is an industrial human machine interface (HMI) designed for industrial automation applications. This 4-wire resistive panel features a 7-inch screen with 65536 colors for rich and vivid visuals. It is powered by a 32-bit CPU running at 408MHz, and is protected by an IP65 (front panel) rating. It is also equipped with a variety of ports, including a Type-C port, RS232 and RS485 serial ports. It supports an input voltage range of 12-24VDC±10% and up to 150mA @ 24VDC. This HMI Control Panel is an ideal choice for industrial use, offering superior performance and user-friendly operation.



  • Product Name: HMI Control Panel
  • Screen Size: 7 Inch
  • Resolution: 800*480
  • ROM: NOR Flash 16MB
  • Temperature:
    • Ambient Environment: 0~50℃
    • Storage Environment: -20~70℃
  • Input Voltage: 12-24VDC±10%<150mA @ 24VDC
  • Human Machine Interface (HMI)
  • Operator Machine Interface (OMI)

Technical Parameters:

Product Name Parameters
ROM NOR Flash 16MB
IP Rating IP65
Interface Download Port: Type-C, RS232, RS485 COM Port: RS232, RS485
Resolution 800*480
Humidity 20%~90% RH
Brightness 300 cd/m2
Product Name HMI Control Panel
Screen Size 7 Inch
Display color 65536 Colors
Temperature Ambient Environment: 0~50℃ | Storage Environment: -20~70℃


Coolmay's TK6070FH Industrial Human Machine Interface (HMI) Control Panel provides an all-in-one solution for any industrial application. With a 65536 color display and IP65 protection class, this user-friendly HMI touch screen panel is designed to provide excellent performance in any ambient environment from 0 to 50 degrees Celsius. The ultra-bright display of 300 cd/m2 ensures maximum visibility, while the storage environment of -20 to 70 degrees Celsius effectively protects the panel from extreme temperatures. Furthermore, the panel is certified to CE standards and comes with a minimum order quantity of 1, with negotiable pricing and packaging details of a carton. Delivery time of 1-3 days is available, and payment terms include T/T, Western Union, and MoneyGram. Coolmay is also able to supply up to 15000 units per week.



Our HMI Control Panel is made with brand name Coolmay, model number TK6070FH, and is certified with CE. The minimum order quantity is 1 and the price is negotiable. It is packaged in a carton and delivery takes 1-3 days. We accept payment via T/T, Western Union, or MoneyGram. We can supply 15000 units per week. It has 4-wire resistive panel, operator machine interface, human-machine interface, NOR Flash 16MB, brightness of 300 cd/m2, temperature of 0~50℃ ambient environment and -20~70℃ storage environment, and power consumption of 107mA/24V. It also has an IP65 (front panel) protection class.


Support and Services:

Technical Support and Services for HMI Control Panel
  • Free online technical support is available.
  • Technical support advisors are available to help with installation, configuration, and troubleshooting.
  • Documentation and user guides are available for download.
  • Software updates are available for download.
  • Customized technical support services are available.
  • Extended warranty plans are available.

Packing and Shipping:

Packaging and Shipping of HMI Control Panel

The HMI Control Panel is safely packaged in a box, along with the accompanying accessories and instructions. The box is then taped securely for shipping. Depending on the customer's location, the product can be shipped via ground, air, or sea transportation.

Once the product is shipped, customers will be provided with a tracking number so they can track the delivery status of their product.



  • Q: What is the brand name of the HMI Control Panel?
    A: The brand name of the HMI Control Panel is Coolmay.
  • Q: What is the model number of the HMI Control Panel?
    A: The model number of the HMI Control Panel is TK6070FH.
  • Q: Where is the HMI Control Panel produced?
    A: The HMI Control Panel is produced in China.
  • Q: What is the certification of the HMI Control Panel?
    A: The certification of the HMI Control Panel is CE.
  • Q: What is the minimum order quantity of the HMI Control Panel?
    A: The minimum order quantity of the HMI Control Panel is 1.
