LED Industrial HMI Panels 480*272 Pixels 300cd/M2 SD Card IP65 Optional Audio

Place of Origin CHINA, GONGDONG
Brand Name Coolmay
Certification CE
Model Number MT6043i
Minimum Order Quantity 1 peice
Price Negotiable
Packaging Details carton
Delivery Time 3-8 works days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 15000 Units Per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimension 275*194*36mm Cutout Size 262*180
Display Size 222*125 Weight 0.7kg
Display 10 Inch Resolution 1024*600 (pixels)
High Light

LED Industrial HMI Panels

,

480*272 Pixels Industrial HMI Panels

,

Optional Audio Industrial HMI Panels

Leave a Message
Product Description

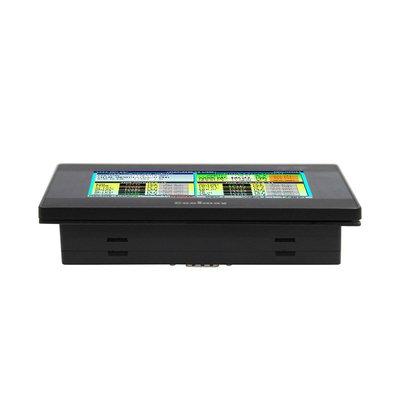

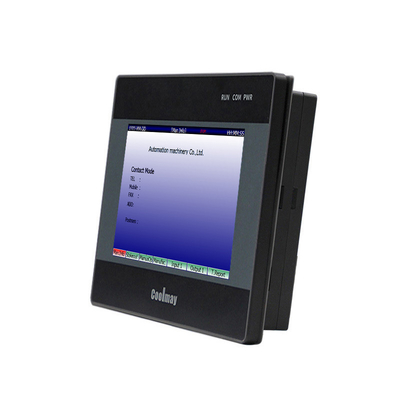

LED Industrial Hmi Panels 480*272 Pixels 300cd/M² SD Card IP65 Optional Audio



Human-Machine Interface (HMI) connects industrial control equipment such as programmable logic controllers (PLC), frequency converters, DC speed regulators, and meters. It is a digital device that uses the display screen to write working parameters or input operating commands through an input unit (such as a touchpad, a mouse, etc.) to realize information interaction between humans and machines. It consists of two parts: hardware and software.



PRODUCT DESCRIPTION
The main characteristics of the touch screen:



Dimension: 134*102*34mm

Cutout size: 120*94mm

Display size: 97*56mm

Weight(kg): 0.33

Display: 4.3” TFT

Resolution: 480*272

Brightness: 300cd/m²

Contrast ratio: 400:1

Backlight: LED

Backlight time: 60,000 h

Display color: 65536 true colors

Touch type: 4-wire resistive panel

ROM: NOR Flash 16MB(Disk C of system area)+SD NAND 128MB(Disk D)

RAM: 64MB

CPU: 32bit CPU 408MHz

SD card: Built in SD card (used to store historical data)

USB port: USB 2.0×1 (USB port , can be used to update programs and upload and download historical data; it can not be used with Type-C/Type-B download interface at the same time)

Download port: TYPE-C

Ethernet port: Optional

COM port: 1 RS232 and 1 RS485

Protocol: Support MODBUS, free port and common PLC communication Protocol

Audio: Optional

Calendar: Yes

Input Voltage: Default as DC12~24±10%V

Consumption: 150mA*24V

Protection Class: IP65 (front panel)

Temperature: Ambient environment: 0~50℃ | Storage environment: -20~70℃

Humidity: 20%~90% RH

Certification: CE

Software: CoolMay HMI programming software





Features

Provide a large number of vector image libraries and support self built image libraries.

Support USB flash drive download program and import/export data

Support all fonts provided by Windows.

6000 TFT true color display



Equipped with an SD card that can store historical data

Can display vertically



Some products can be optionally equipped with a network port, WiFi, or audio



Comes with an RS232 and RS485 communication port, supporting multiple protocols

Service advantages

1.Production equipment

Coolmay, which has 15 years of expertise in automation solutions for various industries, has6000 square meters of production space and 10 production lines, many imported high-end smtplacement equipment and testing equipment, and its monthly output can reach 50,000 units.

2.Good service

Coolmay is an original manufacturer of OEM&ODM PLC and HMl, which can meet various needsof customers. All our products have undergone 5-step strict quality control and 48 hours of aging.The products are of high quality, with a guarantee of up to 18 months and a simple return policy.

Provide Free Technical Support, learning tutorials and video tutorials.

Provide Free HMl programming Software and PLC programming software.

LED Industrial HMI Panels 480*272 Pixels 300cd/M2 SD Card IP65 Optional Audio 0

FAQ

1.Precautions of using PLC transistor and relay
The PLC output is a common cathode output, the theoretical value is 1A, the actual use is less than 500mA, the COM wiring is negative, please use 24V voltage, there is no voltage output when it is used as a switch. If an external relay, the relay needs an external power supply.
The relay has a contact life, the theoretical value is 30W times, and the theoretical value of the external load does not exceed 5A. Frequently, the full load current may affect the service life, and there is no voltage out.
2.Precautions of Coolmay PLC output type selection
MT: indicates the transistor output, MR: indicates the relay output, and MRT: indicates the relay transistor mixed output.
The main differences between transistor output and relay output are:
(1)The difference in current load. At present, we use a transistor with a maximum current load of 500MA, and the maximum current load of the relay is 5A (the maximum relay current of the EX2N(S)/DX2N(S) series PLC is 3A);
(2)Output power: The transistor can only be connected to the DC24V power supply , and the relay can be connected to the DC24V and AC220V power supply ;
(3)Functional characteristics: If you need to send a pulse to drive a stepper motor, you should use the transistor output or the mixed output. Also if the output switch is active, it is recommended to use a transistor output;
(4)If both the relay and the transistor are available, it is recommended to use a transistor output because the transistor has no contact life limit and the lifetime will be longer than the relay as long as the current does not exceed the limit.
