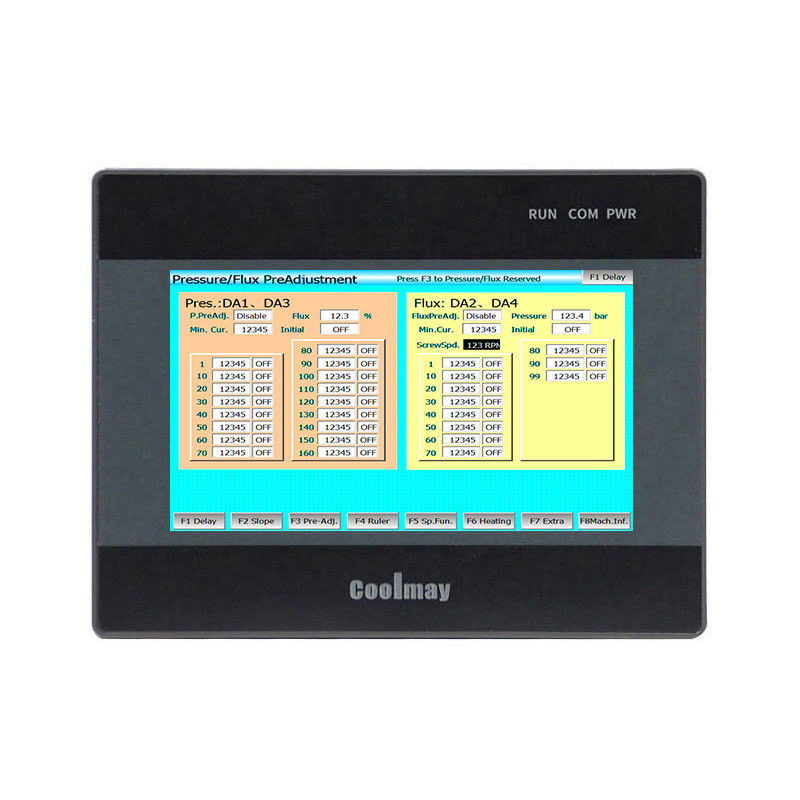

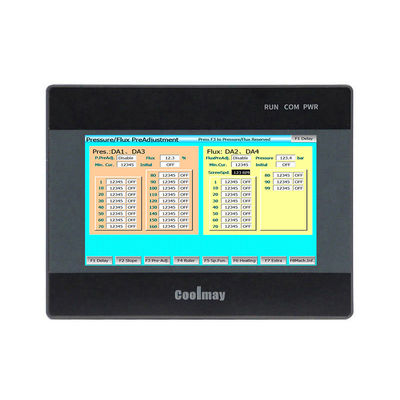

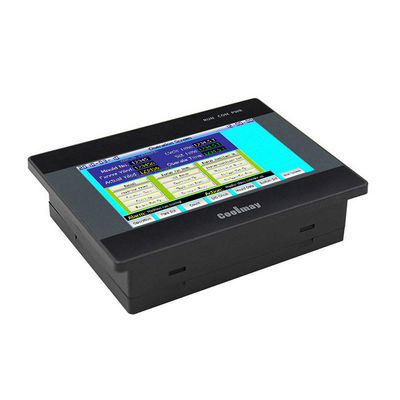

4.3" TFT LED Human Machine Interface Control Module 120*94 Optional Calendar
| Brand Name: | Coolmay |
| Model Number: | MT6043i |
| MOQ: | 1 peice |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 15000 Units Per Week |
TFT Human Machine Interface Control Module
,LED Human Machine Interface Control Module
,Optional Calendar HMI Control Panel
4.3" TFT LED Human Machine Interface Control Module 120*94 SD Card Ethernet Port Optional Calendar
Human-Machine Interface (HMI) connects industrial control equipment such as programmable logic controllers (PLC), frequency converters, DC speed regulators, and meters. It is a digital device that uses the display screen to write working parameters or input operating commands through an input unit (such as a touchpad, a mouse, etc.) to realize information interaction between humans and machines. It consists of two parts: hardware and software.
PRODUCT DESCRIPTION
The main characteristics of the touch screen:
1. 6000 TFT true color display
2. Equipped with an SD card that can store historical data
3. Support USB flash drive download program and import/export data
4. Comes with an RS232 and RS485 communication port, supporting multiple protocols
5. Can display vertically
6. Some products can be optionally equipped with a network port, WiFi, or audio
7. MT6037i can be wall mounted
| Model | MT6043i | |
| Specs | Dimension | 134*102*34mm |
| Cutout size | 120*94mm | |
| Display size | 97*56mm | |
| Weight(kg) | 0.33 | |
| Display | Display | 4.3” TFT |
|
Resolution (pixels) |
480*27 | |
| Brightness | 300cd/m² | |
| Contrast ratio | 400:1 | |
| Backlight | LED | |
| Backlight time | 60,000 h | |
| Display color | 65536 true colors | |
| Touch type | 4-wire resistive panel | |
| Storage | ROM | NOR Flash 16MB(Disk C of system area)+SD NAND 128MB(Disk D) |
| RAM | 64MB | |
| CPU | 32bit CPU 408MHz | |
| Interface | SD card | Built in SD card (used to store historical data) |
| USB port | USB 2.0×1 (USB port , can be used to update programs and upload and download historical data; it can not be used with Type-C/Type-B download interface at the same time) | |
| Download port | TYPE-C | |
| Ethernet port | Optional | |
| COM port | 1 RS232 and 1 RS485 | |
| Protocol | Support MODBUS, free port and common PLC communication Protocol | |
| Audio | Optional | |
| Calendar | Yes | |
| Input Voltage | Default as DC12~24±10%V | |
| Consumption | 150mA*24V | |
| Protection Class | IP65 (front panel) | |
| Temperature | Ambient environment: 0～50℃ | Storage environment: -20～70℃ | |
| Humidity | 20%～90% RH | |
| Certification | CE | |
| Software |
CoolMay HMI programming software Detailed info. refer to CoolMay HMI user manual, CoolMay HMI programming manual |
|
-
Service advantages
1. Production equipment
Coolmay, which has 15 years of expertise in automation solutions for various industries, has6000 square meters of production space and 10 production lines, many imported high-end smtplacement equipment and testing equipment, and its monthly output can reach 50,000 units.
2. Certification
Coolmay has passed the ISO9001 quality management system certification and the national high-tech enterprise certification. lts products have obtained a number of utility model patent certificatesand invention patents, and have repeatedly won many awards such as "Technical lnnovationAward" and "Innovative Product Award".
In addition, all Coolmay products have passed CE & RoHS certification.
