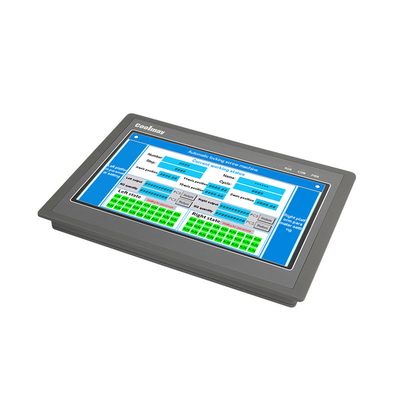

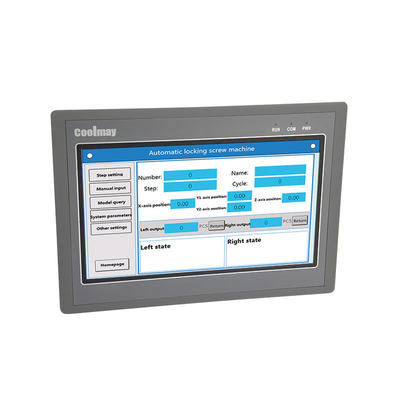

65536 True Colors HMI Display Touch Screen 300cd/M2 4 Wire Resistive Panel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension | 275*194*36mm | Cutout Size | 261*180mm |
|---|---|---|---|
| Display Size | 222*125mm | Weight(kg) | Appox.t 0.7 Kg |
| High Light | Resistive Panel HMI Display Touch Screen,HMI Display Touch Screen 300cd/M2,Multiple Protocols HMI Display |
||
Product Description
65536 TRUE COLORS HMI DISPLAY TOUCH SCREEN 300CD/M2 4-WIRE RESISTIVE PANEL LED
Human-Machine Interface (HMI) connects industrial control equipment such as programmable logic controllers (PLC), frequency converters, DC speed regulators, and meters. It is a digital device that uses the display screen to write working parameters or input operating commands through an input unit (such as a touchpad, a mouse, etc.) to realize information interaction between humans and machines. It consists of two parts: hardware and software.
PRODUCT DESCRIPTION of HMI PLC ALL IN ONE
Feature:
- Provides a large number of vector libraries and supports self-built gallery.
- High-precision,high-reliability resistive touch panel.
- Supports various formats of static images and GIF animations.
- Support all fonts WINDOWS provided.
- 60,000 TFT true color display.
- Support vertical display.
- Support Ethernet port and audio.
- Default Rs232/Rs485 port,support multiple protocols.
- Support 18 languages.
Specs Dimension 275*194*36mm Cutout size 261*180mm Display size 222*125mm Weight(kg) Appox.t 0.7 kg Display Display 10.1” TFT Resolution
(pixels)
1024*600 Brightness 300cd/m2 Contrast ratio 400:1 Backlight LED Backlight time 60,000 h Display color 65536 true colors Touch type 4-wire resistive panel Storage ROM 128MB RAM 128MB CPU CORTEX A8 720MHz-1GHz Operating system WINCE 7.0 Interface USB port USB 2.0×1 (USB port and can be connected to external USB flash drive, mouse, etc.) Download port Yes (Type B male port cable for program download) Ethernet port Optional COM port 1 RS232 and 1 RS485 Protocol Support MODBUS, free port and common PLC communication Protocol Other Audio Optional Calendar Yes Input Voltage Default as DC12~24±10%V Consumption 280mA*24V Protection Class IP65 (front panel) Temperature Ambient environment: 0～50℃ | Storage environment: -20～70℃ Humidity 20%～90% RH Certification CE Software CoolMay HMI programming software
Maintenance and service
- Your products will be 18-month warranty excluding artificial damage.
- You would receive unlimited support via video, phone or email.
- OEM/ODM is supported, MOQ is 200 sets. More modules or functions can be customized as per your requirements.
FAQ
1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design
and workers for produce and operate etc, we could support you one-stop products and service.
2) Do you have a CE certificate?
Yes for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western Union ect.
