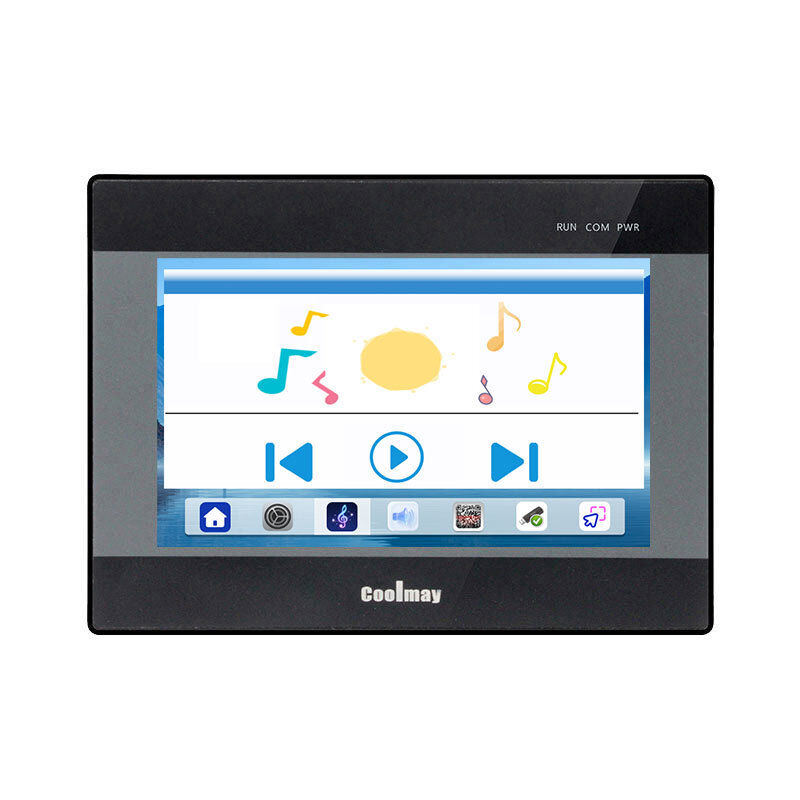

EX3G 10.1” TFT HMI PLC All In One Panel with 128MB ROM and 16AI/8AO Analog I/O for Industrial Automation
| Brand Name: | Coolmay |
| Model Number: | EX3S-8070H-44MT |
| MOQ: | 1 peice |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 15000 Units Per Week |
Detail Information
Place of Origin:
CHINA, GONGDONG
Certification:
CE
ROM:
128MB
Size:
10.1” TFT
COM Port:
Type-c,1 USB 2.0 Port,1 RS485 Or 1RS232 Port
Analog I/O:
4AD2DA
Packaging Details:
carton
Supply Ability:
15000 Units Per Week
Highlight:
EX3G HMI PLC All In One
,industrial PLC HMI Panel CE
,Automation PLC HMI Panel CE
Product Description
EX3G HMI PLC All In One USB Port PLC HMI Panel
EX3G 10.1" TFT HMI USB Port PLC HMI Panel for Industrial Automation

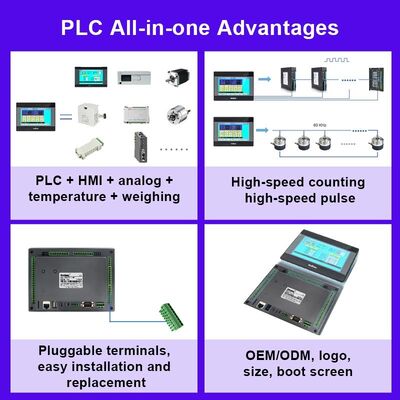

The Coolmay HMI/PLC all-in-one machine achieves high integration of HMI and PLC switch, analog, and temperature functions in hardware. This integrated solution eliminates the need for external PLCs and expansion modules in various control applications. Featuring pluggable terminals, it simplifies installation, disassembly, and maintenance for end users. Direct replacement capability ensures "zero travel expenses" and eliminates on-site maintenance costs.
Product Features
Structure
Highly integrated, compact design for cost and space savings
Programming Software
HMI: CoolMayHMI touch screen programming software
PLC: Compatible with Mitsubishi Works 2 / GX Developer 8.86
PLC: Compatible with Mitsubishi Works 2 / GX Developer 8.86
Input Capabilities
- Digital input: Maximum 30 channels
- Analog input: Up to 5 AD inputs available
- Optional inputs: E/K/S/T/J thermocouple, PT100, PT1000, NTC10K, NTC50K, NTC100K, 0~10V, 0~5V, 0~20mA, 4-20mA, 5V~5V, -10V~10V, or mixed types
- Thermocouple inputs support negative temperature readings
High-Speed Counting Input
Single phase: 6 channels at 60KHz
Or 2 channels AB (Z) phase at 60KHz plus 1 channel AB phase at 10KHz
Or 2 channels AB (Z) phase at 60KHz plus 1 channel AB phase at 10KHz
Output Capabilities
- Digital output: Maximum 30 outputs (Y0~Y3 are MOS tubes)
- Options: Relay (MR), transistor (MT), or mixed (MRT)
- Relay output: Maximum load 5A
- Transistor output: Maximum load 500mA
- Analog output: Up to 2 DA outputs available
- Options: 0~10V, 0~5V, 0~20mA, 4~20mA, mixed, -5~5V, -10~10V
Technical Specifications
| Component | Specification |
|---|---|
| RAM | 128MB |
| ROM | 128MB |
| CPU | CORTEX A8 720MHz-1GHz |
| I/O Configuration | 12DI/12DO, 20DI/18DO, 24DI/20DO, or 30DI/30DO |
| Input Type | Passive NPN, public terminal isolated |
| Output Type | Transistor: Low level NPN, COM connect to negative; Relay: Normally open dry contact |
| DO Type Options | Relay (MR), transistor (MT), or mixed (MRT) |
| Analog I/O (Optional) | Maximum 16AI/8AO |
| AI Type Options | Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple, PT100, PT1000, NTC10K, NTC50K, NTC100K, 0~10V, 0~5V, -5V~5V, -10V~10V, 0~20mA, 4~20mA, mixed |
| AO Type Options | 0~10V, 0~5V, 0~20mA, 4~20mA, mixed, -5~5V, -10~10V |
| High-Speed Counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10KHz |
| High-Speed Pulse | 8 channels, Y0-Y3 at 100KHz, Y4-Y7 at 10KHz |

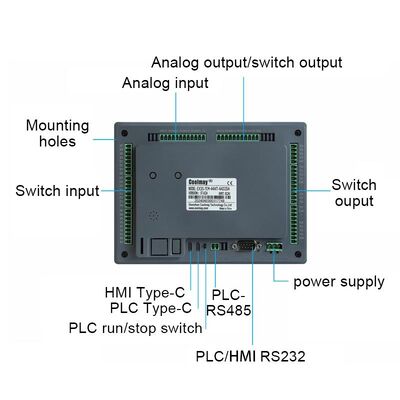

| HMI Connections | 1 HMI download port, 1 USB 2.0 port, 1 RS485 or 1 RS232 port, Ethernet port |
| PLC Connections | 1 Mini type B USB port, 1 RS232 port, 1 RS485 or 2 RS485 COM ports, CAN (2.0A/B), Ethernet port, WIFI |
| Software | HMI: CoolMayHMI programming software PLC: Compatible with Mitsubishi GX Developer 8.86 and WORKS 2 |
Maintenance and Service
- 18-month warranty (excluding artificial damage)
- Unlimited support via video, phone, or email
- OEM/ODM supported with MOQ of 200 sets
- Custom modules and functions available per requirements
