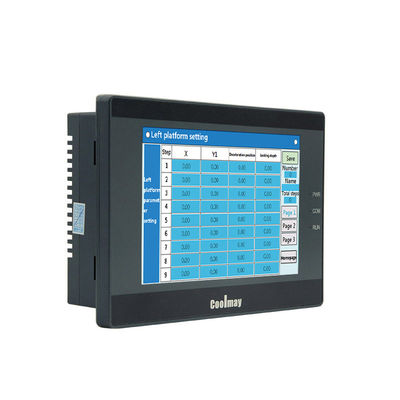

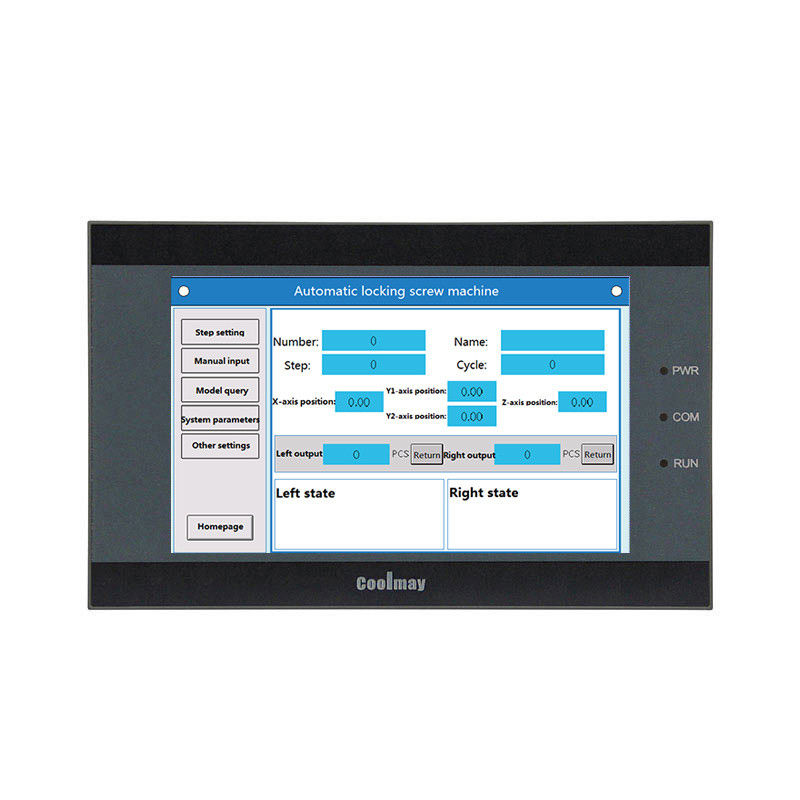

4.3 Inch HMI Touch Screen Panel 72mA 24V Support Modbus Protocol

Place of Origin China
Brand Name Coolmay
Certification CE,Rohs
Model Number TK6043FH
Minimum Order Quantity 1
Price usd40-usd60per piece
Packaging Details box 26*19*10cm
Delivery Time 5-7 working days
Payment Terms Western Union, T/T
Supply Ability 5000pcs/month
Product Details
Product 4.3 Inch Dimension 134x102x36mm
CPU 32bit CPU 408MHz Software TPWorks
High Light

32bit CPU HMI Touch Screen Panel

,

HMI Touch Screen Panel 24V

,

led backlight HMI Touch Screen

Leave a Message
Product Description

4.3 Inch HMI Touch Screen Panel 72mA 24V Support Modbus Protocol ​



Specification:

Upgraded hmi device.

Support almost all lanaguge, and fonts.

Keyboard using, Gesture operation etc are available.



Different size available :

3.5 inch , 4.3 inch, 5 inch, 7 inch,  10 inch, 15 inch.





Features:

  1. IP65 Panel protection grade, 65K TFT
    Brand new high-brightness,high-contrast display LCD, providing colorful operation interface.
  2. Optional WIFI
    802.11b/g/n wireless communication standard protocol; convenient upload/download function of configuration software via network cable.

  3. Thin and light embedded

    Can be easily installed in various complex industrial application environments.

  4. Conformal coating protection for motherboard

    In various harsh industrial environments, it is more effective against shock, moisture,high and low temperature, and chemical corrosion.



    Model  TK6043FH
    Cutout size 120*94mm
    Display 4.3" TFT
    Resolution 480*272
    Brightness 400cd/m²
    Backlight time 60,000 hours
    Display color 65536 colors
    ROM NOR Flash 8MB
    RAM 64MB
    CPU 32bit CPU 408MHz
    Download port Type-C
    COM port 1 RS232, 1 RS485
    Protocol Support MODBUS, free port and common PLC communication Protocol
    Calendar Yes
    Input Voltage 12-24VDC±10%<150mA @ 24VDC
    Protection Class IP65 (front panel)
    Temperature Ambient environment: 0~50 | Storage environment: -20~70
    Humidity 20%~90% RH
    Language  Almost all
