Coolmay 4.3 Inch Integrated HMI Touch Screen Panel RS485 RS232 4 Wire Resistive Panel

Place of Origin CHINA
Brand Name Coolmay
Certification CE
Model Number MT6043HQ
Minimum Order Quantity 1 pcs
Price Negotiable
Packaging Details Packed with standard carton box
Delivery Time 3-8 working day
Payment Terms T/T, Western Union, MoneyGra
Supply Ability 100,000 Sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
USB Port USB 2.0 Dimension 134*102*34mm
Display Size 97*56mm Brightness 300cd/m^2
High Light

4.3 inch Integrated HMI Touch Screen Panel

,

USB 2.0 HMI Touch Screen Panel

,

Support Modbus Coolmay HMI

Leave a Message
Product Description

Coolmay 4.3inch HMI Integrated Touch Screen Panel 4-wire resistive panel RS485 RS232



Human-Machine Interface (HMI) connects industrial control equipment such as programmable logic controllers (PLC), frequency converters, DC speed regulators, and meters. It is a digital device that uses the display screen to write working parameters or input operating commands through an input unit (such as a touchpad, a mouse, etc.) to realize information interaction between humans and machines. It consists of two parts: hardware and software.



Product Information of HMI Touch Screen



Dimension 134*102*32mm
Cutout size 120*94mm
Display size 97*56mm
Weight(kg) Appox. 0.33 kg
Display 4.3” TFT

Resolution

(pixels)

480*272
Audio Optional
Download port type C
Backlight LED
Backlight time 60,000 h
Display color 65536 true colors
Touch type 4-wire resistive panel
ROM 128MB
RAM 64MB
CPU ARM9 core 400MHz
USB PORT  USB 2.0
Protocol Support Modbus




Product features

  • Support 18 languages and fonts

  • 60,000 hours lifespan TFT full color touch screen panel

  • Support Ethwork port modbus tcp

  • Multi-size options: 3.5" to 15" screen size

  • Support OEM & ODM

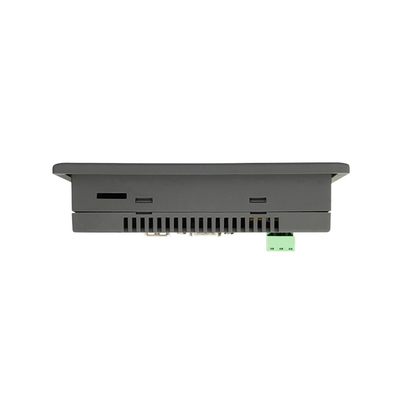

Coolmay 4.3 Inch Integrated HMI Touch Screen Panel RS485 RS232 4 Wire Resistive Panel 0

Package



The products will be tested for 1-3 days and packed with carton box .

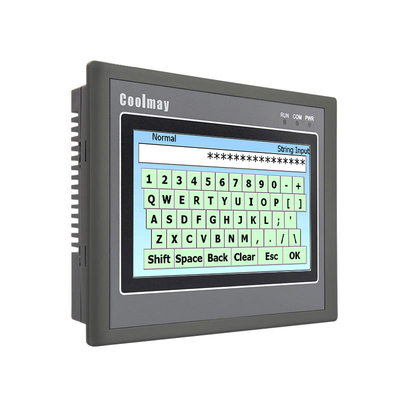

Coolmay 4.3 Inch Integrated HMI Touch Screen Panel RS485 RS232 4 Wire Resistive Panel 1



After-sales service



  • Your products will be 18-months warranty excluding artificial damage.
  • You would receive unlimited support via video, phone or email.
  • OEM/ODM is supported, MOQ is 200 sets. More modules or functions can be customized as per your requirements.

Company information

Shenzhen Coolmay Technology Co., Ltd. (Coolmay) is a high-tech enterprise specializing in R&D and production of industrial PLC automation products and providing automation engineering services. Mainly produce PLC integrated machine, PLC, touch screen HMI, power supply and network supporting modules, etc. Our products are widely used in industrial and civil automation fields, with an annual output of 200,000 sets of products. Our products sell well all over the world: China, Europe, the United States and other countries in the world. Since its establishment, Coolmay has been committed to the field of industrial control automation based on the business philosophy of "cooperation, integrity, pragmatism, and innovation", providing customers with high-quality and low-cost embedded industrial control products, solutions and services.

Coolmay 4.3 Inch Integrated HMI Touch Screen Panel RS485 RS232 4 Wire Resistive Panel 2



FAQ



1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design
and workers for produce and operate etc, we could support you one-stop products and service.
2) Do you have a CE certificate?
Yes for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western Union ect.
