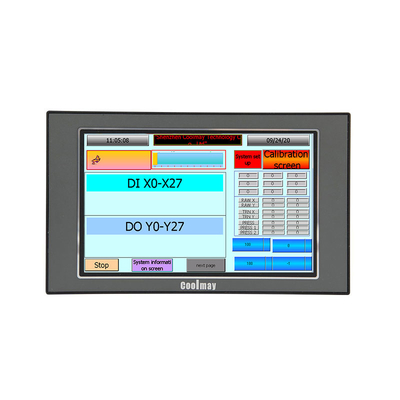

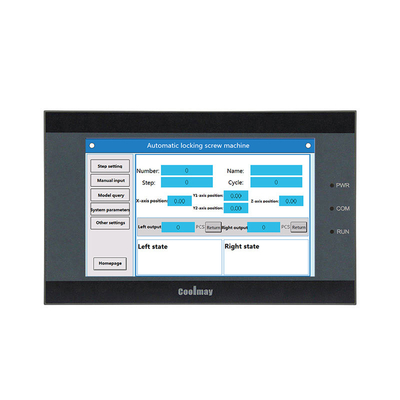

5 Inch 65536 True Colors HMI Touch Screen LED Backlight RS232 RS485 800*480 Resolution
| Brand Name: | Coolmay |
| Model Number: | MT6050H |
| MOQ: | 1 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGra |
| Supply Ability: | 100,000 Sets per month |
HMI Touch Screen RS485
,True Color HMI Touch Screen
,small size HMI Touch Screen panel
5 Inch Hmi 65536 True Colors Touch Screen Led Backlight 1 RS232 RS485 800*480 Resolution
Human-Machine Interface (HMI) connects industrial control equipment such as programmable logic controllers (PLC), frequency converters, DC speed regulators, and meters. It is a digital device that uses the display screen to write working parameters or input operating commands through an input unit (such as a touchpad, a mouse, etc.) to realize information interaction between humans and machines. It consists of two parts: hardware and software.
Product Information of HMI Touch Screen
| Display | 5 inch |
|
Resolution (pixels) |
800*480 |
| Dimension | 146*88*25mm |
| Audio | Optional |
| Backlight | LED |
| Backlight time | 60,000 h |
| Display color | 65536 true colors |
| Touch type | 4-wire resistive panel |
| ROM | 128MB |
| RAM | 64MB |
| CPU | ARM9 core 400MHz |
| Operating system | WINCE 5.0 |
| USB port | USB 2.0×1 (USB port and can be connected to external USB flash drive, mouse, etc.) |
| Download port | Yes (Mini type B male port cable for program download) |
| Ethernet port | Optional |
| COM port | 1 RS232 and 1 RS485 |
| Protocol | Support MODBUS, free port and common PLC communication Protocol |
Product features
1) Support data storage functions and default as usb flash drive storage,and SD card storage is optional (cannot coexist with usb storage), max. 100,0000 data.
2) Supports storage of recipe, historical data, curves, alarming listing.
3) Support Ethernet port and support Ethernet monitoring.
4) Support program download, database upload and download by usb flash drive or SD card,and support functions of external mouse, usb flash drive.
5) 60,000 TFT true color display.
6) Default Rs232/Rs485 port, support multiple protocols.
7) Support 18 languages.
Service advantages:
1.Production equipment
Coolmay, which has 15 years of expertise in automation solutions for various industries, has6000 square meters of production space and 10 production lines, many imported high-end smtplacement equipment and testing equipment, and its monthly output can reach 50,000 units.
2.Certification
Coolmay has passed the ISO9001 quality management system certification and the national high-tech enterprise certification. lts products have obtained a number of utility model patent certificatesand invention patents, and have repeatedly won many awards such as "Technical lnnovationAward" and "Innovative Product Award".
In addition, all Coolmay products have passed CE & RoHS certification.
3.Raw materials and accessories
The raw materials and parts used by Coolmay are the best: the CPU adopts imported 32-bitindustrial-grade chips, the PCB board with three anti-paint protection, the relays and transistorsimported from the United States, and the input and output with photoelectric isolation protection.
4.Good service
Coolmay is an original manufacturer of OEM&ODM PLC and HMl, which can meet various needsof customers. All our products have undergone 5-step strict quality control and 48 hours of aging.The products are of high quality, with a guarantee of up to 18 months and a simple return policy.
Provide Free Technical Support, learning tutorials and video tutorials.
Provide Free HMl programming Software and PLC programming software.
FAQ
1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design
and workers for produce and operate etc, we could support you one-stop products and service.
2) Do you have a CE certificate?
Yes for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western Union ect.
-
Dgood product！
