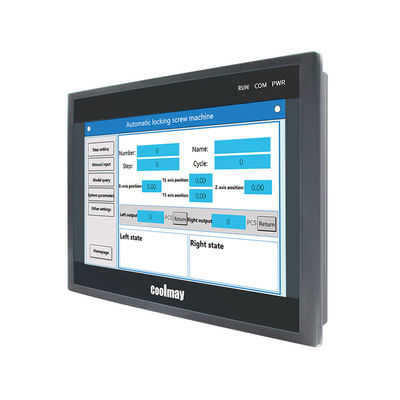

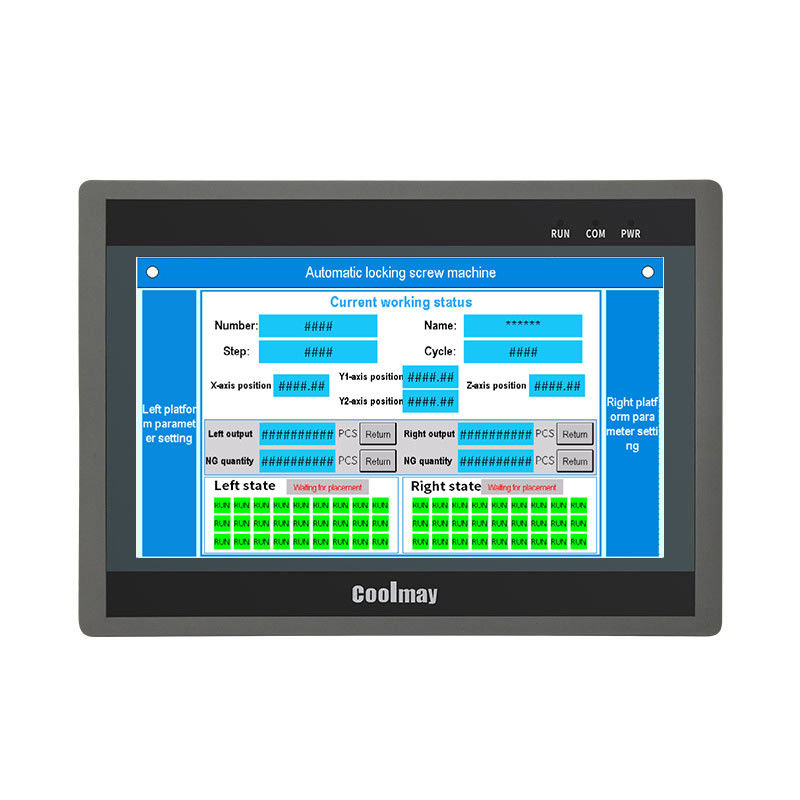

Coolmay 10'' Digital Touch Screen PLC Controller RS232 RS485 PLC Automation Control Panel

Place of Origin CHINA, GONGDONG
Brand Name Coolmay
Certification CE
Model Number QM3G-100FH
Minimum Order Quantity 1 peice
Price Negotiable
Packaging Details carton
Delivery Time 3-8 works days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 15000 Units Per Week
Product Details
Dimension 275*194*36mm Input 24VDC
HMI COM Ports Type-B/ RS232 PLC COM Port 1x Mini USB, 1x RS232, 1x RS485
High Light

10'' Touch Screen PLC Controller

,

Coolmay Touch Screen PLC Controller

,

PLC Automation Control Panel

Leave a Message
Product Description

Coolmay 10'' Digital Programmable Touch Screen Plc Controller Rs232/Rs485 Plc Automation Control Panel



The all-in-one solution is to integrate the controller, operation interface, input/output, analog input/output, high-speed counting/pulse and communication port into a compact unit to meet the needs of customer equipment automation control.



PRODUCT DESCRIPTION of HMI PLC ALL IN ONE

Product Details
Coolmay 10'' Digital Touch Screen PLC Controller RS232 RS485 PLC Automation Control Panel 0

① Series QM3G: QM3G-FH series

② HMI 43 : 4.3inch 50 : 5inch 70 /70HD/70K : 7inch t 100 : 10inch

③ Digital input and output (DI/DO) 16: 8DI 8DO 24: 12DI 12DO 38: 20DI 18DO 44: 24DI 20 DO 60: 30DI 30DO

④ Module type M: Main module of universal controller

⑤ Digital output (DO) type R: relay; T: trnasistor(MOS tube); RT: both relay and transistor

⑥ Analog input (AD) 4 channels for 43FH/50FH,12 for 70FH/HD ,16 for 70KFH/100FH

⑦ Analog output (DA) 2 channels for 43FH/50FH,8 for 70FH/70HD/70KFH/100FH

⑧ AI type E: Thermocouple E(can be customized as type K T, S or J supports negative temperature)

PT:PT100 PT1000:PT1000 NTC thermistor 10K, 50K, 100K A0: 0-20mA A4: 4-20mA V5: 0-5V

V: 0-10V V5_:-5V~5V V_:-10~10V (only 7 and 10 inch support V5_ and V_)

⑨ AO type A0: 0-20mA A4: 4-20mA V5: 0-5V V: 0-10V V5_:-5V~5V

V_:-10~10V(only 7 inch and 10 inch support negative voltage covers 2 channels)

⑩ C1 singe phase high-speed counting,C2 AB phase counting,C3 ABZ phase counting;

Normally support 6 single phase 60KHz , or 2 AB ( Z ) 60KHz + 1 AB 10KHz

⑪ P0:10KHz high speed pulse;P:100KHz high speed pulse;Normally 8 channels,Y0-Y3 is

100KHz,Y4-Y7 is 10KHz;That high speed counting plus high speed pulse must be withi 480KHz

⑫ Com port optional refers to Chart 1'basic parameter’

  1.
    Display Dimension 275*194*36mm
    Cutout size 262*180mm
    Power Consumption 6-8W
    Feature 60K-color resistive touch screen, supports portrait display
    Memory RAM 64MB
    ROM NOR Flash 16MB
    CPU 32bit CPU 408MHz
    I/O DI/DO Max 30DI/30DO (max 28MR)
    DI/DO level Input: Passive NPN, public terminal isolated
    DO type

    Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT)

    (Relay output: max load 5A/ transistor output: max load 500mA)

    Analog I/O

    (optional)

    Max 12AI/8AO
    AI type (optional) Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
    AO type (optional)

    0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/

    -5~5V/ -10~10V (2AO for 1 minus voltage)

    High-speed function High-speed counting

    Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,

    or 2 ABZ 60KHz + 1 AB phase 10 KHz

    High-speed pulse

    8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

    High-speed counting + high-speed pulse < 480KHz

    Connection HMI Type-B HMI download port (can download PLC program through the USB penetrating function), RS232
    1 RS485 (changed from default RS232)
    PLC 1 Mini USB, 1 RS232 (program port)
    1 Rs485 or 2 Rs485 COM ports (one is changed from the default Rs232 port)
    CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232 port)
    Software HMI Coolmay mView HMI Programming Software
    PLC Compatible with Mitsubishi GX Developer 8.86 and WORKS 2



Maintenance and service

  • Your products will be 18-month warranty excluding artificial damage.
  • You would receive unlimited support via video, phone or email.
  • OEM/ODM is supported, MOQ is 200 sets. More modules or functions can be customized as per your requirements.
