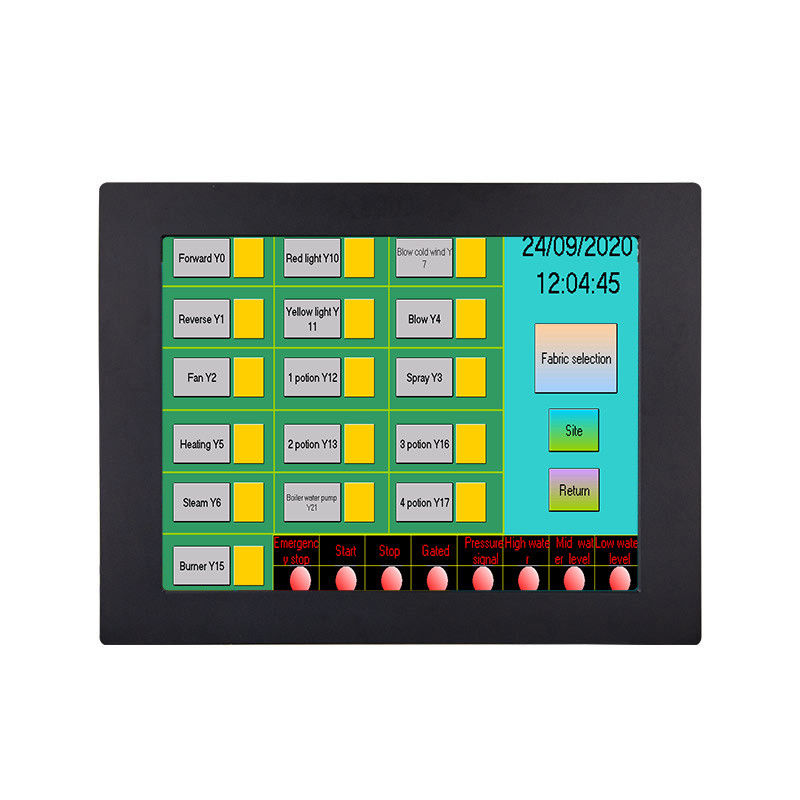

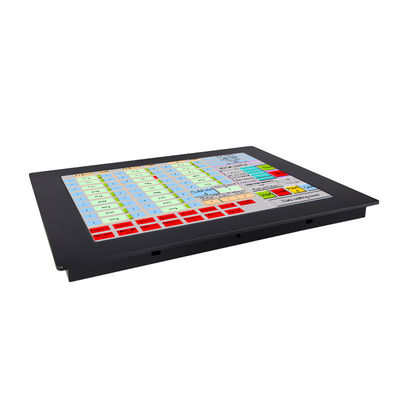

15" TFT display HMI Control Panel 450cd/m2 Brightness IP65 Protection Class

Place of Origin CHINA
Brand Name Coolmay
Certification CE
Model Number TK6150FH
Minimum Order Quantity 1 pcs
Price Negotiable
Packaging Details Packed with standard carton box
Delivery Time 3-8 working day
Payment Terms T/T, Western Union, MoneyGra
Supply Ability 100,000 Sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cut Out Size 366*280mm Brightness 450cd/m²
Dimension 386*300*40mm Consumption 400mA/24V
Resolution (pixels) 1024*768 Contrast Ratio 400:1
High Light

TFT display HMI Control Panel

,

15" TFT HMI Control Panel

,

industrial occasions hmi display panel

Leave a Message
Product Description

15" TFT display Hmi Control Panel 450cd/m² Brightness 400mA/24V Consumption IP65 Protection Class



TK series HMI applied Coolmay software “mView”. “mView” is a set of stable and reliable human machine interface programming software for industrial occasions. Independent and original system design, running speed increased by 200%, memory usage reduced by 50%.



Parameter of HMI Contral Panel:

MODEL: TK6150FH

Dimension: 386*300*40mm

Cutout size: 305*229mm

Display size: 305*229mm

Weight: Appox.3.3 kg

Display:15"TFT

Resolution Standard: 1024*768

Brightness:450cd/m²

Contrast ratio: 400:1

Backlight: LED

Backlight time : 60,000 hours

Display color: 65536 colors

Touch type: 4-wire resistive panel

Interface:Download port: Type-C, RS232, RS485 COM ports: RS232, RS485

Consumption: 400mA/24V

Protection Class: IP65 (front panel)

Temperature: Ambient environment: 0~50℃ | Storage environment: -20~70℃

Humidity: 20%~90% RH

Certification: CE



Product Features:



Product Features Explanation
IP65 Panel protection grade, 65K TFT Brand new high-brightness,high-contrast display LCD, providing colorful operation interface.
Data security upgrade This series of HMl supports password man-agement functions. Users can set passwords for specific registers, buttons,and screens, and add permissions to ensure data security.
Integrated rich industrial interfaces RS232, RS485, USB2.0, WIFI, Ethernet
Thin and light embedded Can be easily installed in various complex industrial application environments



15" TFT display HMI Control Panel 450cd/m2 Brightness IP65 Protection Class 0

Packaging:

The products will be under testing for 1-3 days and packed with carton box .

  • Shipping

By courier, door to door
For samples, the package will be delivered by DHL/UPS/FedEx/EMS express. Usually it will take 3-7 days to your location.


Post service
If you are not hurry but need economical delivery, we can go with packet channel. The delivery time depends on your location.


Air shipping or by sea
If bulk order, the packages will be delivered by air shipping or by ship.



Maintenance and service

  • Your products will be 18-month warranty excluding artificial damage.
  • You would receive unlimited support via video, phone or email.
  • OEM/ODM is supported, MOQ is 200 sets. More modules or functions can be customized as per your requirements.



FAQ

1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design
and workers for produce and operate etc, we could support you one-stop products and service.
2) Do you have a CE certificate?
Yes for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western Union ect.
