QM3G-70KFH HMI PLC All In One Touch Screen PLC Controller with Single Phase 6 Channel High Speed Counting and RS232 Interface
| Brand Name: | Coolmay |
| Model Number: | QM3G-70KFH |
| MOQ: | 1 peice |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 15000 Units Per Week |
Detail Information
Place of Origin:
CHINA, GUANGDONG
Certification:
CE
Analog I/O (optional):
Max 16AI/8AO
Default Programming Port:
1 Mini USB, 1 RS232
Dimension:
226*163*35.6mm
I/O:
Max 30DI/30DO
Software:
MView HMI Programming Software
Cutout Size:
217*154mm
Packaging Details:
carton
Supply Ability:
15000 Units Per Week
Highlight:
HMI PLC All In One High Speed
,Single Phase HMI PLC All In One
,6 channel plc hmi all in one
Product Description
QM3G-70KFH HMI PLC All-In-One Touch Screen
Integrated PLC controller with single phase 6-channel high-speed counting and RS232 touch screen interface.
Product Overview
- Integrated PLC, HMI, digital I/O (DI/DO), analog I/O (AD/DA), and high-speed function I/O
- Compatible with FX3G/FX3U/FX3S PLC systems for fast operation
- 38 Digital I/O (20 digital input + 18 digital output) with 12AD/8DA
- 60 Digital I/O (30 digital input + 30 digital output) with 5AD/2DA
- Default 2 PLC programming ports and 1 HMI download port
- Optional RS485, CAN, WiFi, network ports on PLC; optional RS232, RS485, network ports on HMI
- Multi-channel high-speed counting and pulse functions
- 32K-step program capacity and 32K power retentive registers with interruption, linear arc interpolation, and PID self-tuning
Technical Specifications
| Model | QM3G-70KFH |
|---|---|
| Dimension | 226×163×35.6mm |
| Cut Out Size | 217×154mm |
| Feature | 60K colors resistive touch screen, supports portrait display |
| Default | Type-B HMI download port (can download PLC program through USB penetrating function), RS232 |
| Counter C | High-speed counter: C235~C245 single phase single counting, C246~C250 single phase dual counting, C251~C255 dual phase dual counting |
| I/O Level | Input: Passive NPN, public terminal isolated. Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact |
| DO Type and Load | Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT). MOS tube: 2A/point, 4A/4 points COM; MT: 0.5A/point, 0.8A/4 points COM, 1.6A/8 points COM; MR: 2A/point, 4A/4 points COM, 5A/12 points COM. |
| Extended File Register R | [R0~R22999] 23000 points support power outage / [R23000~R23999] 1000 points internal use |
| High-Speed Pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
| Nested Pointer | [N0~N7] 8 points Master control |
| Analog I/O (Optional) | Max 16AI/8AO |
| Software | Compatible with GX Developer 8.86 and GX WORKS 2 |
Packaging & Shipping
Packaging
Shipping Options
- Courier Service: Door-to-door delivery via DHL/UPS/FedEx/EMS express (3-7 days for samples)
- Post Service: Economical delivery via packet channel (delivery time varies by location)
- Bulk Orders: Air shipping or sea freight available
Included Accessories
Free cables included: 1.5M HMI Downloading Cable (Blue) and 1.5M PLC Programming Cable (White)
Quality Certifications
Coolmay products are fully compliant with CE and RoHS regulations, and are manufactured under ISO 9001-certified quality management systems.

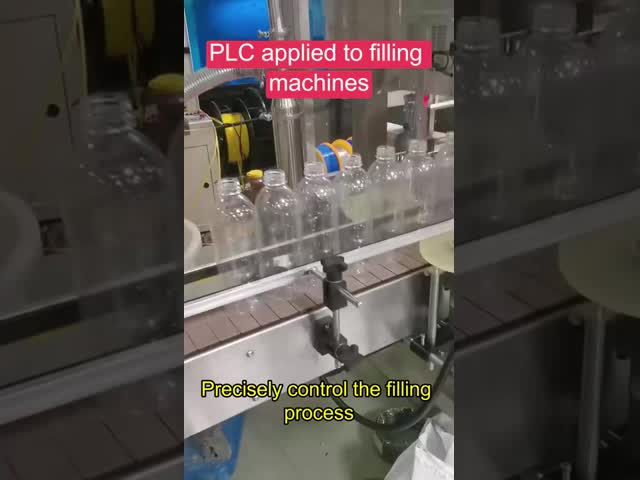

Application Scenarios
About Coolmay
Founded in March 2006, Coolmay stands as a premier brand in industrial automation, serving over 10,000 customers across 200+ countries. Our team of 200+ global professionals, including 40+ R&D specialists, has completed 55,000+ projects and secured 60+ intellectual property rights. We deliver advanced, reliable solutions including PLC, HMI+PLC all-in-one machines, HMI, power supply, servodrives, stepperdrives, VFDs, and IoT modules.
Partners
Exhibitions
Payment Methods
We accept secure payment methods including Western Union, WeChat, AliPay, PayPal, and international bank transfers (T/T). All transactions are protected under AliExpress Buyer Protection.
Warranty & Support
- 18-Month Manufacturer Warranty covering hardware defects and system malfunctions
- Lifetime Technical Support with remote assistance for configuration and integration
- Returns & Exchanges available for damaged shipments (contact within 3 days with photo evidence)
Contact Information
WhatsApp: +86 199-2529-1353
WeChat: +86 199-2529-1353
WeChat: +86 199-2529-1353
We respond within 24 hours for support, documentation, or firmware files.
