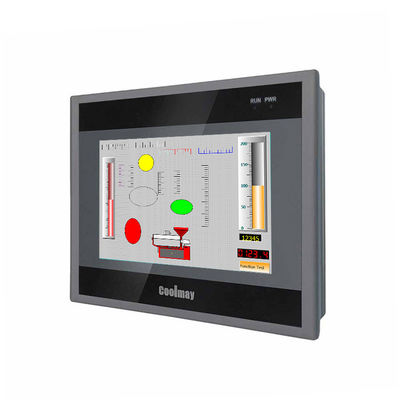

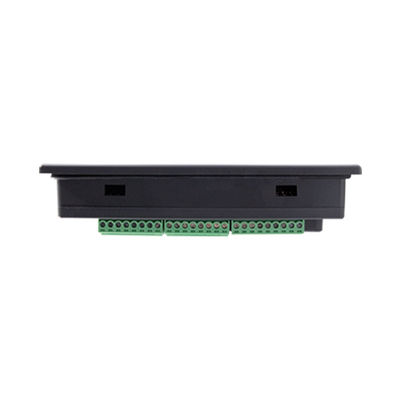

QM3G-70KFH 16AI 8AO HMI And PLC All In One For Industrial Machine

Place of Origin CHINA, GONGDONG
Brand Name Coolmay
Certification CE
Model Number QM3G-70KFH
Minimum Order Quantity 1 peice
Price Negotiable
Packaging Details carton
Delivery Time 3-8 works days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 15000 Units Per Week
Product Details
AI/AO 16/8 Power Consumption 6-7W
Dimension 226*163*35.6mm RAM 64MB
Software MView HMI Programming Software COM RS232/RS485
High Light

16AI HMI and PLC all in one

,

8AO HMI and PLC all in one

,

Industrial Machine HMI and PLC all in one

Leave a Message
Product Description

100% Original QM3G-70KFH 16AI/8AO HMI And Programmable Logic Controller All In One For Industrial Machine

DESCRIPTION:



ODM Modbus RTU TCP Touch Panel PLC 30DI 30DO QM3G-70 KFH 0

max digital points
QM3G-70KFH
digital input X
X00~X35 30 points
digital output Y
Y00~Y35 30 points
Auxiliary Relay M
[M0~M383] 384point general / [M384~M1535] 1152point holding / [M1536~M7679] 6144point general
[M8000~M8511] 512point special
Timer T
[T0~T199] 200point 100ms general / [ [T250~T255] 6 points 100ms holding
[T246~T249] 4point 1ms grand total holding / [T256~T319] 64 points 1ms general
[T200~T245] 46point 10ms General ※The 10ms timer will be affected by the scan period.
If the scan period is 12ms, the timer becomes 12ms and executes once.
Counter C
high-speed counter
[C235~C245 single phase single counting] [C246~C250
single phase dual counting] [C251~C255 dual phase
dual counting]
Data Register D
[D0~D127] 128point general/ [D128~D7999] 7872point Holding/ [D8000~D8511] 512point Special
Data Register V,Z
[V0~V7] [Z0~Z7] 16point indexing
Extended file register R
[R0~R22999] 23000points support power outage/ [R23000~R23999] 1000points internal use
pointer JUMP,CALL branch
[P0~P255] 256points / [P0~P1280] 1281 points (26232 version or above)
Nested Pointer
[N0~N7] 8points Master control
Interruption
[I0XX~I5XX] 6points input interruption / [I6XX~I8XX] 3points timer interruption / [I10XX~I60XX] 6points counter interruption
constant(K)
32bit -2,147,483,648~2,147,483,647
constant(H)
32bits 0~FFFFFFFFH




Integrated PLC,HMl,digital I/O(DW/DO), analog I/O(AD/DA), high speed functionI/Otc..



- Compatible with FX3G/FX3U/FX3S PLC,fast operation.



- 38 Digital (20 digital input +18 digital output) , 12AD/8DA.

- 60 Digital (30 digital input +30 digital output) , 5AD/2DA.



- Default 2 PLC programming ports, 1 HMl download port.



- Supports optional one or two Rs485, CAN, WIFl, network port on PLC, and supports optional Rs232,Rs485,network port (under development)on HMI.



- Supports multi-channel high speed count and pulse functions.



- 32K-step program capacity and 32Kpower retentive registers.Supports interruption, linear arc interpolation and PID self-tuning.

Free cables



Blue cable: 1.5M HMI Downloading Cable

White cable: 1.5M PLC Programming Cable
