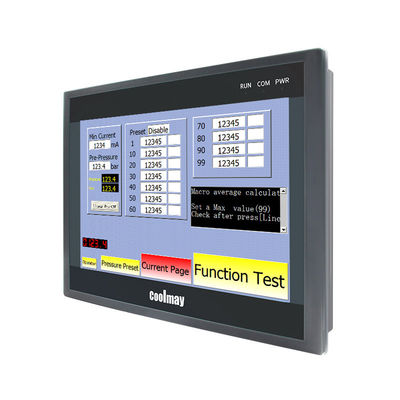

QM3G-100FH 10Inch Integrated HMI PLC Controller For Industrial Machine

Place of Origin CHINA, GONGDONG
Brand Name Coolmay
Certification CE
Model Number QM3G-100FH
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details carton
Delivery Time 3-8 works days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 15000 Units Per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Power Consumption 6-8W RAM 64MB
CPU 32bit CPU 408MHz DI/DO Max 30DI/30DO (max 28MR)
Dimension 275*194*36MM HIM Software MView HMI Programming Software
High Light

10Inch Integrated HMI PLC


Industrial Machine Integrated HMI PLC


64MB HMI PLC controller

Leave a Message
Product Description

100%Original QM3G-100FH 10-Inch Integrated HMI And Programmable Logic Controller All In One For Industrial Machine

1.1.QM3G-FH PLC/HMI All-in-one Main Advantage:
◆Upper computer programming software compatible with Works 2/GX
Developer8.86 (supports Ladder diagram and SFC language, does not support
structured programming/labels).
◆Powerful, compatible with FX3G/FX3U/FX3S PLC, high processing
◆Military level 32 bit CPU adopted, which is faster and more adapted to
industrial environment of high electromagnetic interference.
◆Special encryption, prevent illegal reading thoroughly. 8-bit encryption,
12345678 as password can thoroughly prevent reading of ladder logic
◆Clock supported, rechargeable battery adopted.
◆Default with 1 HMI download port, 2 PLC programming ports
(RS232/MiniB USB port or Type-C), and one USB port.


Cutout size262*180mm
Feature60K-color resistive touch screen, supports portrait display
CPU32bit CPU 408MHz
I/ODI/DOMax 30DI/30DO (max 28MR)
DI/DO level

Input: Passive NPN, public terminal isolated

Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact

DO type and loadRelay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM.

Analog I/O


Max 16AI/8AO
AI type (optional)

Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/

0~10V/ 0~5V/ 0~20mA/ 4~20mA/ -5V~5V/ -10V~10V / mixed

AO type (optional)

0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/

-5~5V/ -10~10V (2AO for 1 minus voltage)

High-speed functionHigh-speed counting

Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,

or 2 ABZ 60KHz + 1 AB phase 10 KHz

High-speed pulse

8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

High-speed counting + high-speed pulse < 480KHz

ConnectionHMIType-B HMI download port (can download PLC program through the USB penetrating function), RS232
1 RS485 (changed from default RS232)
PLC1 Mini USB, 1 RS232 (program port)
1 RS485 or 2 RS485 COM ports (one is changed from the default RS232 port)
CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232 port)
SoftwareHMICoolmay mView HMI Programming Software
PLCCompatible with GX Developer 8.86 and GX WORKS 2


Application scenario:

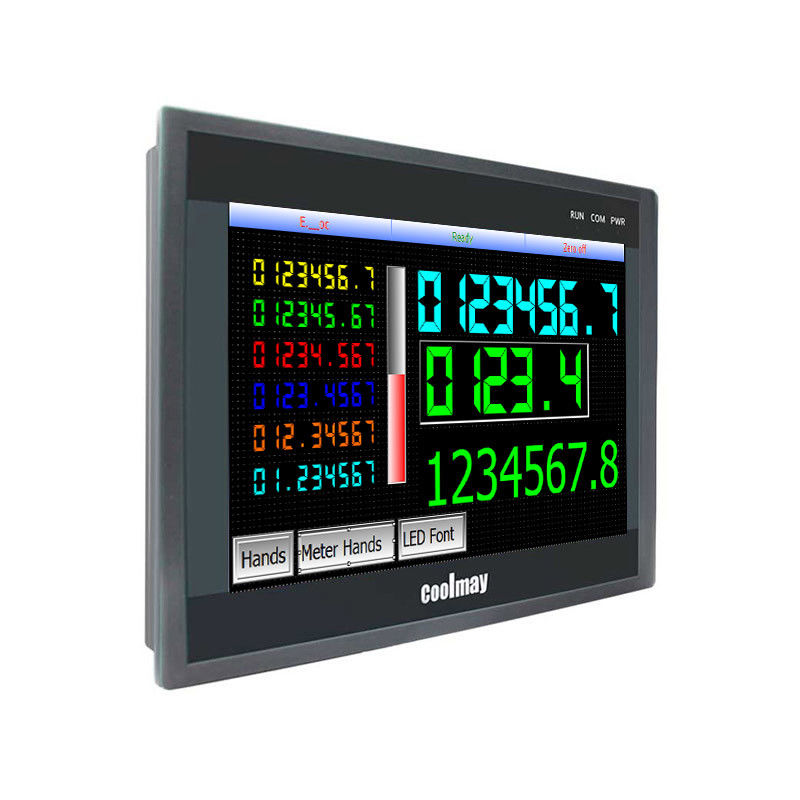

QM3G-100FH COM Port Integrated HMI PLC 64MB Public Terminal Isolated 0

Food packaging machinery, electronic manufacturing equipment, printing machinery, textle machinery, medical machinery testing machinery, wind powerequipment,engineering machinery, plastic machinery tobacco machinery, agriculture, forestry and animal husbandry (aquaculture), environmental protec-tion equipment, automobile manufacturing,AGV trolleys,logistics storage equipment...
