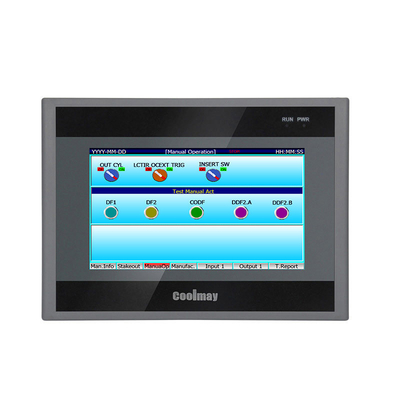

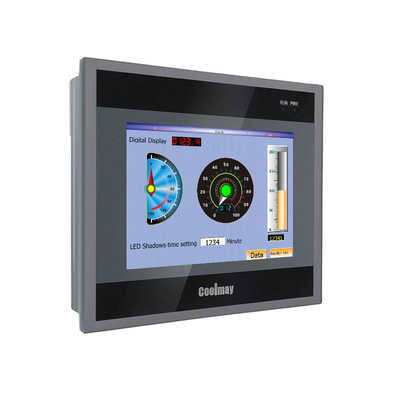

7inch QM3G-70KFH Integrated HMI PLC All In One Touch Panel PLC For Industry

Place of Origin CHINA, GONGDONG
Brand Name Coolmay
Certification CE
Model Number QM3G-70KFH
Minimum Order Quantity 1 UNITS
Price Details Need To Be Negotiated
Packaging Details Carton
Delivery Time 3-8 WORKS DAYS
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1500 pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Input 24VDC RAM 64MB
ROM 16MB Software Coolmay MView HMI Programming Software
Size Of HMI 7inch Power Consumption 6-7W
High Light

7inch Integrated HMI PLC


Touch Panel Integrated HMI PLC


Industry HMI PLC All In One

Leave a Message
Product Description

7inch QM3G-70KFH Integrated HMI PLC All In One Touch Panel PLC for industry




size of HMI: 7 inch

cutout size: 217*154mm



CPU:32bit CPU 408MHz

com ports:1*type B download port, 1*RS232

Software: Coolmay mView HIM Programming Software

Power Consumption: 6-7W



1. Super functions. PLC compatible with FX3G/FX3U/FX3S PLC. It operate fast.

2. Highly integration. The digital points are 30 inputs and 30 outputs at most. The digital output can be transistor,relay or mixed output.Analog can reach up to 16 input and 8 output. It has 2 PLC COM port (RS232 and Mini B-type USB port), 1 downloading port on HMI.

3. 32K steps program capacity, 32K power-off retentive registers, support interrupt, linear and circular interpolation, PID self-adjusting.

4. Special encryption.Set password as 12345678 to thoroughly prevent reading data.(PLC only supports 8-bit password encryption)

5. PLC is compatible with Mitsubishi programming software, and HMI is mView software.


ODM Modbus RTU TCP Touch Panel PLC 30DI 30DO QM3G-70 KFH 0

max digital points
digital input X
X00~X35 30 points
digital output Y
Y00~Y35 30 points
Auxiliary Relay M
[M0~M383] 384point general / [M384~M1535] 1152point holding / [M1536~M7679] 6144point general
[M8000~M8511] 512point special
Timer T
[T0~T199] 200point 100ms general / [ [T250~T255] 6 points 100ms holding
[T246~T249] 4point 1ms grand total holding / [T256~T319] 64 points 1ms general
[T200~T245] 46point 10ms General ※The 10ms timer will be affected by the scan period.
If the scan period is 12ms, the timer becomes 12ms and executes once.
Counter C
high-speed counter
[C235~C245 single phase single counting] [C246~C250
single phase dual counting] [C251~C255 dual phase
dual counting]
Data Register D
[D0~D127] 128point general/ [D128~D7999] 7872point Holding/ [D8000~D8511] 512point Special
Data Register V,Z
[V0~V7] [Z0~Z7] 16point indexing
Extended file register R
[R0~R22999] 23000points support power outage/ [R23000~R23999] 1000points internal use
pointer JUMP,CALL branch
[P0~P255] 256points / [P0~P1280] 1281 points (26232 version or above)
Nested Pointer
[N0~N7] 8points Master control
[I0XX~I5XX] 6points input interruption / [I6XX~I8XX] 3points timer interruption / [I10XX~I60XX] 6points counter interruption
32bit -2,147,483,648~2,147,483,647
32bits 0~FFFFFFFFH
