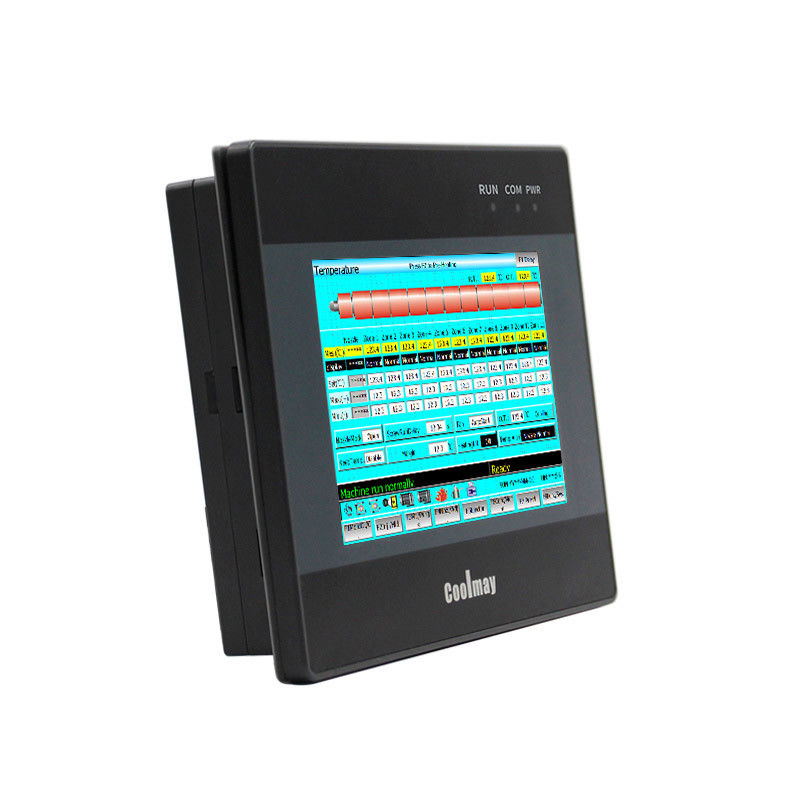

SFC High Speed HMI PLC All In One Max 4AI 2AO Rechargeable Battery

Place of Origin Shenzhen
Brand Name Coolmay
Certification CE
Model Number QM3G-43FH-24MR
Minimum Order Quantity 1 pcs
Price Negotiable
Packaging Details Packed with standard carton box
Delivery Time 3-8 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 100,000 pcs per month
Product Details
RAM 64MB ROM NOR Flash 8MB
CPU 32bit CPU 408MHz DI/DO Max 12DI/12DO
Analog I/O Max 4AI/2AO Program Port RS232
High Light

SFC High Speed HMI PLC

,

4AI High Speed HMI PLC

,

Rechargeable Battery PLC HMI Panel

Leave a Message
Product Description

Advantage:

◆ Upper computer programming software compatible with Works 2/GX Developer8.86 (supports Ladder diagram and SFC language, does not support structured programming/labels).

◆ Powerful, compatible with FX3G/FX3U/FX3S PLC, high processing speed.

◆ Clock supported, rechargeable battery adopted.

◆ Default with 1 HMI download port, 2 PLC programming ports (RS232/MiniB USB port or Type-C), and one USB port.

◆ Support Mitsubishi programming protocol/MODBUS protocol/RS protocol/BD board protocol, easily realize PLC interconnection and communication with external devices.

◆ Convenient wiring. All wiring terminals adopt 3.81 pitch pluggable terminals, which is convenient for customers to use.

◆ 32K program capacity, 32K retentive register, support interrupt, linear arc interpolation ,PID auto-tuning, high powerful.



SFC High Speed HMI PLC All In One Max 4AI 2AO Rechargeable Battery 0



Parameter:

Display Dimension 134*102*34mm
Cutout size 120*94mm
Type 4.3"TFT
Feature 60K-color resistive touch screen, supports portrait display
Memory RAM 64MB
ROM NOR Flash 8MB
CPU 32bit CPU 408MHz
I/O DI/DO Max 12DI/12DO
DI/DO level

Input: Passive NPN, public terminal isolated

Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact

DO type and load Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM.

Analog I/O

(optional)

Max 4AI/2AO
AI type (optional)

Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/

0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed

AO type (optional) 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed
High-speed function High-speed counting

Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,

or 2 ABZ 60KHz + 1 AB phase 10 KHz

High-speed pulse

8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

High-speed counting + high-speed pulse < 480KHz

Connection HMI Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port
/
PLC 1 TYPE-C, 1 RS232 (program port)

1 RS485 or 2 RS485 COM ports (one of which is changed from the default RS232 port);

1 WIFI (occupy default RS232 port)

Software HMI Coolmay mView HMI Programming Software
PLC Compatible with Mitsubishi GX Developer 8.86 and WORKS 2


Precautions for PLC programming:

The PLC is compatible with GX Developer8.86/GX Works2 and below. If you use other versions of software, incompatibility may occur.

When the PLC program is downloaded, there is a prompt error: Cannot specify the com port,

GX 8.86 software: Online-Transfer settings change com port;

Works 2: All targets-Change the com port in all connected targets;

If there is a communication abnormality, cable abnormality and other prompts, remove it by cutting off the power, checking the cable, checking whether the power supply is normal, or replacing the computer.

In the GX Developer8.86 software version, choose the figure:

SFC High Speed HMI PLC All In One Max 4AI 2AO Rechargeable Battery 1

In the Works 2 software version, choose the figure: (Note: the label is forbidden)

SFC High Speed HMI PLC All In One Max 4AI 2AO Rechargeable Battery 2
