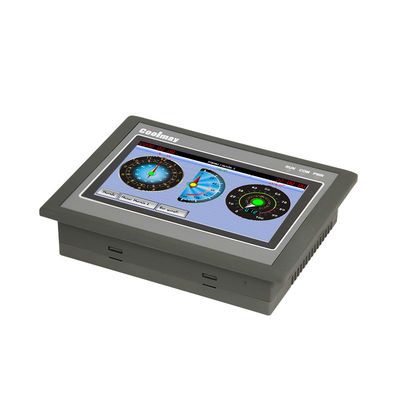

120×94mm Cutout HMI Control Panel 300cd/M2 LED Backlight WINCE 5.0
| Brand Name: | Coolmay |
| Model Number: | MT6043H |
| MOQ: | 1 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100,000 pcs per month |
120×94mm Cutout HMI Control Panel
,LED Backlight HMI Control Panel
,WINCE 5.0 HMI Programming Panel
120*94mm Cutout Size HMI Control Panel 300cd/M² Brightness LED Backlight
Database storage function
In the software version of CoolMayHMI V5.81 (internal GUIRun V5.81) and higher version, modify the default data storage function (record buffer / alarm database) of the hmi and hmi/plc all-in-one (hmi part) to be stored in the SD card. If there is no optional SD card (which cannot coexist with the built-in USB 2.0 port), it means that there is no storage function by default. If you need to use the storage function, you need to change the HMI database storage selection to RAM (U disk. Backup suppression ** minutes), and the external file system is U disk in FAT32 format.
Parameter:
| Specs | Dimension | 134*102*32mm |
| Cutout size | 120*94mm | |
| Display size | 97*56mm | |
| Weight(kg) | Appox. 0.33 kg | |
| Display | Display | 4.3” TFT |
|
Resolution (pixels) |
480*272 | |
| Brightness | 300cd/m² | |
| Contrast ratio | 400:1 | |
| Backlight | LED | |
| Backlight time | 60,000 h | |
| Display color | 65536 true colors | |
| Touch type | 4-wire resistive panel | |
| Storage | ROM | 128MB |
| RAM | 64MB | |
| CPU | ARM9 core 400MHz | |
| Operating system | WINCE 5.0 | |

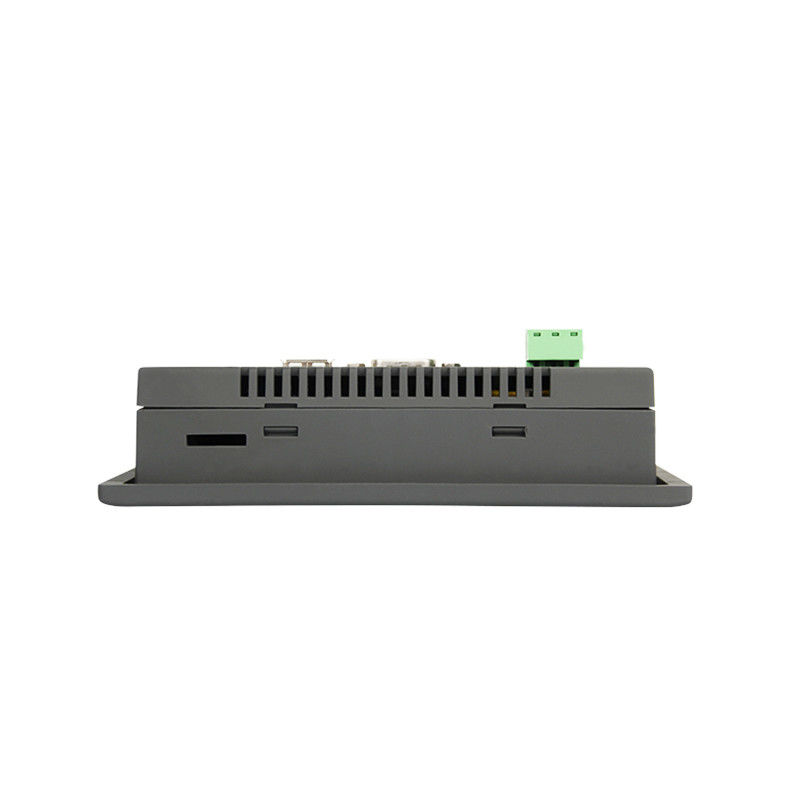

| Interface | USB port | USB 2.0×1 (USB port and can be connected to external USB flash drive, mouse, etc.) |
| Download port | Yes (Mini type B male port cable for program download | |
| Ethernet port | Optional | |
| COM port | 1 RS232 and 1 RS485 | |
| Protocol | Support MODBUS, free port and common PLC communication Protocol | |
| Audio | Optional | |
| Calendar | Yes | |
| Input Voltage | Default as DC12~24±10%V | |
| Consumption | 150mA*24V | |
| Protection Class | IP65 (front panel) | |
| Temperature | Ambient environment: 0～50℃ | Storage environment: -20～70℃ | |
| Humidity | 20%～90% RH | |
| Certification | CE | |
| Software | Coolmay HMI programming software | |
Precautions
■ Temperature and humidity of working environment
The storage temperature is -20 ~ 70 ° C, the working environment temperature is 0-50 ° C, and the working environment humidity is 20% ~ 90% RH. If it is out of the range, its LCD screen is not guaranteed to allow normal display for a long time.
■ Prohibit random insertion
the COM port is forbidden to plug and unplug during the MT series operation;
please turn off the power when connecting/disconnecting the communication cable !!
■ The best equipment
Please use PIII 500 or above, 128MB or more memory, WindowsXP / Windows 7 / Windows 8 / Windows 10 and other versions.
-
