High Processing Speed Integrated HMI PLC RS232 8 Bit Encryption

Place of Origin Shenzhen
Brand Name Coolmay
Certification CE
Model Number QM3G-100FH-24MR
Minimum Order Quantity 1 pcs
Price Negotiable
Packaging Details Packed with standard carton box
Delivery Time 3-7 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 100,000 pcs per month
Product Details
Type 10"TFT CPU 32bit CPU 408MHz
Cutout Size 262*180mm Dimension 275*194*36mm
DI/DO Max 30DI/30DO (max 28MR) Analog I/O (optional) Max 16AI/8AO
High Light

High Processing Speed HMI PLC

,

Integrated HMI PLC RS232

,

8 Bit Encryption HMI PLC

Leave a Message
Product Description

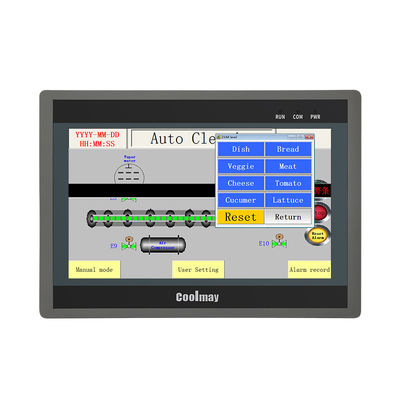

Integrated HMI PLC High Processing Speed 8-Bit Encryption RS232



The PLC is compatible with GX Developer8.86/GX Works2 and below. If you use other versions of software, incompatibility may occur.

When the PLC program is downloaded, there is a prompt error: Cannot specify the com port,

GX 8.86 software: Online-Transfer settings change com port;

Works 2: All targets-Change the com port in all connected targets;

If there is a communication abnormality, cable abnormality and other prompts, remove it by cutting off the power, checking the cable, checking whether the power supply is normal, or replacing the computer.

In the GX Developer8.86 software version, choose the figure:

High Processing Speed Integrated HMI PLC RS232 8 Bit Encryption 0

In the Works 2 software version, choose the figure: (Note: the label is forbidden)

High Processing Speed Integrated HMI PLC RS232 8 Bit Encryption 1

Parameter:



Display

Dimension

275*194*36mm

Cutout size

262*180mm

Type

10"TFT

Feature

60K-color resistive touch screen, supports portrait display

Memory

RAM

64MB

ROM

NOR Flash 16MB

CPU

32bit CPU 408MHz

I/O

DI/DO

Max 30DI/30DO (max 28MR)

DI/DO level

Input: Passive NPN, public terminal isolated

Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact

DO type and load

Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM.

Analog I/O

(optional)

Max 16AI/8AO

AI type (optional)

Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/

0~10V/ 0~5V/ 0~20mA/ 4~20mA/ -5V~5V/ -10V~10V / mixed

AO type (optional)

0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/

-5~5V/ -10~10V (2AO for 1 minus voltage)

High-speed function

High-speed counting

Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,

or 2 ABZ 60KHz + 1 AB phase 10 KHz

High-speed pulse

8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

High-speed counting + high-speed pulse < 480KHz

Connection

HMI

Type-B HMI download port (can download PLC program through the USB penetrating function), RS232

1 RS485 (changed from default RS232)

PLC

1 Mini USB, 1 RS232 (program port)

1 RS485 or 2 RS485 COM ports (one is changed from the default RS232 port)

CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232 port)

Software

HMI

Coolmay mView HMI Programming Software

PLC

Compatible with Mitsubishi GX Developer 8.86 and WORKS 2



Advantage:

◆ Powerful, compatible with FX3G/FX3U/FX3S PLC, high processing speed.

◆ Military level 32 bit CPU adopted, which is faster and more adapted to industrial environment of high electromagnetic interference.

◆ Special encryption, prevent illegal reading thoroughly. 8-bit encryption, 12345678 as password can thoroughly prevent reading of ladder logic program.

◆ Clock supported, rechargeable battery adopted.

◆ Default with 1 HMI download port, 2 PLC programming ports (RS232/MiniB USB port or Type-C), and one USB port.

◆ Support Mitsubishi programming protocol/MODBUS protocol/RS protocol/BD board protocol, easily realize PLC interconnection and communication with external devices.

◆ Convenient wiring. All wiring terminals adopt 3.81 pitch pluggable terminals, which is convenient for customers to use.

◆ Flexible use. More specifications and batches can be customized according to customer requirements.
