32bit CPU 408MHz HMI With PLC Built In 6 Channels 1 Phase 60khz

Place of Origin China
Brand Name Coolmay
Certification CE
Model Number QM3G-43FH-16MR
Minimum Order Quantity 1
Price usd92-usd160 per piece
Packaging Details box 26*19*10cm
Delivery Time 5-7 working days
Payment Terms T/T, Western Union
Supply Ability 5000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HMI PLC All In One Panel Protect IP65
CPU 32bit CPU 408MHz Digital IO 8DI/8DO
Power NPN DC24V Pulse 8 Axis
Com Port RS485 Software Gx Works 2
High Light

32bit CPU PLC HMI

,

408MHz PLC HMI

,

408MHz HMI PLC

Leave a Message
Product Description

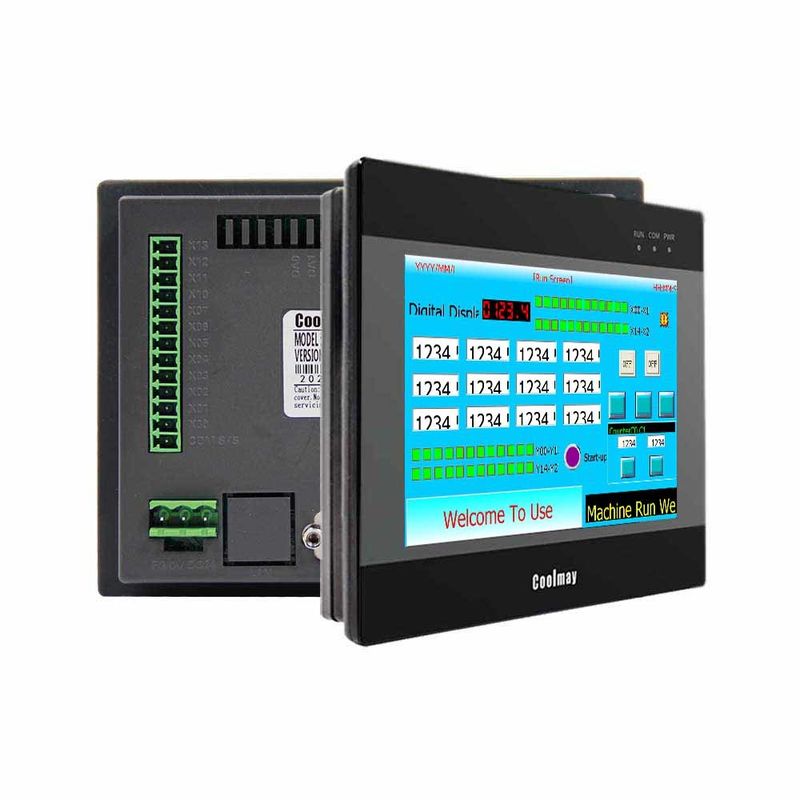

32bit CPU 408MHz HMI With PLC Built In 6 Channels 1 Phase 60khz

GX WORKS2 Software Programming 4.3 Inch Integrated HMI PLC All In One



Coolmay is China Frist Developer & Manufacturer , to develop the integrated hmi plc all in one , aim to integrate the controller, operation interface, input/output, analog input/output, high-speed counting/pulse and communication port into a compact unit to meet the needs of customer equipment automation control.



By this approach, it can saves time, reduces wiring, and cuts the cost of purchasing multiple devices.

  1. Integrated PLC,HMl,digital I/O(DW/DO), analog I/O(AD/DA), high speed functions,etc..
  2. Compatible with FX3G/FX3U/FX3S PLC,fast operation.

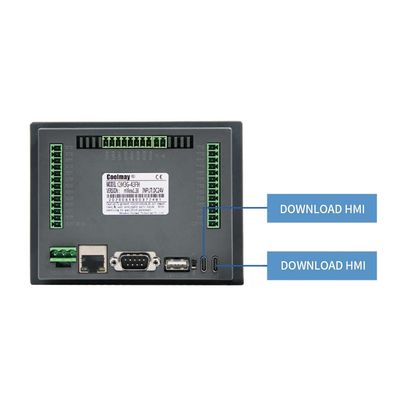

  3. Default 2 PLC programming ports, 1 HMl download port.
  4. Supports optional one or two Rs485, CAN, WIFl, network port on PLC, and supports optional Rs232,Rs485,network port (under development)on HMI.
  5. Supports multi-channel high speed count and pulse functions.
  6. 32K-step program capacity and 32Kpower retentive registers.Supports interruption, linear arc interpolation and PID self-tuning.
  7. Supports special encryption.HMl and PLC can be encrypted respectively.Set PLC password as 12345678 can prohibit reading program completely.(Note:PLC only supports 8-bit password.)
  8. Combined with Coolmay network modules can realize remotely control.

Not only the controller device, we also provide professional aumation industrial or home solution to acheive its widely application.



Model QM3G-43FH
Display Dimension 134*102*34mm
Panel 4 wire resistive panel
Cutout size 120*94mm
I/O Input  8DI
High Speed Counter  6 channels 1 phase 60khz
Output  8DO
Type

Transistor

High Speed Pulse 8 axis, Y0-Y3 100KHZ, Y4-Y7 10KHZ

Analog I/O

4AI/2AO
AI type (optional)

Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ /

PT100/ PT1000/

NTC10K/ NTC50K/ NTC100K/

0~10V/ 0~5V/

0~20mA/ 4~20mA/ mixed

AO type (optional) 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed
High-speed function High-speed counting

Single phase 6 channel 60KHz

High-speed pulse

8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

High-speed counting + high-speed pulse < 480KHz

Software HMI  mView
  PLC  GX WORKS2
