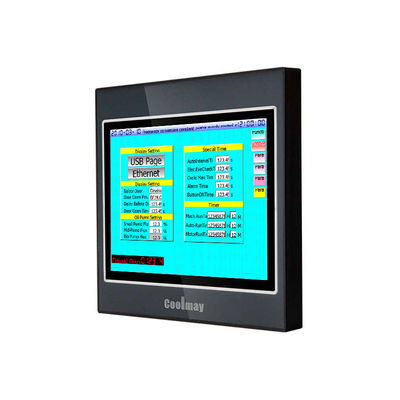

HMI Control Panel 64MB RAM 32bit CPU 408MHz CPU Free Port Protocol
| Place of Origin | China |
|---|---|
| Brand Name | Coolmay |
| Certification | CE Certificate |
| Model Number | TK6037FH |
| Minimum Order Quantity | 1 Unit |
| Price | Details Need To Be Negotiated |
| Packaging Details | Carton packaging / Wooden box packaging |
| Delivery Time | 5-8 Work Days After Payment Confirmed |
| Payment Terms | TT,Paypal, Western Union, Credit Card |
| Supply Ability | 100,000 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Size | 73*56mm | Cutout Size | 72*72mm |
|---|---|---|---|
| Resolution | 320*240 Pixels | Brightness | 300 Cd/m² |
| Backlight Time | 60,000 Hours | Display Color | 65536 Colors |
| Highlight | 408MHz CPU HMI Control Panel,64MB RAM HMI Control Panel,32bit CPU HMI Control Panel |
||
Product Description
TK series HMI applied Coolmay software “mView”. “mView” is a set of stable and reliable human machine interface programming software for industrial occasions. Independent and original system design, running speed increased by 200%, memory usage reduced by 50%.
It supports many communication protocols and can communicate with more than 200 PLC and controllers on the market.
Parameter:
|
SPECS |
Dimension |
88*88*25mm |
|
|
Cutout size |
72*72mm |
|
Display size |
73*56mm |
|
|
Weight |
Appox. 0.3 kg |
|
|
DISPLAY |
Display |
3.5" TFT |
|
|
Resolution |
320*240 pixels |
|
Brightness |
300 cd/m² |
|
|
Contrast ratio |
400:01:00 |
|
|
Backlight |
LED |
|
|
Backlight time |
60,000 hours |
|
|
Display color |
65536 colors |
|
|
Touch type |
4-wire resistive panel |
|
|
STORAGE |
ROM |
NOR Flash 8MB |
|
|
RAM |
64MB |
|
CPU |
32bit CPU 408MHz |
|
|

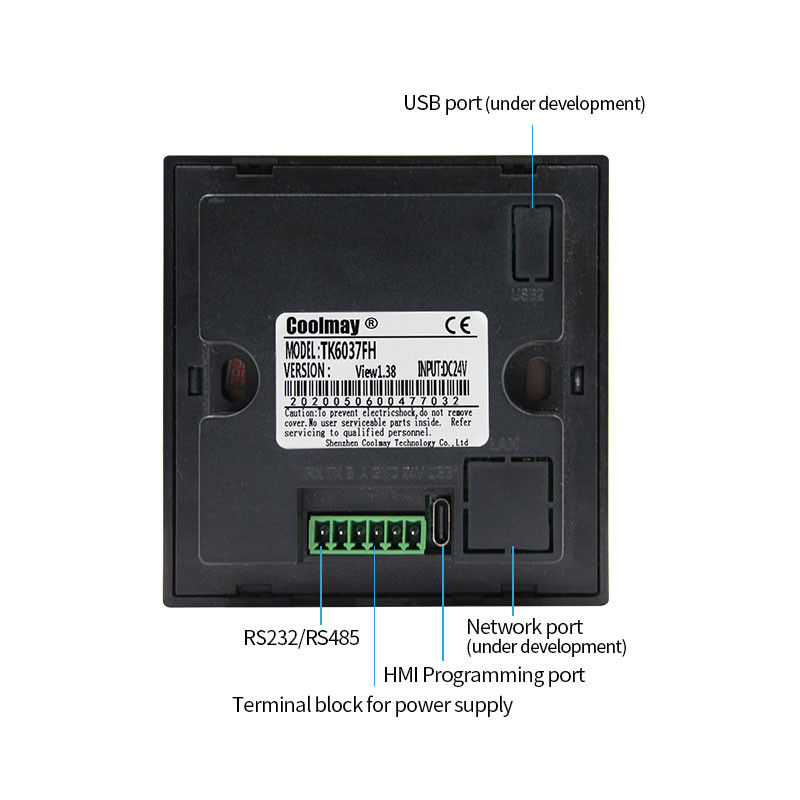

INTERFACE |
Download port |
Type-C, RS232, RS485 |
|
|
COM port |
1 RS232, 1 RS485 |
|
Optional |
NULL |
|
|
Protocol |
Support MODBUS, free port and common PLC communication Protocol |
|
|
OTHER |
Calendar |
Yes |
|
|
Input Voltage |
12-24VDC±10%<150mA @ 24VDC |
|
Consumption |
42mA/24V |
|
|
Protection Class |
IP65 (front panel) |
|
|
Temperature |
Ambient environment: 0～50℃ Storage environment: -20～70℃ |
|
|
Humidity |
20%～90% RH |
|
|
Certification |
CE |
|
|
Software
|
CoolMay mView HMI programming software |
|
|
Detailed info. refer to CoolMay TK HMI User Manual |
Hardware requirements:
The basic hardware requirements for installing mView editing software are as follows:
-
Personal computer host: It is recommended to use a CPU of 80486 or higher.
-
Memory: It is recommended to use more than 128MB RAM to expand the memory.
-
Hard disk: The hard disk must have more than 100MB of space.
-
Display: General VGA or SVGA display card.
-
Mouse: Use a Windows compatible mouse.
-
Printer: Use a Windows compatible printer.
Before you install it, please check whether the computer hardware is as above or higher. In order to avoid problems with hardware incompatibility, please use the recommended specifications as much as possible. If you have any questions, please contact our customer service.
