Coolmay EX3U Series 7 Inch HMI PLC All-In-One Controller with 24DI/20DO and RS232 RS485 Communication
| Brand Name: | Coolmay |
| Model Number: | EX3U-8070H-44MT |
| MOQ: | 2 |
| Price: | US$129~499 per unit |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100,000 pcs per month |
Detail Information
Place of Origin:
China
Certification:
CE
DI/DO:
24DI/20DO
Analog Points:
Maximum12AI/8AO
Communication Interface:
RS232, RS485，OptionalCANport(2.0A/B),Ethernetport (cannotcoexistwiththeHMI Ethernetport);OptionalWIFI(willoccupythe HMIdownloadport)
High Speed Pulse:
Support
Dimension:
200*146*36mm
Cut-out Size:
192*138mm
Type:
7" TFT
Resolution:
1024*600
PLC Programming Software:
Coolmay VTool Pro
Packaging Details:
Packed with standard carton box
Supply Ability:
100,000 pcs per month
Highlight:
7 inch HMI PLC temperature control
,industrial automation HMI PLC with RS485
,integrated HMI PLC with 24DI 20DO
Product Description

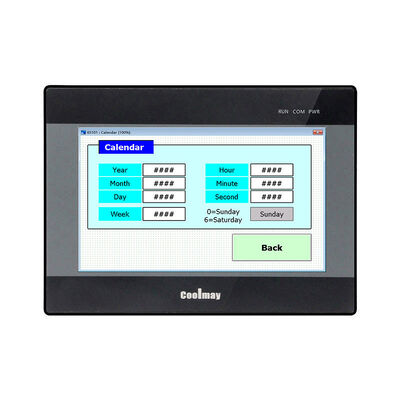

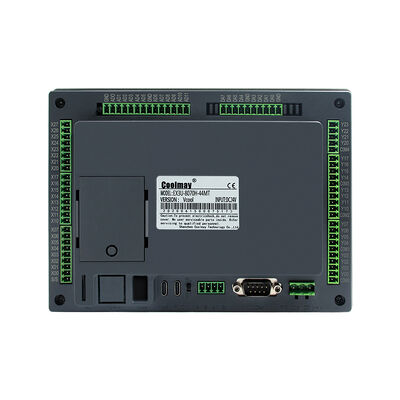

Coolmay EX3U Series 7 Inch HMI PLC All-In-One Controller EX3U-8070H-44MT
Technical Specifications
| Parameter | Description |
|---|---|
| Model | EX3U-8070H-44MT |
| Maximum I/O Points | 24DI / 20DO |
| Display Size | 7 inch |
| Power consumption | 6-7W |
| CPU | Dual-core1GHz |
| RAM | 256MB |
| ROM | NANDFlash256MB |
Product Features
- High-Performance Dual Processor
32-bit CPU + ASIC dual processor, with online monitoring/download support and instruction execution speed as fast as 0.24μs. - Highly Integrated Design
Supports up to 30 digital inputs, 28 digital outputs, and 12 analog inputs + 8 analog outputs. Digital outputs can be transistor, relay, or mixed. Built-in PLC and HMI programming ports, with 1 RS232 + 1 RS485 by default. - Powerful Programming Capability
Supports up to 30K program steps and 12K retentive registers, with Instruction, Ladder Diagram (LD), and Sequential Function Chart (SFC) programming. - Multiple Interrupt Functions
Supports input, timer, communication, high-speed counter, and high-speed pulse output interrupts. - CAN Bus & Motion Control
Supports CAN bus communication and CANopen protocol for servo motion control and controller communication. - Enhanced Security Protection
HMI and PLC can be encrypted separately. PLC password protection can completely prevent unauthorized program reading.

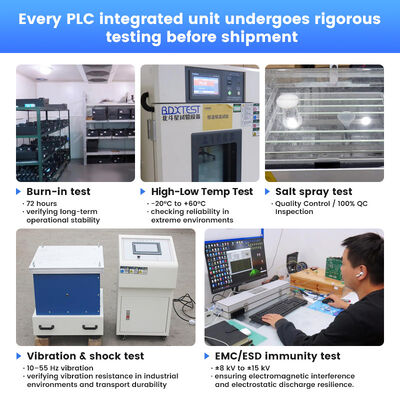

Certifications & Quality Standards
Coolmay products are fully compliant with CE and RoHS regulations and manufactured under ISO 9001-certified quality management systems.
