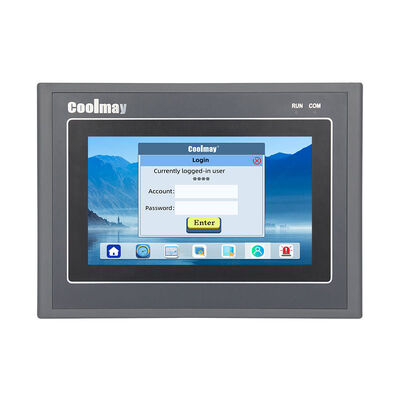

Coolmay 7.0" TFT Resistive Touch Screen HMI PLC Combo with Max 30DI/30DO and 60KHz High-Speed Counting for Industrial Automation
| Brand Name: | Coolmay |
| Model Number: | QM3G-70KFH |
| MOQ: | 1 peice |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 15000 Units Per Week |
Hmi Plc All In One
,7.0” tft Plc Touch Screen
,coolmay plc hmi combo

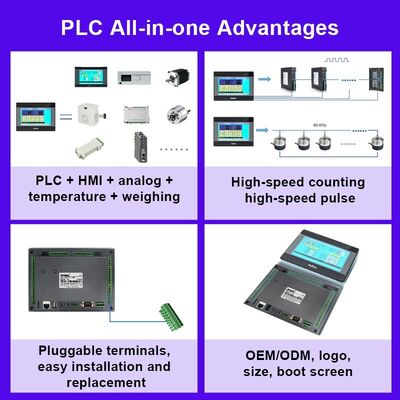

This all-in-one solution integrates the controller, operation interface, input/output, analog input/output, high-speed counting/pulse and communication ports into a compact unit designed for industrial automation control applications.
- Compatible with FX3G/FX3U/FX3S PLC for fast operation
- Up to 30 digital inputs/30 digital outputs, 16 analog inputs/8 analog outputs
- Default 2 PLC programming ports, 1 HMI download port
- Supports optional RS485, CAN, WiFi, and network ports
- Multi-channel high-speed counting and pulse functions
| Display | 7.0" 60K-color resistive touch screen, supports portrait display |
|---|---|
| Dimensions | 226×163×35.6mm (Cutout: 217×154mm) |
| Power Consumption | 6-7W |
| Memory | RAM: 64MB, ROM: NOR Flash 16MB |
| CPU | 32-bit CPU 408MHz |
| I/O Capacity | Max 30DI/30DO (max 28MR) |
| Digital I/O | Input: Passive NPN, public terminal isolated Output: Relay (max 5A) or transistor (max 500mA) or mixed |
| Analog I/O (Optional) | Max 12AI/8AO AI types: Thermocouple E/K/S/T/J, PT100, PT1000, NTC AO types: 0-10V, 0-5V, 0-20mA, 4-20mA, ±5V, ±10V |
| High-Speed Functions | Counting: 6 channels at 60KHz Pulse: 8 channels (Y0-Y3: 100KHz, Y4-Y7: 10KHz) |

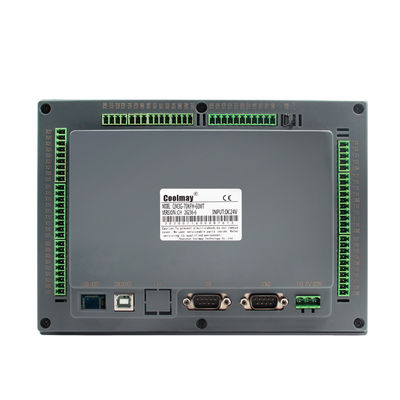

| Communication Ports | HMI: Type-B download port, RS232, RS485 PLC: Mini USB, RS232, RS485, CAN, Ethernet, WiFi |
| Software Compatibility | HMI: Coolmay mView Programming Software PLC: Compatible with Mitsubishi GX Developer 8.86 and WORKS 2 |
Yes, we provide warranty on all goods.
We have been in this field for over 12 years. Our engineers provide technical advice and problem-solving assistance.
We maintain large warehouse inventories to ensure fast delivery.
We offer flexible order quantities depending on your specific requirements.
Founded in March 2006, Coolmay is a premier brand in industrial automation, serving over 10,000 customers across 200+ countries. Our team of 200+ global professionals, including 40+ R&D specialists, has completed 55,000+ projects and secured 60+ intellectual property rights. We deliver advanced, reliable solutions including PLC, HMI+PLC all-in-one machines, HMI, power supply, servo drives, stepper drives, VFDs, and IoT modules engineered for precision and efficiency in smart manufacturing.
Coolmay products are fully compliant with CE and RoHS regulations, and are manufactured under ISO 9001-certified quality management systems.
18-Month Manufacturer Warranty: Covers hardware defects and system malfunctions under normal use.
Lifetime Technical Support: Remote assistance available for configuration, firmware, and integration.
Returns & Exchanges: For damaged shipments, contact us within 3 days with photo evidence.
We accept various secure payment methods including Western Union, WeChat, AliPay, PayPal, and international bank transfers (T/T). All transactions are protected under AliExpress Buyer Protection.
WhatsApp: +86 199-2529-1353
WeChat: +86 199-2529-1353
Feel free to reach out for support, documentation, or firmware files. We respond within 24 hours.
-
Dgood product！
