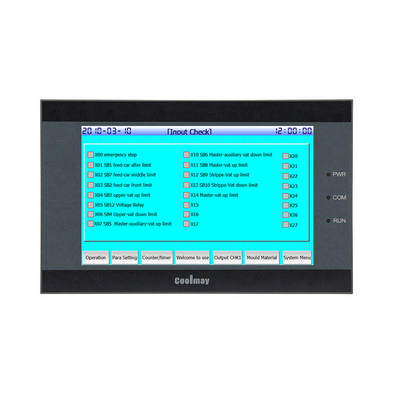

5 Inch Touch Screen HMI PLC Combo 32 Bit HMI PLC Controller Max 4AI/2AO
| Brand Name: | Coolmay |
| Model Number: | QM3G-50FH |
| MOQ: | 1 unit |
| Price: | Details Need To Be Negotiated |
| Payment Terms: | T/T,Paypal,Western Union,Credit Card |
| Supply Ability: | 1500 pcs per week |
Detail Information
Place of Origin:
China
Certification:
CE
Size:
5"
Digital Points:
Max 12DI/12DO
Analog Points （Optional）:
Max 4AI/2AO
Digital Outputs:
Transistor Or Relay Or Mixed
High Speed Pulse:
Support
High Speed Counting:
Support
Packaging Details:
Carton
Supply Ability:
1500 pcs per week
Highlight:
Touch Screen HMI PLC Combo
,32 Bit HMI PLC Controller
,Max 4AI/2AO HMI PLC Controller
Product Description
5 Inch Touch Screen HMI PLC Combo 32 Bit HMI PLC Controller HMI Plc All In One
Quick Detail:
- Integrated PLC,HMl,digital I/O(DW/DO), analog I/O(AD/DA), high speed functions,etc..
- Compatible with FX3G/FX3U/FX3S PLC,fast operation.
- Up to 12DI/12DO, 4AD/2DA
- Default 2 PLC programming ports, 1 HMl download port.
- Supports optional one or two Rs485, CAN, WIFl, network port on PLC, and supports optional Rs232,Rs485,network port (under development)on HMI.
- Supports multi-channel high speed count and pulse functions.
HMI part
size of HMI: 5 inch
cutout size: 143*86mm
Resoution:800*480
RAM:NOR Flash 8MB
ROM:64MB
CPU:32bit CPU 408MHz
com ports:1*type C download port, 1*RS232
Software: mView software
PLC part
Digital I/O: Max 12DI/12DO
I/O level: default NPN input and output, MR can be customized PNP input PNP output, MT can be customized PNP input and NPN output
DO type: transistor(MT) or relay(MR) or mixed(MRT)
Analog I/O(optional): max 4AI/2AO
AI(Optional):
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed
AO(Optional):
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/-5~5V/ -10~10V (2AO for 1 minus voltage)
com port:1*mini USB,1*RS485,1*RS232
software: WORKS 2/ GX developer 8.86
We are committed to providing you with a variety of solutions (Communication Port, Analog, Temperature,Weighing, etc.)
|
Model
|
QM3G-50FH
|
|
Dimension
|
150*96*36mm
|
|
Cutout size
|
143*86mm
|
|
Power
Consumption
|
5-7W
|
| HMI | |
|
Feature
|
60K-color resistive touch screen, supports portrait display
|
|
Type
|
5.0"TFT
|
|
Display size
|
108*65mm
|
|
Resolution
(pixels)
|
800*480
|
|
RAM
|
NOR Flash 8MB
|
|
ROM
|
64MB |
| CPU |
32bit CPU 408MHz
|
|
Default
|
Type-C HMI download port (can download PLC program through the USB penetrating function),RS232port
|
| software |
mView Software
|
| PLC | |
|
I/O
|
Max 12DI/12DO
|
|
I/O level
|
Input: Passive NPN, public terminal isolated
Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact
|
|
DO type
|
Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT)
(Relay output: max load 5A/ transistor output: max load 500mA)
|
|
High-speed
counting
|
Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,
or 2 ABZ 60KHz + 1 AB phase 10 KHz
|
|
High-speed pulse
|
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.
High-speed counting + high-speed pulse < 480KHz
|
|
Default
programming port
|
1*Type C port, 1 RS232
|
| Optional COM port | 1 RS485 or 2 RS485 COM ports (one is changed from the default RS232 port) |
|
Analog I/O
(optional)
|
Max 4AI/2AO
|
|
AI type (optional)
|
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed
|
|
AO type (optional)
|
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/
|
|
Software
|
Compatible with Mitsubishi GX Developer 8.86 and WORKS 2
|

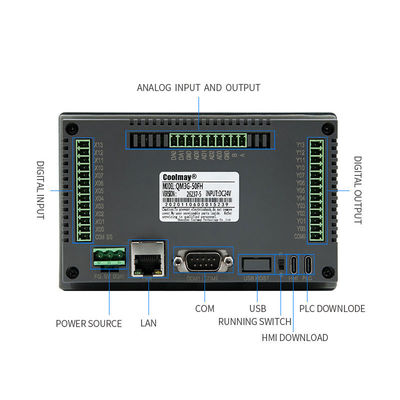

Detail Com Ports:
