7 Inch HMI Plc Controller EX3G-8070H-44MT Integrated HMI PLC Combo Controller
| Brand Name: | Coolmay |
| Model Number: | QM3G-70FH-44MT-4P4P0-485P |
| MOQ: | 2 units |
| Price: | US$129~299 per unit |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100,000 pcs per month |
PLC Controller 7 Inch
,HMI PLC Combo For Servo Motor
,Integrated HMI PLC Combo

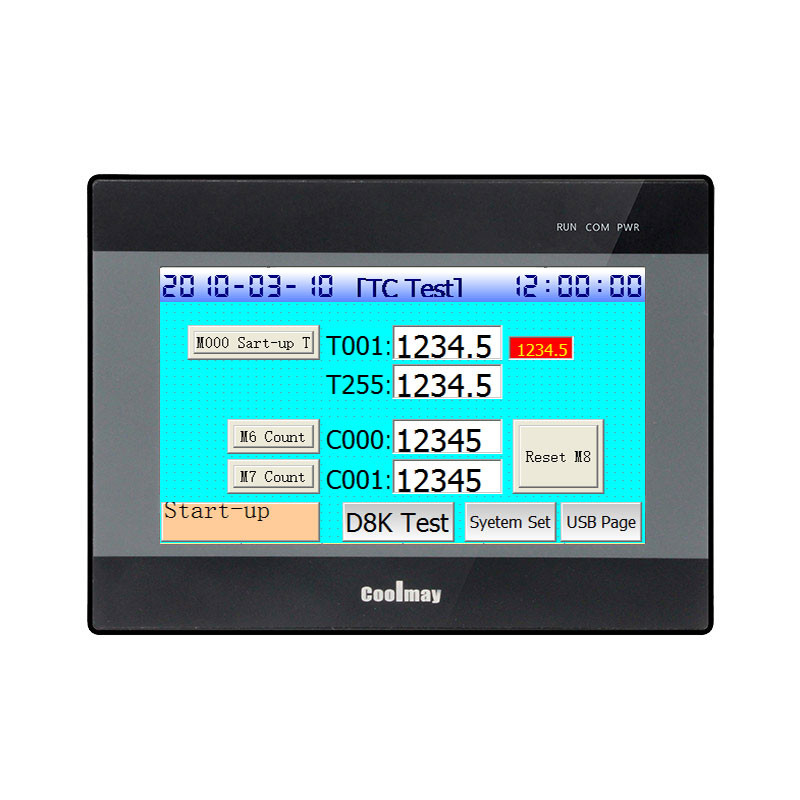

7 Inch HMI Plc Controller EX3G-8070H-44MT Integrated HMI PLC Combo Controller
EX3G-80 HMI PLC combo series are powerful programmable controllers with incredible HMI features, backed by the most efficient programming software mView. It is superbly compact, 4.3", 5″, 7” or 10.1″ are highly compact controllers, where the PLC, HMI, and I/Os are built into a single unit and in a range of built-in I/O configurations.
Features
Built-in, high-quality 4.3", 5″, 7” or 10.1″ HMI touch panel
Powerful PLC: 32,000 steps program, support PID automation
Built-in COM ports: RS232, RS485, USB type C, Ethernet (optional)
Support high-speed counting, high-speed pulse, communication port integrated
Support arc and linear interpolation
Specifications
Model | EX3G-8070H-44MT-4P4P0-485P | |
Display | Dimension | 200*146*36mm |
Cutout size | 192*138mm | |
Power Consumption | 6-7W | |
Feature | 60K-color resistive touch screen, supports portrait display | |
Memory | RAM | 128MB |
ROM | NAND Flash 128MB | |
CPU | 1GMHz | |
I/O | DI/DO | 24DI/20DO, transistor outputs, NPN input |
High-speed function | High-speed counting | Single phase 6 channel 60KHz |
High-speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. | |

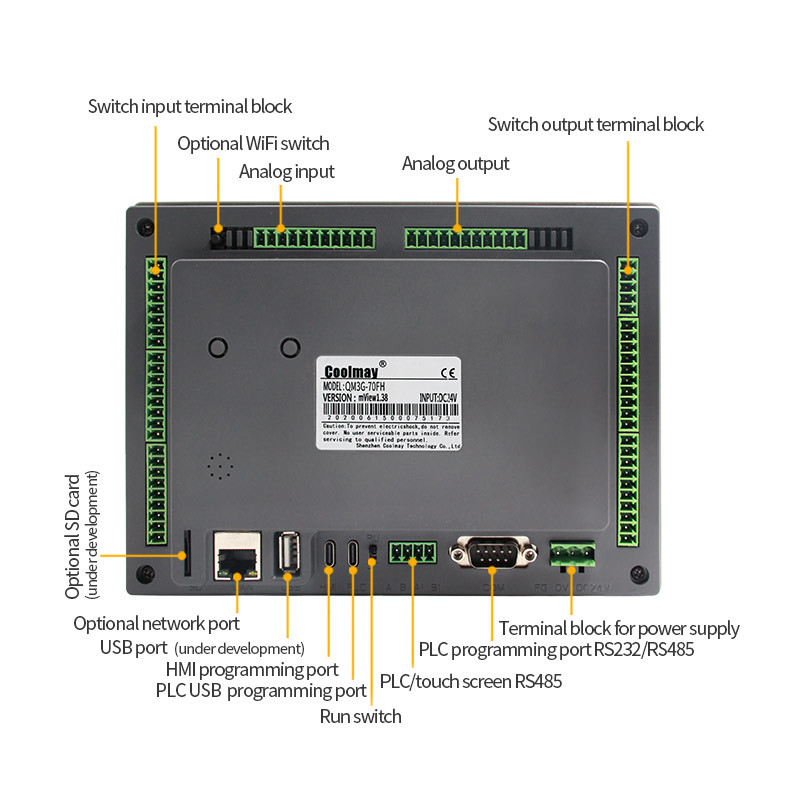

Connection | HMI | Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port |
PLC | 1 TYPE-C, 1 RS232 (program port), 1 RS485 communication port | |
Software | HMI | Coolmay VCOOL HMI Programming Software |
PLC | Compatible with Mitsubishi GX Developer 8.86 and WORKS 2 | |
Positioning control——high-speed pulse
Transistor output CPU: conventional 8-axis, YO-Y3 is 100KHz,Y4-Y7 is 10KHz
Support positioning, can quickly complete the positioning function, up to 8 axies
Each axis control is realized by instructions, PLC program is highly readable and easy to maintain
Short time to download program
Based on Tycpe-C/Type-B port, mini USB port, program download is quick and time-savingThe USB interface conforms to the USB specification and uses a commerciallyavailable USB cable, which can perform high-speed data transmission and greatlyshorten the download time.
Through the USB penetration function of the touch screen,HMl and PLC program-ming use the same programming cable, users do not need to change repeatedly, allonly need one cable.
Applications
Hot air sealing machine
Process flow diagram
-
