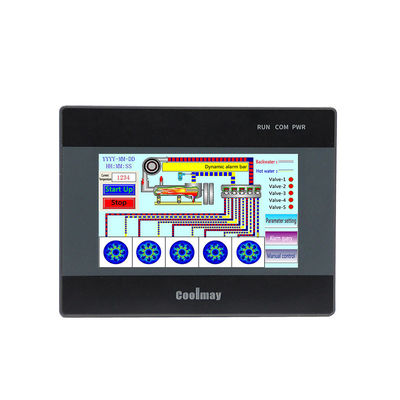

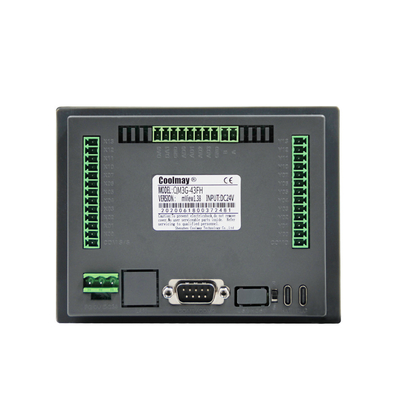

Integrated HMI PLC 12DI 12DO Works 2 Programming Software With 6 High-Speed Counts And 8 High-Speed Pulses

Place of Origin Shenzhen
Brand Name Coolmay
Certification CE
Model Number QM3G-43FH-24MT
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Packed with standard carton box
Delivery Time 3-8 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 100,000 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
DI/DO 12DI/12DO Analog I/O 2AI 0AO
High-speed Counting Single Phase 6 Channel 60KHz, Or 2 AB 60KHz + 1 AB 10KHz, Or 2 ABZ 60KHz + 1 AB Phase 10 KHz High-speed Pulse 8 Channels, Y0-Y3 Is 100KHz, Y4-Y7 Is 10KHz. High-speed Counting + High-speed Pulse < 480KHz
HMI Software Coolmay MView HMI Programming Software PLC Software Compatible With Mitsubishi GX Developer 8.86 And WORKS 2
High Light

12DI Integrated HMI PLC


12DO Integrated HMI PLC


2 Programming Software Integrated HMI PLC

Leave a Message
Product Description

Integrated HMI PLC 12DI 12DO Works 2 Programming Software

With 6 High-Speed Counts And 8 High-Speed Pulses


Precautions for Coolmay PLC output type selection

MT: means transistor output, MR: means relay output, MRT: means relay transistor mixed output, the main difference between transistor output and relay output is:

  • The difference in current load. At present, the maximum current load of transistors we use is 500MA, and the maximum current load of relays is 5A. (EX2N(S)/DX2N(S) series single PLC's relay current maximum load is 3A);

  • Output power supply: The transistor can only be connected to DC24V power output, and the relay can be connected to DC24V AC220V power output;

  • Functional characteristics: If you need to send pulses with a stepper motor, you should choose transistor output or mixed output. If the output switching action is very frequent, it is recommended to use transistor output;

  • If both the relay and the transistor can be used, it is recommended to use the transistor output, because the transistor has no contact life limit, as long as the current does not exceed the limit, the service life will be longer than the relay.Integrated HMI PLC 12DI 12DO Works 2 Programming Software With 6 High-Speed Counts And 8 High-Speed Pulses 0





Cutout size





60K-color resistive touch screen, supports portrait display





NOR Flash 8MB


32bit CPU 408MHz



Max 12DI/12DO

DI/DO level

Input: Passive NPN, public terminal isolated

Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact

DO type and load

Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM.

Analog I/O


Max 4AI/2AO

AI type (optional)

Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/

0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed

AO type (optional)

0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed

High-speed function

High-speed counting

Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,

or 2 ABZ 60KHz + 1 AB phase 10 KHz

High-speed pulse

8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

High-speed counting + high-speed pulse < 480KHz



Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port



1 TYPE-C, 1 RS232 (program port)

1 RS485 or 2 RS485 COM ports (one of which is changed from the default RS232 port);

1 WIFI (occupy default RS232 port)



Coolmay mView HMI Programming Software


Compatible with Mitsubishi GX Developer 8.86 and WORKS 2


QM3G-FH PLC/HMI All-in-one Main Advantage:

◆Upper computer programming software compatible with Works 2/GX Developer8.86 (supports Ladder diagram and SFC language, does not support structured programming/labels).

◆Powerful, compatible with FX3G/FX3U/FX3S PLC, high processing speed.

◆Military level 32 bit CPU adopted, which is faster and more adapted to industrial environment of high electromagnetic interference.

◆Special encryption, prevent illegal reading thoroughly. 8-bit encryption, 12345678 as password can thoroughly prevent reading of ladder logic program.

◆Clock supported, rechargeable battery adopted.

◆Default with 1 HMI download port, 2 PLC programming ports (RS232/MiniB USB port or Type-C), and one USB port.

◆Support Mitsubishi programming protocol/MODBUS protocol/RS protocol/BD board protocol, easily realize PLC interconnection and communication with external devices.

◆High-speed counting, conventionally single-phase 6 channels 60KHz or AB (Z) phase 2 channels 60KHz + AB phase 1 channel 10KHz. High-speed pulse, conventionally 8 channels: Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting+ High-speed pulse cannot exceed 480KHz; acceleration and deceleration are independent.
