Servo PLC All In One DC24V 16DI 16DO Built In Programmable Logic Controller PLC
| Brand Name: | COOLMAY |
| Model Number: | MX3G-C40 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | Western Union, T/T |
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE
Dimension (L*W*H):
160*135*42
I/O:
Fixed 16DI/16DO
I/O Level:
Input: Passive NPN, Common Terminal Connected To 24V+; Output MT: Low Level NPN, COM Connected To Negative
Communication Port:
Comes With 1 RS485
Packaging Details:
Carton packaging / Wooden box packaging
Highlight:
Servo PLC All In One
,16DI 16DO Servo PLC
,Servo Built In PLC
Product Description

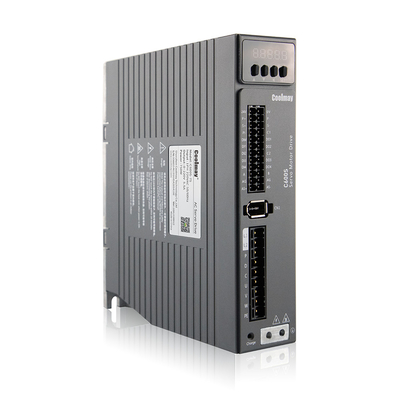

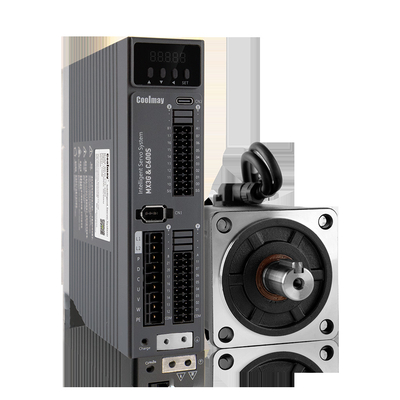

Servo PLC All In One DC24V 16DI 16DO Built In Programmable Logic Controller (PLC)
MX3G-C40/C75 servo integrated machine has the following features:-Integrated motion control,servo drive and PLC functions
- High speed DSP chip with high servo response and higher precision
- -Rich multi-functional ports, supporting common Yinand common Yang connection (no mixed connection) Support 17 bit single turnabsolute value encoder
- -l/o port,16 photoelectric isolation inpouts/16 photoelectric isolation outputs
- -The pulse module supports 5v and 24V independernt connection to effectively reduce signal interference
Feature
| Servo drive series | MX3G-C40/C75 series servo PLC all-in-one |
| lnput power supply | Main circuit power supply: single phase AC220V, voltage range 200v~240v, 50/60hz |
| PLC logic supply voltage | DC24V |
| Drive motor | straight line(DDL), torque (DDR), voice coil, brush and brushless servo motor |
| control model | Motion sequence, point-to-point, PVT, electronic gear, cam, position, speed, torque control mode |
| Encoder feedback | lncremental 17 bit 2500 line encoder |
| operating mode | lndependent programmable control (PLC), external control(step pulse, PWM,encoder a/b), or distributed network control (modbus/rs communication) |
| communication type | RS485(Support Modbus protocol and RS protocol) |
| Input / output signal |
16 photoelectrically isolated inputs 16 photoelectric isolation outputs, including three high-speed pulses; Programmable universal |
| Feedback |
Quadrature incremental encoder, maximum rate 5m line/s (20m after 4 times frequency) digital Hall (u, v, W,120 ° electrical phase difference) Back EMF Analog sine cosine encoder(sin/cos) optional resolver optional2nd encoder input or output (full closed loop control) |
| Rated power(KWw) | 0.4KW/0.75KW |
| Rated current(A) | 2.5A/3.0A |
| Rated current range of adaptive motor(a) | 2.0~3.0A/3.0~4.0A |
| Program capacity | 16k/ step |
