Coolmay PLC Programming Logic Controller 32DI 32DO Ethernet RS485 Port Ladder

Place of Origin China
Brand Name Coolmay
Certification CE, ISO
Model Number CX3G-64MR-485/485
Minimum Order Quantity 2 units
Price US$119~399 per unit
Packaging Details Packed with standard carton box
Delivery Time 3-5 working days
Payment Terms T/T, Western Union
Supply Ability 100,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product PLC I/O 32DI/32DO
Input 24VDC Output Relay Outputs
COM RS232, RS485 Software Compatible With GX Works 2
High Light

Ladder Coolmay PLC


32DI 32DO Coolmay PLC


RS485 Coolmay PLC

Leave a Message
Product Description

Coolmay PLC Programming Logic Controller 32DI 32DO Ethernet RS485 Port Ladder


A PROGRAMMABLE LOGIC CONTROLLER (PLC) is an industrial computer control system that continuously monitors the state of input devices and makes decisions based upon a custom program to control the state of output devices.


Coolmay PLC uses ladder langege. Ladder logic is graphical programming language. Initially programmed with simple contacts that simulated the opening and closing of relays, Ladder Logic programming has been expanded to include such functions as counters, timers, shift registers, and math operations.




Model CX3G-64MR-485/485
Dimension 290*90*36mm
Cutout size 282*99mm
Installation Fixed hole installation and DIN-Rail (35mm )
Digital I/O 32DI/32DO
DO type Relay

1 Mini type B USB programming port, 1 RS232 programming port

(Interface terminal is mouse female port with 8 holes), 2 RS485 COM ports

Software Compatible with WORKS 2

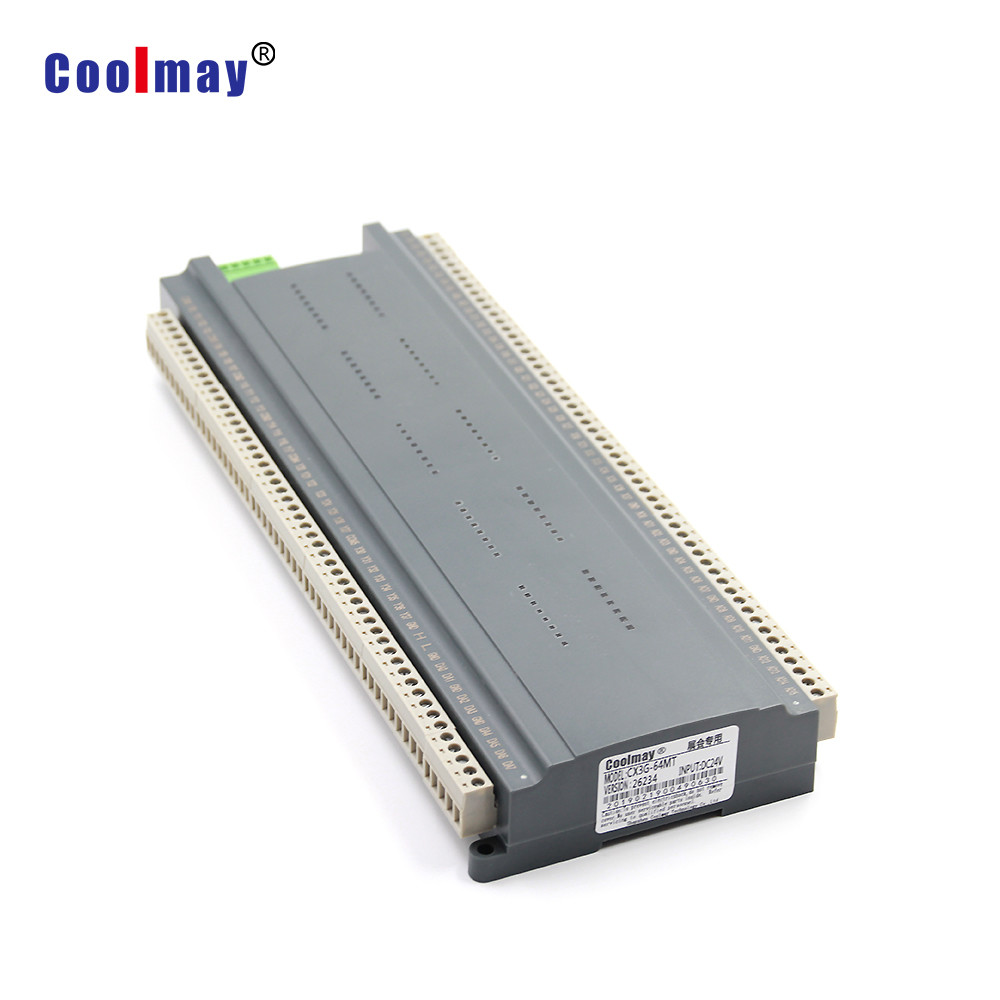

Coolmay PLC Programming Logic Controller 32DI 32DO Ethernet RS485 Port Ladder 0



  • Highly integration. Coolmay PLC integrated DI/DO, AI/AO, Ethernet function, communication into one small device.
  • Comes with 2 PLC programming ports: Mini typeB usb port (speed of reading and downloading is more faster)and RS 232(8-hole mouse head female seat), normally have 2 RS 485 ports, both RS 232 and CAN are optional.
  • Support special encryption.Setting 12345678 as password can thoroughly prevent the data from being read.(Attention:Only supports 8-bit password encryption)
  • 32K steps of program capacity, 32K power-failed holding registers
  • Support interrupting, linear arcinterpolation and PID auto-tuning.
  • Use 5.0mm pitch pluggable terminals for easy wiring, and use DlN rail (35mm wide) and mounting holes forinstalling.
  • Compatible with FX3G/FX2UFX3S series PLC, operation speed more fast.


Packing and Shipping

  • Lead time: 3 days for samples, 30~60 days for bulk order.
  • Packing: standard export carton 5 layers
  • Shipping: DHL/ UPS/ FedEx/ EMS, etc..



MOQ is 200 units. More details, please contact us personally.


Wiring with Coolmay MT HMI


Coolmay PLC Programming Logic Controller 32DI 32DO Ethernet RS485 Port Ladder 1
