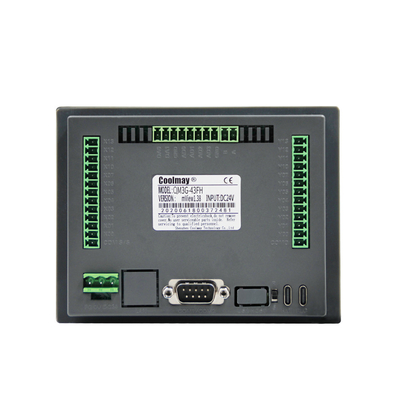

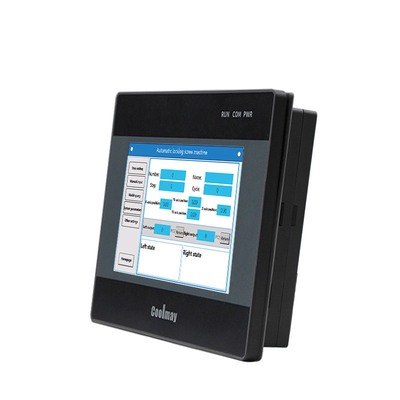

4.3 Inch HMI PLC Combo PLC Controller 24VDC 4AI 2AO COM WIFI For Injection Moulding Machine
| Brand Name: | Coolmay |
| Model Number: | QM3G-43FH |
| MOQ: | 1 PCS |
| Price: | Negotiable |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 15000 Units Per Week |
HMI PLC Combo PLC Controller
,Moulding Machine HMI PLC Combo
,4.3'' HMI PLC Controller
4.3 Inch HMI PLC COMBO Plc Controller 24VDC 4AI 2AO COM WIFI For Injection Moulding Machine
◆Compatible with the upper computer programming software of Works 2/GX Developer8.86 (supports ladder diagram and SFC language, does not support structured programming/label).
◆Powerful, compatible with FX3G/FX3U/FX3S PLC, fast processing speed.
◆Using military-grade 32-bit CPU, which is faster and more suitable for industrial environments with high electromagnetic interference.
◆Special encryption, completely prevent illegal reading. 8-bit encryption, 12345678 is the password, completely preventing the ladder logic program from being read.
◆Support clock and use rechargeable battery.
Parameter:
| Display | Dimension | 134*102*34mm |
| Cutout size | 120*94mm | |
| Type | 4.3" TFT | |
| Feature | 60K-color resistive touch screen, supports portrait display | |
| Memory | RAM | 64MB |
| ROM | NOR Flash 8MB | |
| CPU | 32bit CPU 408MHz | |
| I/O | DI/DO | Max 12DI/12DO |
| DI/DO level |
Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact |
|
| DO type and load | Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM. | |
|
Analog I/O (optional) |
Max 4AI/2AO | |
| AI type (optional) |
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed |
|
| AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed | |
| High-speed function | High-speed counting |
Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
| High-speed pulse |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
|
| Connection | HMI | Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port |
| / | ||
| PLC | 1 TYPE-C, 1 RS232 (program port) | |
|
1 RS485 or 2 RS485 COM ports (one of which is changed from the default RS232 port); 1 WIFI (occupy default RS232 port) |
||
| Software | HMI | Coolmay mView HMI Programming Software |
| PLC | Compatible with GX Developer 8.86 and WORKS 2 |
FAQ
1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design
and workers for produce and operate etc, we could support you one-stop products and service.
2) Do you have a CE certificate?
Yes for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western Union ect.
-
